Catron II, IV
Wireless Self-powered 2, 4 Button Switch
INSTALLATION AND QUICK START SHEET
WARNING AND GUIDELINES!!!
Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that
no parts should have been damaged during transit. Inspect to confirm. Any part
damaged or broken during or after assembly should be replaced.
WARNING: Risk of Product Damage
Do not disassemble the product
PRODUCT OVERVIEW

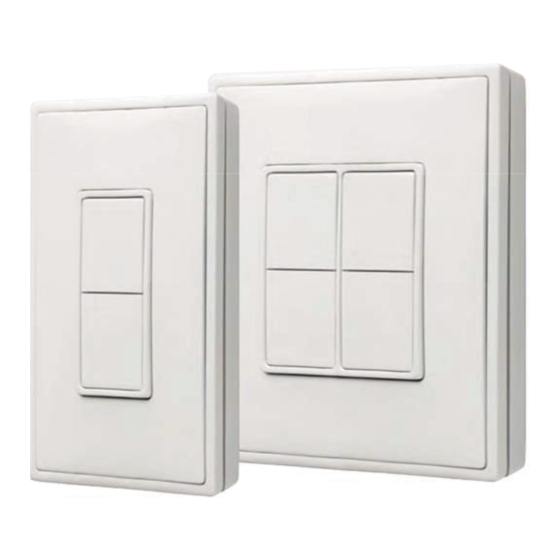

Catron IV is a wireless self-powered 4 button switch that controls ON/OFF, intensity, and correlated color temperature of an individual or group of luminaires.
Catron II is a wireless self-powered 2 button switch that provides similar capabilities.
They are part of Lumos Controls ecosystem, which includes controllers, sensors, switches, modules, drivers, gateways, and analytical dashboards.
CATRON II
INSTALLATION INSTRUCTIONS
Ensure optimal communications with other system components
Pick a convenient location, perhaps near a door where occupants enter and exit
Consider the construction materials in the space and remove the obstacles that may interfere with RF signals
INSTALLATION STEPS
Decide where you want to mount the rocker pad. The standard height for wall switches is 49" or 125 cm on center
Remove the wall plate from the rocker pad assembly
Decide which of the two installation options is appropriate
A. Surface Mounted Installation
Using a level and a pencil, lightly mark 2 small dots to align the top edge of the mounting plate.
I.
1I. Mark the mounting screw drill points.
CATRON IV
Specifications Value
Power Supply Electrodynamic harvesting
Operating Temperature -25 to 65°C (-13 to 149°F)
-25 to 65°C (-13 to 149°F )
Storage Temperature
Relative Humidity 0-95%
126 x 82 x 19mm
Single Rocker
(4.95 x 3.21 x 0.7in)
126 x 115 x 18mm
Double Rocker
(4.95 x 4.52 x 0.72in)
REQUIRED TOOLS & SUPPLIES
Catron II, IV Screwdriver
Remarks
_
_
_
Non-condensing
H x W x D
H x W x D
Wall plates
Screws
