PBI EM101 Series User Manual

Digital tv encoder modulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
Brighten Your Digital View!
EM101 Digital TV
Encoder Modulator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM101 Series and is the answer not in the manual?

Questions and answers

Related Manuals for PBI EM101 Series

Summary of Contents for PBI EM101 Series

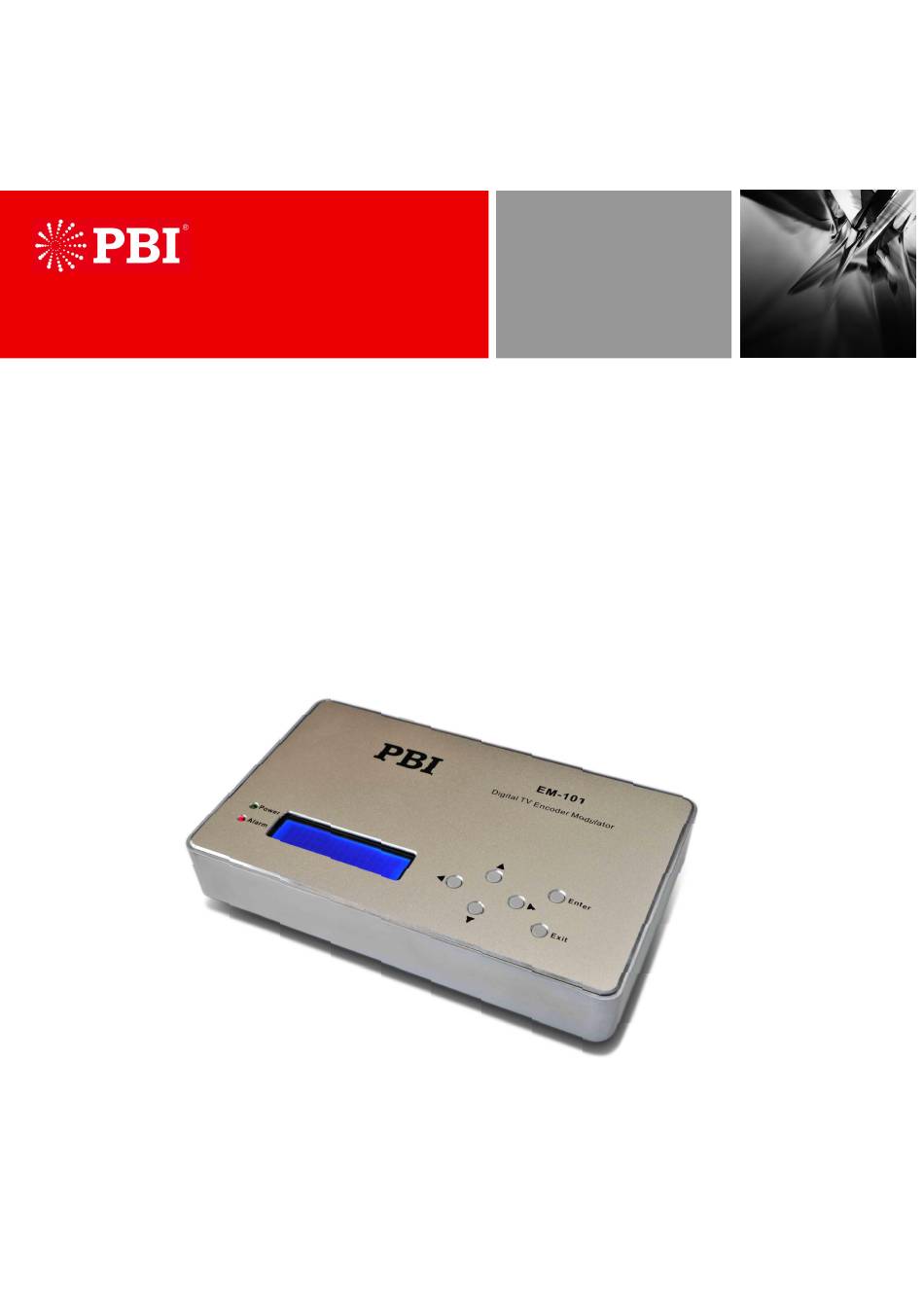

  • Page 1 User’s Manual Brighten Your Digital View! EM101 Digital TV Encoder Modulator...

  • Page 2: Table Of Contents

    Encoder & Modulator Series Contents Safety & Warnings 1. General Introduction 2. Features 3. Technical Specifications 4. Description of Panels 4.1 Front Panel 4.2 Rear Panel 5. Menu Structure & Operation 5.1 Status Menu 5.2 Config Menu 5.3 Quicksetup Menu 5.4 Software Version Menu 6.
  • Page 3 For your Safety This User Manual is written for the users of the EM-101 series to assist in installation and operation. Please read this user manual carefully before installation and use. Do not apply any power nor input/output cabling connection if this document in not fully read/understood or a visible damage is found on this device, including its accessories.

  • Page 4: General Introduction

    Encoder & Modulator Series EM-101 Digital TV Standalone Encoder & Modulator 1. General Introduction EM101x is an integrated base band TV signals to DVB-T/C digital RF TV signal conversion unit (Analog_to_Digital and RF output). Analog AV or digital HDMI base band signal can be encoded, multiplexed and modulated onto one DVB-T/C RF carrier.
  • Page 5 Table 1 EM101x Standard configuration EM101-T EM101-T+ EM101-C EM101-C+ DVB-T RF output ● ● DVB-C RF output CVBS input ● ● ● ● HDMI input ● ● ● ● HDMI loop output ● ● LCD&Keyboard ● ● ● ● H.264 HD/SD ●...

  • Page 6: Technical Specifications

    Encoder & Modulator Series 3. Technical Specifications Interface TS Processing -AV Input: CVBS, Audio_L/Audi0_R -PSI/SI: PAT, PMT, NIT, SDT and LCN auto generated -Connector type: phone jack for AV -HDMI: HDMI in*1 (SD or HD)(HDCP) and HDMI*1 Loop Out DVB-T Modulation (factory option) -LCD display: 2*16 characters -Constellation: QPSK/16QAM/64QAM -Keyboard: 6 keys...

  • Page 7: Description Of Panels

    4. Description of Panels 4.1 Front Panel A5-A10 POWER indicator for power on A2 ALARM indicator for Alarms, lighted when Alarm, warning or error occurred A3 LCD 2×16 character LCD Display [][][][] A5-A10 keys they are [ENTER] & [EXIT] [][][][] are used for menu navigation and parameters entry [ENTER] key is used for confirmation of operation, sub-menu entrance and...

  • Page 8: Menu Structure & Operation

    Encoder & Modulator Series 5. Menu Structure & operation C/E/InputSelect C/E/EncFormat C/E/EncVolume S/Error C/M/OutputFreq S/InputFormat Main Menu S/OutputRate C/M/OutputLevel C/M/Bandwidth S/OutputFreq Status C/Mn/PwrSave C/Mn/KeyLock C/A/Enable C/Enc C/A/ServiceID 、 C/A/ServiceName 、 C/Mod C/A/ONID C/A/TS ID C/Menu C/A/VideoPID C/A/AudioPID C/Andvance Config C/A/PCR PID C/A/LCN C/Save&Load C/A/GuardIntervl...
  • Page 9 Software Ver...
  • Page 10 Encoder & Modulator Series A 16x2 character LCD Display and 6 keys consist of the User Interface of Menu. When power on, string “Please wait...” will be shown on the LCD display on the top of the device. The initialization is taken place and no operation on the menu is accepted.After the initialization completed, The string “MainMenu”, the top layer menu, is shown on the LCD.Press [ENTER] key to enter next...
  • Page 11 5.2 Config There are six first-layer sub-menus under Config menu, they are listed below. All are prefixed with C/ stands for Config, their parental menu. Config C/Enc C/Mod C/Menu C/Advance C/Save&Load C/DefaultReset 5.2.1 C/Enc Second-layer menu for Encoder settings.There are three third-layer sub-menus under Config/Encoder menu, they are listed below.

  • Page 12: Config Menu

    Encoder & Modulator Series 5.2.2 C/Mod Second-layer menu for Modulator settings.There are three third-layer sub-menus under Config/Modulation/ menu, they are listed below. All are prefixed with C/M/ stands for Config/Modulation/, their parental menu. These third-layer menu C/M/OutputFreq, C/M/OutputLevel C/M/Bandwidth, for Output Frequency Setting, Output RF Level Setting and Modulation Bandwidth Setting, respectively.
  • Page 13 Importance note: There is no way to retrieve the password except factory work, please keep your password record carefully for retrieving the KeyLock. 5.2.4 C/Advance Second-layer menu for Advance settings.There are 17 third-layer sub-menus under Config/Advance/ menu, they are listed below. All are prefixed with C/A/ stands for Config/Advance, their parental menu.
  • Page 14 Encoder & Modulator Series 5.2.5 C/Save&Load Second-layer menu for Save_&_Load settings.There are 4 third-layer sub-menus under Config/Save&Load/ menu, they are listed below. All are prefixed with C/S&L/ stands for Config/Save&Load, their parental menu. These third-layer sub menu are C/S&L/Save, for Saving all settings to one of 64 internal registers ( 1 to 64 ), C/S&L/Load, for Loading all settings from one of 64 internal registers ( 1 to 64 ), C/S&L/PresetNTSC,for Preset all registers with NTSC-like settings (6MHz channel...
  • Page 15 Table 3. 5.2.6 C/DefaultReset Second-layer menu for factory default settings. C/DefaultReset：Press [ENTER] to retrieve all settings from the factory default values,or press [EXIT] to discard. All settings after C/DefaultReset done, please refer to Table 2 above. Note: All contents of Save_&_Load registers and the setting of KeyLock ( On or Off ) remain unchanged after calling DefaultReset.

  • Page 16: Accessories

    Encoder & Modulator Series according to the particular channel number set on the QuickSetup menu. These unique settings are essential for most of STB or DTV, especially many devices are combined to form a multi-service system. Use [][] to roll the sub-menu under Q/ menu and press [ENTER] to enter the one selected.
  • Page 17 台灣有線電視頻道表...
  • Page 18 Encoder & Modulator Series 頻 道 編 號 視 頻 載 波 頻 道(Mhz) 傳統頻 ＧＩ ＥＩＡ ＳＴＤ ＨＲＣ ＩＲＣ 道編號 72.0036 73.2625 4+ , A-8 55.2500 54.0027 55.2625 61.2500 60.0030 61.2625 67.2500 66.0033 67.2625 77.2500 83.2500 78.0039 79.2625 84.0042 85.2625 175.2500 174.0087...
  • Page 19 傳統頻道 頻 道 編 號 視 頻 載 波 頻 道 編 號 ＧＩ ＥＩＡ ＳＴＤ ＨＲＣ ＩＲＣ 259.2625 258.0129 259.2625 265.2625 264.0135 265.2625 271.2625 270.0135 271.2625 277.2625 276.0138 277.2625 283.2625 282.0141 283.2625 289.2625 288.0144 289.2625 295.2625 294.0147 295.2625 301.2625 300.0150 301.2625 307.2625...
  • Page 20 Encoder & Modulator Series 頻 道 編 號 視 頻 載 波 頻 道 傳統頻 ＧＩ ＥＩＡ ＳＴＤ ＨＲＣ ＩＲＣ 道編號 457.2500 456.0228 457.2625 463.2500 462.0231 463.2625 469.2500 468.0234 469.2625 475.2500 474.0237 475.2625 481.2500 480.0240 481.2625 487.2500 486.0243 487.2625 493.2500 192.0246 493.2625 499.2500...
  • Page 21 頻 道 編 號 視 頻 載 波 頻 道 傳統頻 97.2500 96.0048 97.2625 103.2500 102.0051 103.2625 頻 道 編 號 視 頻 載 波 頻 道 傳統頻 ＧＩ ＥＩＡ ＳＴＤ ＨＲＣ ＩＲＣ 道編號 109.2750* 108.0250 109.2750* 115.2750* 114.0250 115.2750* 649.2500 648.0324 649.2625...
  • Page 22 Encoder & Modulator Series UHF36 中部地區 UHF34 南部地區 UHF35 花蓮地區 UHF33 蘭陽台東地區 UHF39 UHF41 UHF37 UHF34 澎湖地區 UHF48 UHF44 UHF46 UHF35 基隆地區 UHF48 UHF44 UHF46 33OR35 新竹地區 UHF48 UHF44 UHF46 UHF36 南投地區 註１.強場區，可以 VHF/HI 之八木天線接收，並以變頻處理 器，將接收信號改變，如７， ９，１１改為８，１０，１２，以避免同頻干擾,原接收頻道應避免播放。 註２.接收困難區應以較佳指向性之單頻天線接收，並加前置濾波及放大 處理。 註３.接收UHF 轉播站之信號，應將之變頻至CATV 頻段。 註４.教育台也應變頻至...
  • Page 23 60-66 61.25 64.83 65.75 66-72 67.25 70.83 71.75 76-82 77.25 80.83 81.75 82-88 83.25 86.83 87.75 VHF 高頻段 174-180 175.25 178.83 179.75 180-186 181.25 184.83 185.75 186-192 187.25 190.83 191.75 192-198 193.25 196.83 197.75 198-204 199.25 202.83 203.75 204-210 205.25 208.83 209.75 210-216...
  • Page 24 Encoder & Modulator Series 506-512 507.25 510.83 511.75 512-518 513.25 516.83 517.75 518-524 519.25 522.83 523.75 524-530 525.25 528.83 529.75 530-536 531.25 534.83 535.75 536-542 537.25 540.83 541.75 542-548 543.25 546.83 547.75 548-554 549.25 552.83 553.75 554-560 555.25 558.83 559.75 560-566 561.25 564.83...
  • Page 25 602-608 603.25 606.83 607.75 608-614 609.25 612.83 613.75 614-620 615.25 618.83 619.75 620-626 621.25 624.83 625.75 626-632 627.25 630.83 631.75 632-638 633.25 636.83 637.75 638-644 639.25 642.83 643.75 644-650 645.25 648.83 649.75 650-656 651.25 654.83 655.75 656-662 657.25 660.83 661.75 622-668 663.25 666.83...
  • Page 26 Encoder & Modulator Series 716-722 717.25 720.83 721.75 722-728 723.25 726.83 727.75 728-734 729.25 732.83 733.75 734-740 735.25 738.83 739.75 頻寬 頻道 視頻 色訊 音頻 （MHZ） 740-746 741.25 744.83 745.75 746-752 747.25 750.83 751.75 752-758 753.25 756.83 757.75 758-764 759.25 762.83 763.75 764-760...
  • Page 27 831.25 834.83 835.75 836-842 837.25 840.83 841.75 842-848 843.25 846.83 847.75 848-854 849.25 852.83 853.75 854-860 855.25 858.83 859.75 860-866 861.25 864.83 865.75 866-872 867.25 870.83 871.75 872-878 873.25 876.83 877.75 878-884 879.25 882.83 883.75 884-890 885.25 888.83 889.75 www.pbi-china.com...
