PBI DMM-1701IM User Manual

Twin ip to analog trans-modulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Twin IP to Analog Trans-modulator
User Manual
http://www.pbi-china.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMM-1701IM and is the answer not in the manual?

Questions and answers

Related Manuals for PBI DMM-1701IM

Summary of Contents for PBI DMM-1701IM

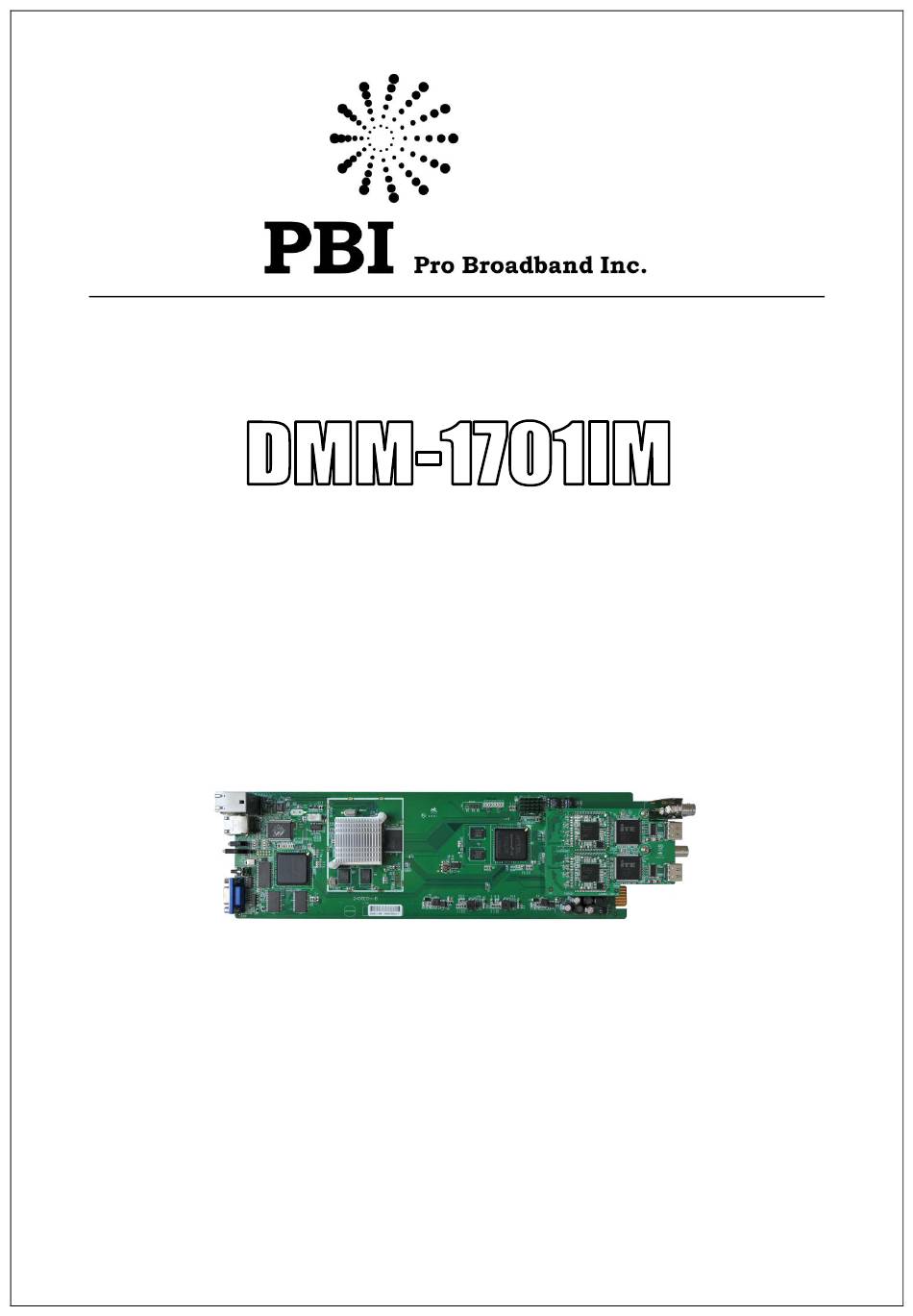

  • Page 1 Twin IP to Analog Trans-modulator User Manual http://www.pbi-china.com...

  • Page 2: Table Of Contents

    Contents Notices ........................1 1 Overview ......................... 4 2 Features........................4 3 Technical Specifications ..................4 4 Order Information ....................6 5 Front panel and rear panel instructions ..............6 5.1 Front panel ....................6 5.2 Rear panel ....................7 6 Menu Operating Instructions Via DMM-1000CU .............

  • Page 3: Notices

    1701IM Notices COPYRIGHT (Copyright © 2012 Beijing Jaeger Communication Electronic Technology Co., Ltd.) Not to be copied, used or translated in part or whole without Beijing Jaeger prior consent in writing except approval of ownership of copyright and copyright law. WARRANTY This warranty does not cover parts which may become defective due to misuse of the information contained in this manual.
  • Page 4 1701IM POWER SOURCES • The product is not disconnected from the AC power source (mains) as long as it is connected to the power outlet or wall socket, even if the product is turned off. • If the product will not be used for a long period of time, disconnect it from the AC power outlet or wall socket.
  • Page 5 1701IM Before Using the Device Thank you for purchasing the DMM-1701IM twin IP to analog trans-modulator. This User Manual is written for operators/users of the DMM-1701IM to assist in installation and operation. Please read this user manual carefully before installation and use of the device.

  • Page 6: Overview

    1701IM 1. Overview DMM-1701IM is a high performance twin IP to analog trans-modulator, it supports MPEG-2\H.264 digital signal decoding with HD\SD definition. With 2 independent IP interface, it can receive 2 IP multicast/unicast, and trans-modulate 2 programs by built-in modulators, then outputs a combined signal via RF output port.
  • Page 7 1701IM Video modulation depth 85%~87.5% ≤2dB Video in-band flatness ≤7% Differential Gain ≤5° Differential Phase ≥45dB Video SN Ratio Chrominance/Brightness ≤45nS Delay Differential ≤4% Audio Modulation ≥55dB Audio SN Ratio 50μs(B/G, D/K, I), 75μs (M/N) Audio Pre-emphasis ± 1.5dB （40Hz~15KHz） Audio Frequency Response ≤1.2% Total Harmonic Distortion...

  • Page 8: Order Information

    1701IM 4. Order information DMM-1701IM-xx series IP Input type Model Video Audio MONO PAL D/K PAL D/K(Poland) PAL B/G NTSC SECAM D/K SECAM L PAL-I 5. Front panel and rear panel instructions 5.1 Front panel - 6 -...

  • Page 9: Rear Panel

    1701IM A1 Control TS/IP-2 TS over IP input interface, also used as Web control A2 TS/IP-1 TS over IP input interface A3 USB Used to upgrade software version of this device. A4 Reset Used to reset the device’s settings. A5 Power Power indicator, green light means power supply is working well.

  • Page 10: Menu Operating Instructions Via Dmm-1000Cu

    1701IM 6. Menu operating instructions via DMM-1000CU Users are advised to restore factory setting of the machine before the first time using it. Users are advised not to change those temporarily useless parameters in order to avoid unnecessary fault. After power on, the Local IP address will be shown on the LCD of DMM-1000CU. User can press〔ENTER〕to get into the main menu.

  • Page 11: Status

    1701IM 6.1 Status： IP Input Bitrate RF Frequency1 RF Frequency2 RF Level RF Output Mode RF Audio Mode-1 RF Audio Mode-2 RF Switch-2 Status RF Modulator Mode Service Service Type Service Name Decoder-1 Provider Name Decoder-2 Video Video PID Audio Audio PID USB Status 6.1.1 Input Bit Rate...
  • Page 12 1701IM Program Video Standard Aspect Ratio Decoder-1 Subtitle priority Video Output Decoder-2 Subtitile Lang Close Cuption CVBS SUB Audio Level Audio Output Audio Mode Config Audio Priority BISS Mode→ BISS (Mode 0/1/E) RF Frequency1 RF Setting RF Frequency2 RF Level RF Audio Mode-1 RF Audio Mode-2 RF Switch-2...

  • Page 13: Network

    1701IM 2) Stream IP2: Configure the parameters of IP board2. 3) Uni/Mul 1 Setting: Configure the parameters for inputting TS/IP from port1. 4) Uni/Mul 2 Setting: Configure the parameters for inputting TS/IP from port2. 6.3 Network Here use can configure and check parameters of local network. Menu format is shown as below: Network Local...

  • Page 14: Web Control

    DMM-1701IM can be controlled by WEB. After connecting the control port(TS/IP2) to a PC, User can type IP address of DMM-1701IM in browser. The default IP address of 1701IM is 10.10.70.48, the default user name and password are “root” and “12345”. If you forget these, you can use DMM-1000CU to check and change.

  • Page 15: Input Setting Page

    1701IM 7.2 Input Settings page User can check and configure parameters for TS/IP input. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) Stream IP-1 Setting: Configure parameters of local IP board1, including IP address, subnet Mask and gateway.

  • Page 16: Rf Page

    1701IM 7.3 RF page Here user can configure and check parameters of modulation. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) RF Frequency-1(KHz): Configure the PF frequency for built-in modulator1. (2) RF Frequency-2(KHz): This parameter has to be 8MHz larger than Frequency 1, so it can’t be assigned at user’s will.

  • Page 17: Decoder-1/2 Page

    1701IM 7.4 Decoder-1/2 page Here user can configure and check parameters of the 2 built-in decoders. 7.4.1 Audio User can check and configure audio parameters for modulation. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) Audio Level: Configure the audio volume.
  • Page 18 1701IM “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) Video Standard: Configure the video standard, user can select between “PAL” and “NTSC”. (2) Aspect Ratio: Configure the aspect ratio, user can select among “Auto”, “4:3 Full”, “4:3 Letterbox”, “16:9 Full”...

  • Page 19: System Page

    1701IM 7.4.4 BISS User can configure the function of BISS descrambling. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) BISS Mode: User can choose among “BISS-0”, “BISS-1” and “BISS-E”. (2) Key: Configure the key for BISS descrambling.
  • Page 20 1701IM (1) Device Information: User can resign the device’s name at will, and check the serial number. (2) Status Refresh Interval: Configure the time interval for refreshing the web page. (3) HTTP Login: Configure the username and password for user to login on web control. (4) Factory Default: Used to restore all parameters to factory default value.
  • Page 21 1701IM 7.5.3 Network User can check and configure parameters of local network. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) Local Settings: Configure parameters for web control, including “IP Address”, “Subnet mask”...

  • Page 22: Installation

    1701IM 8. Installation  Fix the device in the DMM-1000MF chassis.  Fix the front and rear penal on the DMM-1000MF.  Connect the power cable to DMM-1000MF. Wait for 8 to 10 seconds, while this will complete self inspection and configuration. The POWER Indicator LED will always light on during working.
