3-40
To assign codes to a key using the Key Code feature, follow these steps:
1. Select the key to program, and then select Key Code. The application displays the
2. To assign codes for the selected key, do any of the following steps:
3. To update the keyboard with the assigned codes, do any of the following steps:
Saving the Keyboard Matrix
The keyboard assignments that are set using the Matrix Maker utility can be exported to
a
to the same configuration. To generate a
the Matrix Maker, follow these steps:
1. From the main menu, go to File→Save As. The Save As window is displayed.
2. Browse to the folder in which to save the file.
3. Input the file name, and then press Save.
following window.

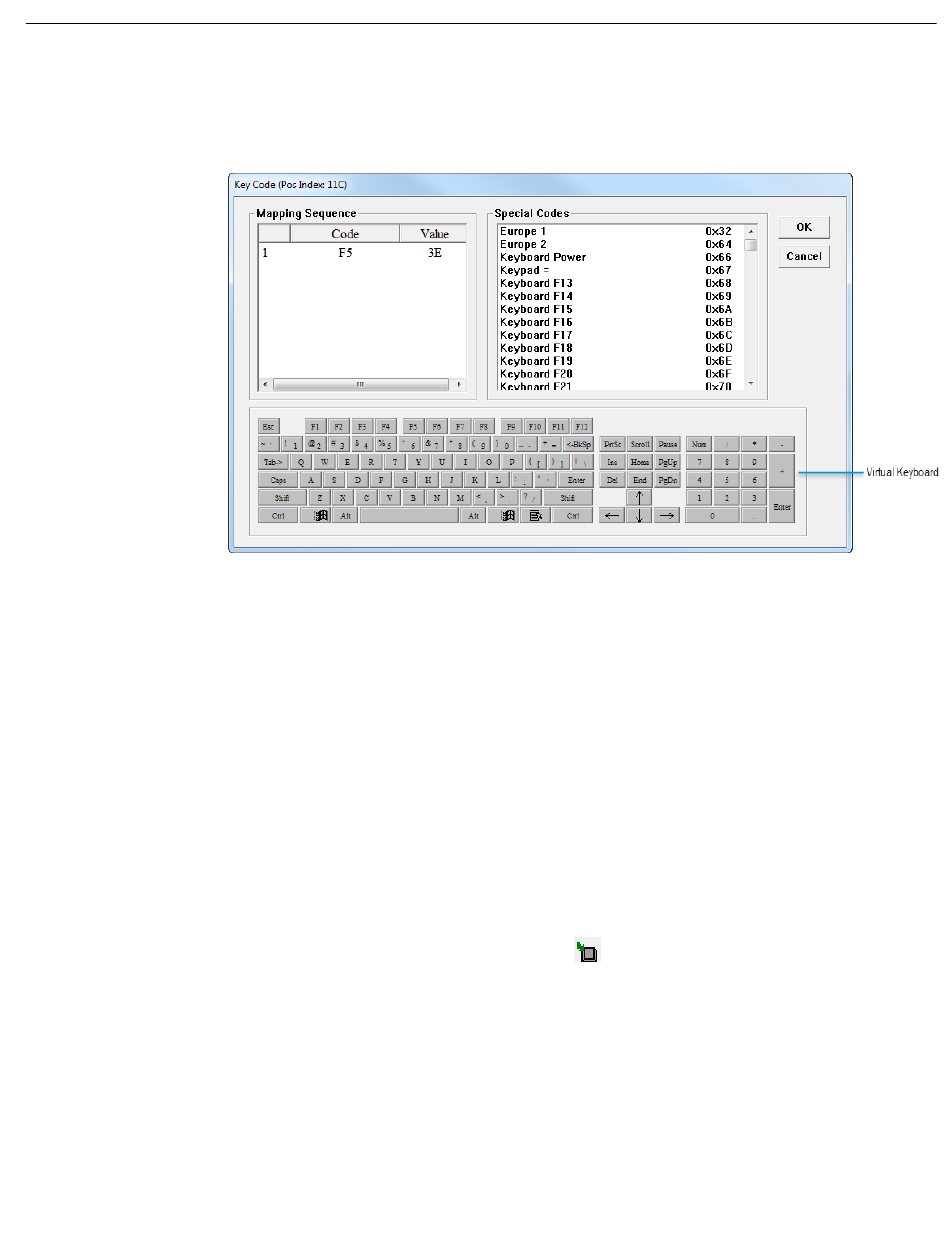

The Key Code window enables the user to assign each key with custom codes.
• Mapping Sequence—displays the assigned codes in sequential order.
• Virtual Keyboard—displays a keyboard, which functions as an actual keyboard.
• Special Codes—displays the special codes that may not be included in the
Virtual Keyboard
• Select the code from the Virtual Keyboard section, and then select OK.
• Select the code from the Special Codes section, and then select OK.
• From the main menu, select Keyboard→Update Key Mappings
• From the shortcuts toolbar, select the
file. The file serves as a backup and can also be used to update a keyboard
.dat .dat
icon.
file for the current keyboard matrix set in
.dat
Configuration
