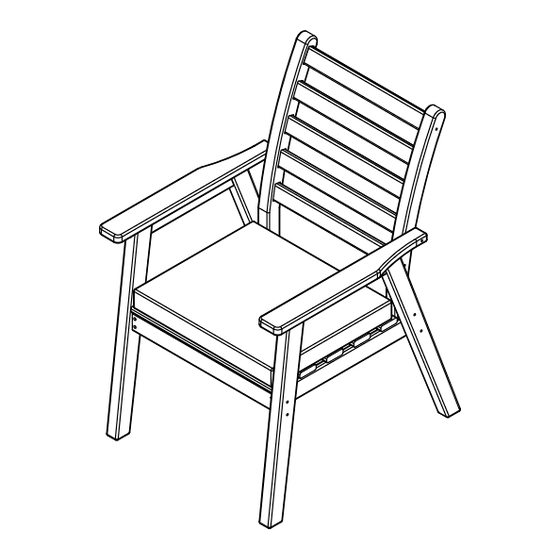

- Page 1 PRODUCT ASSEMBLY ® INSTRUCTIONS Signature Design by Ashley Ashley #P421-601A PLEASE READ THIS BOOKLET CONTAINS IMPORTANT INFORMATION KEEP FOR FUTURE REFERENCE Customer Service 866-319-0809 Page 1 of 12 ®...
-
Page 2: Customer Service Information
CUSTOMER SERVICE INFORMATION DO NOT RETURN TO THE STORE Roomsolutions by Ashley wants to help you. This product is covered by a manufacturer's limited warranty. In the event that you notice parts are missing or damaged, have a warranty question or you have assembly questions, contact the Roomsolutions by Ashley brand customer service at: Phone Number: 866-319-0809... -
Page 3: Care And Cleaning Instructions
CARE AND CLEANING INSTRUCTIONS Congratulations on the purchase of your new product. Proper care and cleaning will extend the life of your purchase. To ensure your product maintains its finish and quality: · Use a soft,clean cloth that will not scratch the surface when dusting ·... -
Page 4: Assembly Parts List
ASSEMBLY PARTS LIST Part Number: A Part Number: B Part Number: C Quantity: Quantity: Quantity: Description: Back Assembly Description: Seat Panel Description: Right Arm #2 Part Number: D Part Number: E Part Number: F Quantity: Quantity: Quantity: Description: Left Arm #1 Description: Front Leg Description:... - Page 5 ASSEMBLY INSTRUCTIONS Customer Service 866-319-0809 Page 5 of 12...
- Page 6 ASSEMBLY INSTRUCTIONS Step 1- Align the holes in the seat back apron(G) with the holes in the back of seat panel(B). Install screw(J) and fully tighten them using Allen wrench(M) . Step 2- Align the holes in the front leg(E) and back leg(F) with the holes in the side of seat panel(B), Install screw(K) using Allen wrench(M) .
- Page 7 ASSEMBLY INSTRUCTIONS Step 3- Align the holes in the front leg(E) and back leg(F) with the holes in the both end of right arm(C). Install screw(L) using Allen wrench(M). Step 4- Turn over the unit and align the holes in the front leg(E) and back leg(F) with the holes in the other side of seat panel(B), Install screw(K) using Allen wrench(M) .
- Page 8 ASSEMBLY INSTRUCTIONS Step 5- Align the holes in the front leg(E) and back leg(F) with the holes in the both end of left arm(D). Install screw(L) using Allen wrench(M). Step 6- Place the back assembly(A) on the seat base as shown, align the holes in the back leg(F) and left arm(D),right arm(C) with the holes in the both side of back assembly(A).
- Page 9 ASSEMBLY INSTRUCTIONS Step 7- Place the seat cushion (H) on the seat board(B) , secure the back cushions to the chair back by connecting the straps as shown to complete the assembly . Customer Service 866-319-0809 Page 9 of 12...
-
Page 10: Replacement Parts List
REPLACEMENT PARTS LIST Part Replacement Part Quantity Description Number Number R75905 Back Leg (657x70x40mm) R75906 Arm #1 (580x60x25mm) R75907 Seat Board (518x60x18mm) R75908 Front Leg (636x70x40mm) R75909 Seat Apron #1 (518x60x18mm) R75910 Seat Apron #2 (472x60x25mm) R75911 Arm #2 (580x60x25mm) R75912 Back Rail #1 (610x45x40mm) R75913... -
Page 11: Replacement Parts Drawing
REPLACEMENT PARTS DRAWING Assembly Hardware Pack Customer Service 866-319-0809 Page 11 of 12 ®... - Page 12 *Your Name_____________________________*Daytime Phone:________________________________ *Address:_______________________________ Home Phone:___________________________________ _______________________________________ Cell Phone:____________________________________ _______________________________________ Email:________________________________________ *City:_____________________*State:________ *Zip Code:_________________ Model #: Ashley #P421-601A *Serial #:__________________________(found on back or bottom of unit) Purchased from:___________________________ *Date of Purchase:______________________________ Reason for Parts Order (Circle One): Missing Part(s) Scratched Broken...
