Summary of Contents for Signature Design by Ashley P421-600

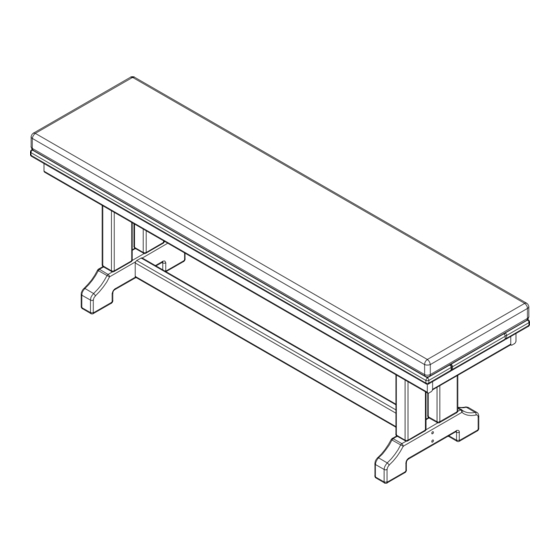

- Page 1 PRODUCT ASSEMBLY ® INSTRUCTIONS Signature Design by Ashley Ashley #P421-600 PLEASE READ THIS BOOKLET CONTAINS IMPORTANT INFORMATION KEEP FOR FUTURE REFERENCE Customer Service 866-319-0809 Page 1 of 11 ®...
-
Page 2: Customer Service Information
CUSTOMER SERVICE INFORMATION DO NOT RETURN TO THE STORE Roomsolutions by Ashley wants to help you. This product is covered by a manufacturer's limited warranty. In the event that you notice parts are missing or damaged, have a warranty question or you have assembly questions, contact the Roomsolutions by Ashley brand customer service at: Phone Number: 866-319-0809... -
Page 3: Care And Cleaning Instructions
CARE AND CLEANING INSTRUCTIONS Congratulations on the purchase of your new product. Proper care and cleaning will extend the life of your purchase. To ensure your product maintains its finish and quality: · Use a soft,clean cloth that will not scratch the surface when dusting ·... -
Page 4: Assembly Parts List
ASSEMBLY PARTS LIST Part Number: A Part Number: B Part Number: C Quantity: Quantity: Quantity: Description: Seat Panel Description: Leg Description: Base Part Number: D Part Number: E Part Number: F Quantity: Quantity: Quantity: Description: Stretcher Description: Seat Cushion Description: 1/4inx75mm Allen Bolt Part Number: G Part Number: H Part Number: J... - Page 5 ASSEMBLY INSTRUCTIONS Customer Service 866-319-0809 Page 5 of 11 ®...
- Page 6 ASSEMBLY INSTRUCTIONS Step 1- Align the holes in the Base (C) with the holes in the Legs (B). Install screw (H) and fully tighten them using Allen wrench (L). *Repeat step 1 to assemble the remaining Base (C) and Legs (B). Step 2- Align the holes in the Legs (B) with the holes in the Stretchers (D).
- Page 7 ASSEMBLY INSTRUCTIONS Step 3- Place the seat panel (A) top side down on a smooth and protective surface, place legs (B) on bottom of the seat panel, align the holes in the Legs (B) with the holes in the frame of seat panel, Install bolt (F),flat washer (G) and screw (F) and lock nut (K), using Allen wrench (L) and open wrench (M).
- Page 8 ASSEMBLY INSTRUCTIONS Step 5- Place the seat cushion (H) on the seat board (B) , secure the seat cushion to the bench slats by connecting the straps as shown to complete the assembly . Customer Service 866-319-0809 Page 8 of 11 ®...
-
Page 9: Replacement Parts List
REPLACEMENT PARTS LIST Part Replacement Part Description Quantity Number Number Leg (295x70x40mm) R75918 Base (325x90x40mm) R75919 R75920 Stretcher (975x50x25mm) 1/4inx75mm Allen Bolt(4) 1/4in Lock Washer(4) 1/4in Flat Washer(4) D6.5xD16mm Flat Washer(4) R70575 1/4in Lock Nut(4) 1/4inx80mm Screw(4) 1/4inx95mm Screw(8) 1/4inch Open Wrench(1) 5mm Allen Wrench(1) Customer Service 866-319-0809 Page 9 of 11... -
Page 10: Replacement Parts Drawing
REPLACEMENT PARTS DRAWING Assembly Hardware Pack (K) 1/4"x8mm 4pcs (J) 1/4" (F) 1/4"x75mm 4pcs 4pcs (L) 5mm (G) 1/4"x80mm 4pcs (H) 1/4"x95mm 8pcs (M) 1/4" Customer Service 866-319-0809 Page 10 of 11 ®... - Page 11 *Your Name_____________________________*Daytime Phone:________________________________ *Address:_______________________________ Home Phone:___________________________________ _______________________________________ Cell Phone:____________________________________ _______________________________________ Email:________________________________________ *City:_____________________*State:________ *Zip Code:_________________ Model #: Ashley #P421-600 *Serial #:___________________________(found on back or bottom of unit) Purchased from:___________________________ *Date of Purchase:______________________________ Reason for Parts Order (Circle One): Missing Part(s) Scratched Broken...
