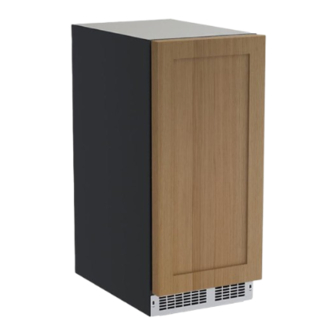

- Page 1 OWNER’S GUIDE & SERVICE MANUAL M A R V E L U N D E R C O U N T E R R E F R I G E R AT I O N Model: MRNP215-IS01A...
-
Page 2: Warranty Registration
The serial number is located on the back of the cabinet near the top. We would love to see how your Marvel product looks in its new home. You can send us photos of your installed product at marketing@marvelrefrigeration.com, and we... - Page 3 TABLE OF CONTENTS Tip: Click on any section below to jump directly there Installation Integrated Panel Dimensions Integrated Panel Installation...
-
Page 4: Integrated Panel Dimensions
INTEGRATED PANEL DIMENSIONS Integrated Panel Integrated Panel Dimensions NOTE BACK SURFACE MUST HAVE AMPLE FLAT SURFACE 3/4” TO MOUNT OVERLAY PANEL FLAT AND WITHOUT INTERFERENCE (19 mm) Due to differences in surrounding cabinetry, the panel may not perfectly align with door. The procedure below is 14 ⁄... -
Page 5: Integrated Panel Installation
INTEGRATED PANEL INSTALLATION Prepare Integrated Panel 1. Remove door from unit (see Door Reversal) 2. On a flat surface, line up the door to the integrated door panel and clamp. 3. Remove gasket channel filler to expose side holes. 4. Intall 10 screws to secure door panel. 5.
