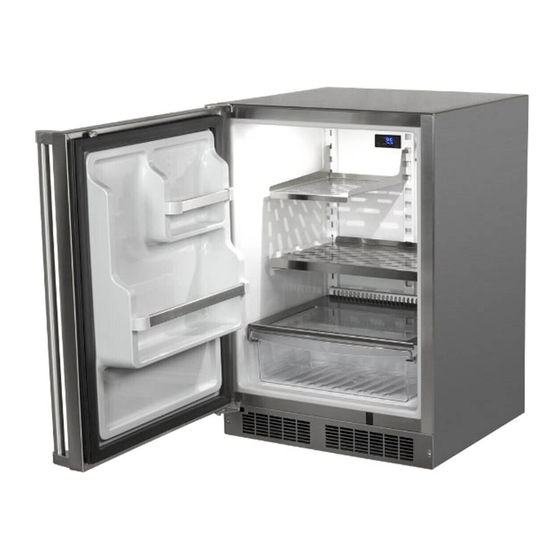

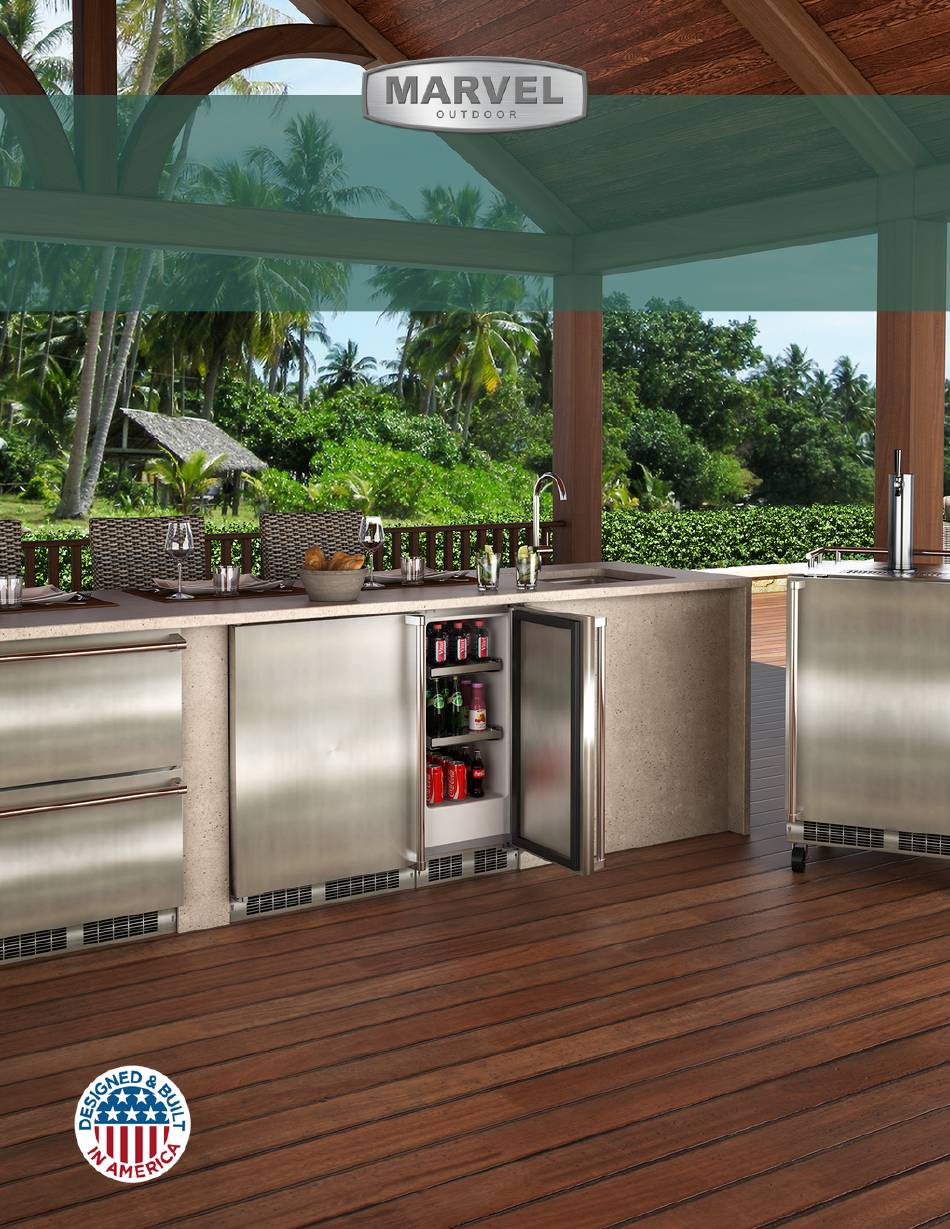

- Page 1 O W N E R S G U I D E M A R V E L O U T D O O R U N D E R C O U N T E R R E F R I G E R A T I O N F O R M O D E L # M O R E 2 2 4 T H E O R I G I N A L R E F R I G E R A T I O N E X P E R T S S I N C E 1 8 9 2...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situa- tions that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operat- ing this appliance. -
Page 3: Table Of Contents
TABLE OF CONTENTS Tip: Click on any section below to jump directly there Safety Important Safety Instructions Installation Unpacking Your Appliance Electrical Maintenance Care and Cleaning Operating Instructions Interior Adjustments Energy Savng Tips Service Obtaining Service Product Liability Ordering Replacement Parts R600a Specifications System Diagnosis Guide Compressor Specifications... -
Page 4: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE CAUTION WARNING If the appliance was shipped, handled, or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the ap- Use two or more people to move product. pliance to sit upright for a period of at least 24 hours before Failure to do so can result in personal injury. -
Page 5: Electrical
ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accor- dance with the National Electrical Code and applicable lo- Do not remove cal codes and ordinances (see Figure 4). - Page 6 INTERIOR ADJUSTMENTS Tall bottle CAUTION storage area Shelf load limit is 35 lbs. Overloading the shelf could result in deflection and risk of injury. Shelf support slot Installed shelf tang Rear tang (hook) on shelf Door storage racks Figure 43 To remove the crisper : Pull out until it stops.
-
Page 7: Care And Cleaning
CARE AND CLEANING Front Grille The following suggestions will minimize the Be sure that nothing obstructs the required air flow open- cost of operating your refrigeration appliance. ings in front of the cabinet. At least once or twice a year, 1. -
Page 8: Energy Savng Tips
ENERGY SAVING TIPS The following suggestions will minimize the cost of operating your refrigeration appliance. 1. Do not install your appliance next to a hot appliance (cooker, dishwasher, etc.), heating air duct, or other heat sources. 2. Install product out of direct sunlight. 3. -
Page 9: Obtaining Service
OBTAINING SERVICE If Service is Required: • If the product is within the first year warranty period please contact your dealer or call Marvel Customer Service at 616.754.5601 for directions on how to obtain warranty coverage in your area. •... -
Page 10: Ordering Replacement Parts
Warranty parts will be shipped at no charge after Marvel confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information. - Page 11 Warranty parts will be shipped at no charge after Marvel confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information.
-
Page 12: R600A Specifications
PERSONNEL DO HOT PUNCTURE REFRIGERANT TUBING refrigeration system. RISK Of FIRE OR EXPLOSION. FIAMHA_ B LE REFRIGERANT USED. CONSULT Never substitute Marvel OEM replacement parts REPAIR IIANUAVOWHER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS HUST BE FOUOWEO. - Page 13 R-600A SPECIFICATIONS/LABELING WARNING R-600a equipped products are labeled (both the unit and the compressor). Only skilled and well trained service technicians permitted to service R-600a equipped products. R-600a is colorless and odorless. All tools and equipment must be approved for use with R-600a refrigerant.
- Page 14 Evacuate/reclaim via the piecing pliers to ensure the When re-brazing, the system must be purged with dry system is empty of R-600a before any system work is nitrogen and at least one access point open to the performed. atmosphere. When re-brazing, proper ventilation is required along with constant monitoring for the presence of R600a refrigerant.
- Page 15 The low side of the refrigeration system (evaporator, Proper ventilation during service is required. compressor and suction line) must be leak tested with the compressor off (equalized pressure). Never apply a torch to a charged R-600a refrigeration system. RECHARGING No air is ever to be allowed inside the refrigeration system Use OEM replacement service parts and do not alter the (R-600a refrigerant or dry nitrogen only).
-
Page 16: System Diagnosis Guide
System Diagnosis Guide REGRIGERATION SYSTEM DIAGNOSIS GUIDE System Suction Suction Compressor Condenser Capillary Evaporator Wattage Condition Pressure Line Discharge Tube Normal Normal Slightly Very hot Very hot Warm Cold Normal below room temperature Overcharge Higher than Very cold Slightly warm Hot to warm Cool Cold... -
Page 17: Compressor Specifications
Compressor Specifications EMX20CLC REFRIGERANT R600A DANGER VOLTAGE 115 VAC FREQUENCY 60 Hz START WINDING Electrocution can cause death or serious injury. 7 Ohm at 77 ° RUN WINDING 13 Ohm at 77 Burns from hot or cold surfaces can cause serious °... - Page 18 For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase.
