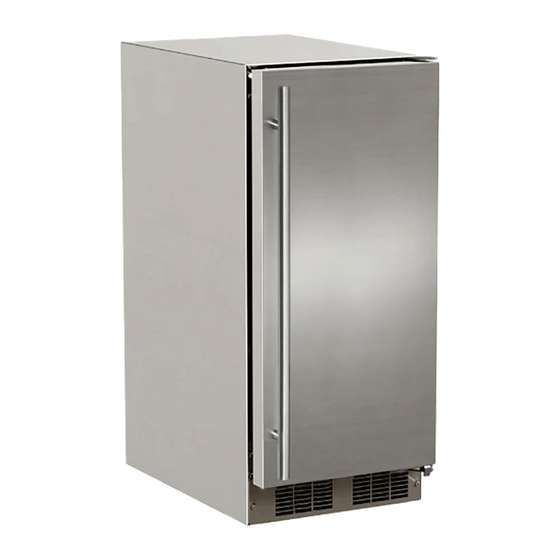

- Page 1 OWNER’S GUIDE & SERVICE MANUAL M A R V E L U N D E R C O U N T E R R E F R I G E R AT I O N Model: MONP215-SS01A...
- Page 2 The serial number is located on the back of the cabinet near the top. We would love to see how your Marvel product looks in its new home. You can send us photos of your installed product at marketing@marvelrefrigeration.com, and we...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Tip: Click on any section below to jump directly there Safety Important Safety Instructions Installation Unpacking Your Appliance Electrical Cutout & Product Dimensions Installing Your Appliance Door Reversal Installing The Water Supply Installing the Drain plumbing Maintenance Care and Cleaning Operating Instructions Using Your Electronic Control... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating this appliance. Recognize Safety Symbols, Words and Labels WARNING... -
Page 5: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE WARNING CAUTION If the appliance was shipped, handled or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the Use two or more people to move product. appliance to sit upright for a period of at least 24 hours Failure to do so can result in personal injury. - Page 6 ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and Do not remove applicable local codes and ordinances.
-
Page 7: Cutout & Product Dimensions
CUTOUT AND PRODUCT DIMENSIONS Prepare Site Your Marvel product has been designed for either free- standing or built-in installation. When built-in, your unit Front does not require additional air space for top, sides, or rear. However, the front grille must NOT be obstructed, and clearance is required for an electrical connection in the rear. -
Page 8: Installing Your Appliance
INSTALLING YOUR APPLIANCE General Installation Installation 1. Plug in the power/electrical cord. 2. Gently push the unit into position. Be careful not to Leveling Information entangle the cord or water and drain lines, if applicable. 1. Use a level to confirm 3. -
Page 9: Door Reversal
DOOR REVERSAL Reverse Door Swing 4. Remove bottom hinge by taking out 3 screws. The hinges are attached to the right-hand side of the door when the product is shipped from the factory. However, the ice maker is designed so that the hinges may be installed on either side. - Page 10 DOOR REVERSAL 1. ee 2. ee 3. ee 4. ee 5. ee 6. ee 7. Remove door stop from bottom of door by taking out 2 12. Remove door gasket from the inside of the door, rotate screws. Remove flange. it 180°, and reinstall.
- Page 11 USING YOUR ELECTRONIC CONTROLS Display Panel Light No Water Drain Button Lamp Lamp Lamp Control Function Guide FUNCTION COMMAND NOTES Light Button Press and release Light turns on or off Ice Lamp Lights up when operation switch is set to “ICE” No Water Lamp Lights up to indicate low water supply Drain Lamp...
-
Page 12: Installing The Water Supply
INSTALLING THE WATER SUPPLY Water Hookup Do not use tape or joint compound when attaching a braided flexible water supply line that includes a rubber gasket. The gasket provides an adequate seal – other ma- Prepare Plumbing terials could cause blockage of the valve. Plan the arrangement of the water supply pipes. -
Page 13: Installing The Drain Plumbing
INSTALLING THE DRAIN PLUMBING Drain Connection CAUTION The floor drain must be large enough to accommodate drainage from all attached drains. Follow these guidelines when installing drain lines to prevent water from flowing back into the ice maker storage bin and/or potentially flowing onto the floor, which may result in personal injury or property damage. -
Page 14: Ice Maker Operation
ICE MAKER OPERATION CAUTION Do not put anything other than ice in the ice bin. Wine or beer bottles are unsanitary and a detached label may block the drain. CAUTION Approximate size and shape of a cube (image not to scale). If the ice storage bin is full of water, turn off the ice maker and clean the mesh on the bottom of the ice bin. - Page 15 115°F (35°C - 45°C) to use as a cleaning solution. Dampen a clean cloth with the cleaning solution and wash the inside Marvel Ice Machine Cleaner is used to remove lime scale of the ice bin. Pour a small quantity of the solution into the and other mineral deposits.
- Page 16 CARE AND CLEANING Cleaning the Condenser WARNING Disconnect electric power to the unit before cleaning the condenser. DO NOT use any type of cleaner on the condenser unit. Condenser may be cleaned using a vacuum, soft brush, or compressed air. The condenser should be cleaned 2-3 times a year to remove any lint that has penetrated the condenser.
-
Page 17: Obtaining Service
If Service is Required: • If the product is within the first year warranty period, please go to marvelrefrigeration.com/request-product- service or call Marvel Customer Service at 616.754.5601 for directions on how to obtain warranty coverage in your area. • If the product is outside the first year warranty period, Marvel Customer Service can provide recommenda- tions of service centers in your area. -
Page 18: Troubleshooting
TROUBLESHOOTING LAMP CURRENT • • • CAUSES ACTION CONDITION DRAIN WATER When the operation switch is switched to Ice Making position When the operation switch is When you turn the operation switch to the Washing changed to , the ‘ICE’ lamp blinks (every 'off' position, the water will drain and stop 1 second) after performing the cleaning procedure. - Page 19 8. Maintenance Schedule -The following maintenance schedule is guideline 8. Maintenance Schedule TROUBLESHOOTING 8. Maintenance Schedule -Maintenance and repair should be done more frequently according to water quality, equipment usage environment and local hygiene regulations. -The following maintenance schedule is guideline 8.
-
Page 20: Wire Diagram
WIRE DIAGRAM... -
Page 21: Product Liability
The part that caused the damage must be returned to Marvel in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part. -
Page 22: Parts List
PARTS LIST MONP215-SS01A 11 18... - Page 23 PARTS LIST AIR SENSOR (BLUE) 80-55453-06 17 FRONT LOW-COVER KIT 80-55453-12 AUGER ASSEMBLY 80-55381-02 18 GASKET, DOOR (SOLID) 80-55453-09 BACK PANEL (REAR COVER) 80-55342-09 19 GRILLE ASSEMBLY (OUTDOOR) 80-55453-13 BASE BRACKET(G-BOX) 80-55342-01 20 ICE MAKING UNIT (NUGGET) 80-55381-03 CAPACITOR KIT 80-55453-05 21 ICE SCOOP ASSEMBLY 80-55352-00...
-
Page 24: Ordering Replacement Parts
Warranty parts will be shipped at no charge after Marvel confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information. -
Page 25: R600A Specifications
PERSONNEL DO HOT PUNCTURE REFRIGERANT TUBING refrigeration system. RISK Of FIRE OR EXPLOSION. FIAMHA_ B LE REFRIGERANT USED. CONSULT Never substitute Marvel OEM replacement parts REPAIR IIANUAVOWHER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS HUST BE FOUOWEO. - Page 26 R-600A SPECIFICATIONS/LABELING WARNING R-600a equipped products are labeled (both the unit and the compressor). Only skilled and well trained service technicians permitted to service R-600a equipped products. R-600a is colorless and odorless. All tools and equipment must be approved for use with R-600a refrigerant.
- Page 27 Evacuate/reclaim via the piecing pliers to ensure the When re-brazing, the system must be purged with dry system is empty of R-600a before any system work is nitrogen and at least one access point open to the performed. atmosphere. When re-brazing, proper ventilation is required along with constant monitoring for the presence of R600a refrigerant.
- Page 28 The low side of the refrigeration system (evaporator, Proper ventilation during service is required. compressor and suction line) must be leak tested with the compressor off (equalized pressure). Never apply a torch to a charged R-600a refrigeration system. RECHARGING No air is ever to be allowed inside the refrigeration system Use OEM replacement service parts and do not alter the (R-600a refrigerant or dry nitrogen only).
-
Page 29: Compressor Specifications
COMPRESSOR SPECIFICATIONS HYS67MGU72a WARNING Refrigerant R600a Voltage 115 - 127 VAC Electrocution can cause death or serious injury. Frequency 60 Hz Burns from hot or cold surfaces can cause serious injury. Take precautions when servicing Run Cap 8μF/450 VAC this unit. Start Winding 8 Ohm at 77°F Disconnect the power source. - Page 30 For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase.
- Page 31 Marvel Refrigeration 1260 E. Van Deinse St. Greenville MI 48838 616.754.5601 All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.
