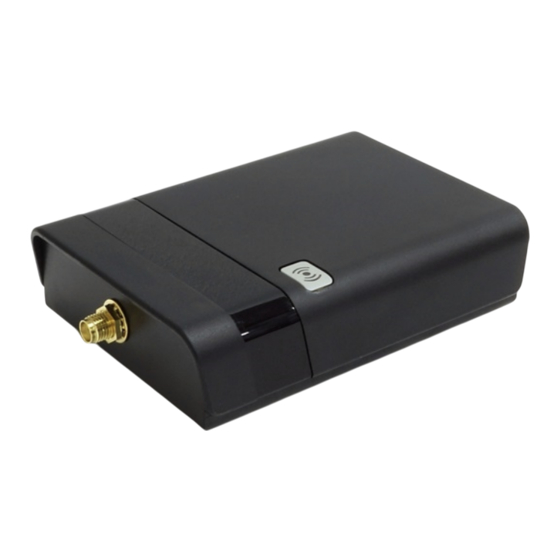

HaLow-R
User Quick Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the HaLow-R and is the answer not in the manual?

Questions and answers

Related Manuals for Alfa Network HaLow-R

Summary of Contents for Alfa Network HaLow-R

  • Page 1 HaLow-R User Quick Guide...

  • Page 2: Product Overview

    Product Overview LED Indicator / Interface Descriptions On – Power on Power Indicator (Red) Off – No power On – Wi-Fi HaLow is running properly Wi-Fi HaLow Indicator (Amber) Blinking – Wi-Fi HaLow is sending or receiving data On – Wi-Fi 2.4G is running properly Wi-Fi 2.4G Indicator (Amber) Blinking –...

  • Page 3: Application Scenario

    Camera HaLow-R HaLow-R STA (Client) (1).Attach Antenna to the HaLow-R and rotate the antenna until it is tight. (2).Connect the HaLow-R and Computer’s LAN port for settings. (3).After setting is completed, please connect the Internet to the HaLow-R AP side.
  • Page 4 Open Setup Page and Login Open a browser then type 192.168.100.1 into the address bar to access the setup page, default username is “root” and no need password. After logging in, the “STATUS” page will be shown.
  • Page 5 How to Setup AP Mode Please go to the “MORSE → HaLow Configuration“ page.
  • Page 6 How to Setup AP Mode 1).Click “Access Point” page 2).Enable “Bridge” mode 3).IP Settings → “Static”, and fill the IP Address, Netmask, Gateway information. 4).After the setting is completed, please click the "Save" button.
  • Page 7 How to Setup AP Mode Please change the IP Address of the computer to the same network segment as HaLow-R.
  • Page 8 How to Setup AP Mode When the Client connects to the AP, it will be shown on the “STATUS” page. Note: When you reload the web page, please note whether you have changed the device IP!
  • Page 9 How to Setup Client Mode Please go to the “MORSE → HaLow Configuration“ page. Click “Station” page...
  • Page 10 How to Setup Client Mode 1).Click “Scan” button for AP scan, and fill the password if need. 2).Enable “Bridge” mode 3).IP Settings → “Static”, and fill the IP Address, Netmask, Gateway information. 4).After the setting is completed, please click the "Save" button.
  • Page 11 How to Setup Client Mode Please change the IP Address of the computer to the same network segment as HaLow-R.
  • Page 12 How to Setup Client Mode When the Client connects to the AP, it will be shown on the “STATUS” page. Note: When you reload the web page, please note whether you have changed the device IP!
  • Page 13 How to Reset Default and Upload Firmware Please go to the “SYSTEM” page. Reset Default Upload Firmware...
  • Page 14 HaLow-R Specifications WiFi 4 (IEEE 802.11n) Chipset MediaTek MT7628AN Flash SPI Flash 32 MB DDR2 SDRAM 128 MB WiFi standard IEEE 802.11n (2.4 GHz) Channel bandwidth 20/40 MHz Max. date rate (Phy rate) 300 Mbps Antenna connector 2x RP-SMA connectors...
  • Page 15 CE statement Simplified EU Declaration of Conformity Hereby, ALFA NETWORK INC. declares that this Wireless Device HaLow-R product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of conformity can be found at www.alfa.com.tw...
