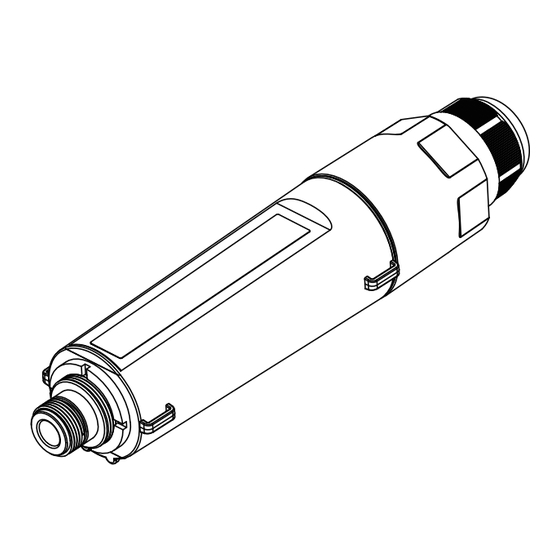

- Page 1 Tube-AH Quick Installation Guide...
-
Page 2: Package Contents
Package Contents 1 x Tube-AH Outdoor AP/CPE 2 x Pole mount cable ties 1 x Outdoor N-type Antenna 1 x Outdoor Water Resistant Tape 1 x Passive PoE Adapter 1 x User Guide 1 x Power Cord... -
Page 3: Product Overview
Product Overview LED Indicator / Interface Descriptions Power Indicator (Green) On - Power on Off - No power Wi-Fi Indicator (Green) Blinking - Wi-Fi is sending or receiving data System Indicator (Blue/Green) On - Device is running properly (Green) Blinking - Device is sending or receiving data (Blue) RJ45 Waterproof Connector Waterproof connector to prevent water and dust from entering the device. -
Page 4: Hardware Installation
Hardware Installation... - Page 5 Connect the Tube-AH and PoE adapter’s PoE port using Ethernet cable. Rotate the waterproof connector until it is tight. 2.Attach Outdoor Omni Antenna to the Tube-AH and rotate the antenna until it is tight. Seal the gap on the connector with the water resistant tape.
- Page 6 Open Setup Page and Login Open a browser then type 192.168.100.1 into the address bar to access the setup page, default username and password are "admin". After logging in, the dashboard page will be shown.
- Page 7 How to Setup AP Mode Please go to the dashboard page and click the "EDIT" button. This setting page allow you to change Device IP、AH Mode (Default: AP Mode)、Channel、Network Name...etc. After the setting is completed, please click the "OK" button.
- Page 8 How to Setup AP Mode When the Client connects to the AP, it will be shown on the dashboard page.
- Page 9 How to Setup Client Mode Please go to the dashboard page and click the "EDIT" button. Please change Device IP (Same network segment as AP, but different IP.) 、AH Mode (change to: Client Mode), and click the "Search" button.
- Page 10 How to Setup Client Mode Please select the AP you want to connect and click the "Select" button. After the setting is completed, please click the "OK" button.
- Page 11 How to Setup Client Mode When the Client connects to the AP, it will be shown on the dashboard page. When you reload the web page, please note whether you have changed the device IP!
- Page 12 For example, your front-end router settings are as follows: Gateway IP: 192.168.0.1 DHCP Server Range: 192.168.0.2~192.168.0 253 Please go to the “Network” page modification settings examples are as follows: For Tube-AH AP IP Address: 192.168.0.111 Gateway: 192.168.0.1 DHCP Server: Disable...
- Page 13 How to Setup with the Router For Tube-AH Client P Address: 192.168.0.112 Gateway: 192.168.0.1 DHCP Server: Disable Please click the "SAVE" button.
- Page 14 How to Setup with the Router After the setting is completed, it will be shown as follows For Tube-AH AP For Tube-AH Client When you reload the web page, please note whether you have changed the device IP!
- Page 15 How to Factory Reset or Reboot Factory Reset Please go to the system page and click the "Factory Reset" button. Reboot In the “Admin” drop-down menu on the upper right, click the "Reboot" item.
-
Page 16: Application Scenario
Application Scenario Tube-AH Client Sensor Tube-AH AP... -
Page 17: Troubleshootin
Troubleshootin LED indicators shown abnormally Please check to see if all cable connectors (PoE adapter and Ethernet cable) are connected to your device properly. Please use the PoE adapter, which is included in the package content. - Page 18 000-0000000000-00000...
