bbf Hampton Heights HHF130WH Assembly Manual
  1. Manuals
  2. Brands
  3. bbf Manuals
  4. Indoor Furnishing
  5. Hampton Heights HHF130WH
  6. Assembly manual

bbf Hampton Heights HHF130WH Assembly Manual

Hide thumbs

Advertisement

Table of Contents

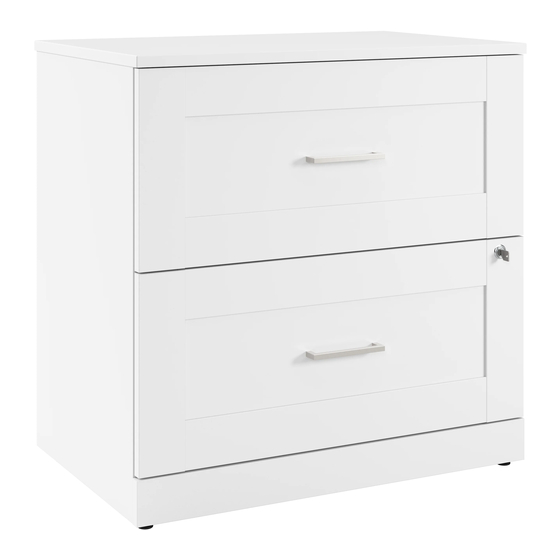

30W 2 Drawer Lateral File
Lot Code #
Instruction Sheet Number A215544
Keep manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hampton Heights HHF130WH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for bbf Hampton Heights HHF130WH

Summary of Contents for bbf Hampton Heights HHF130WH

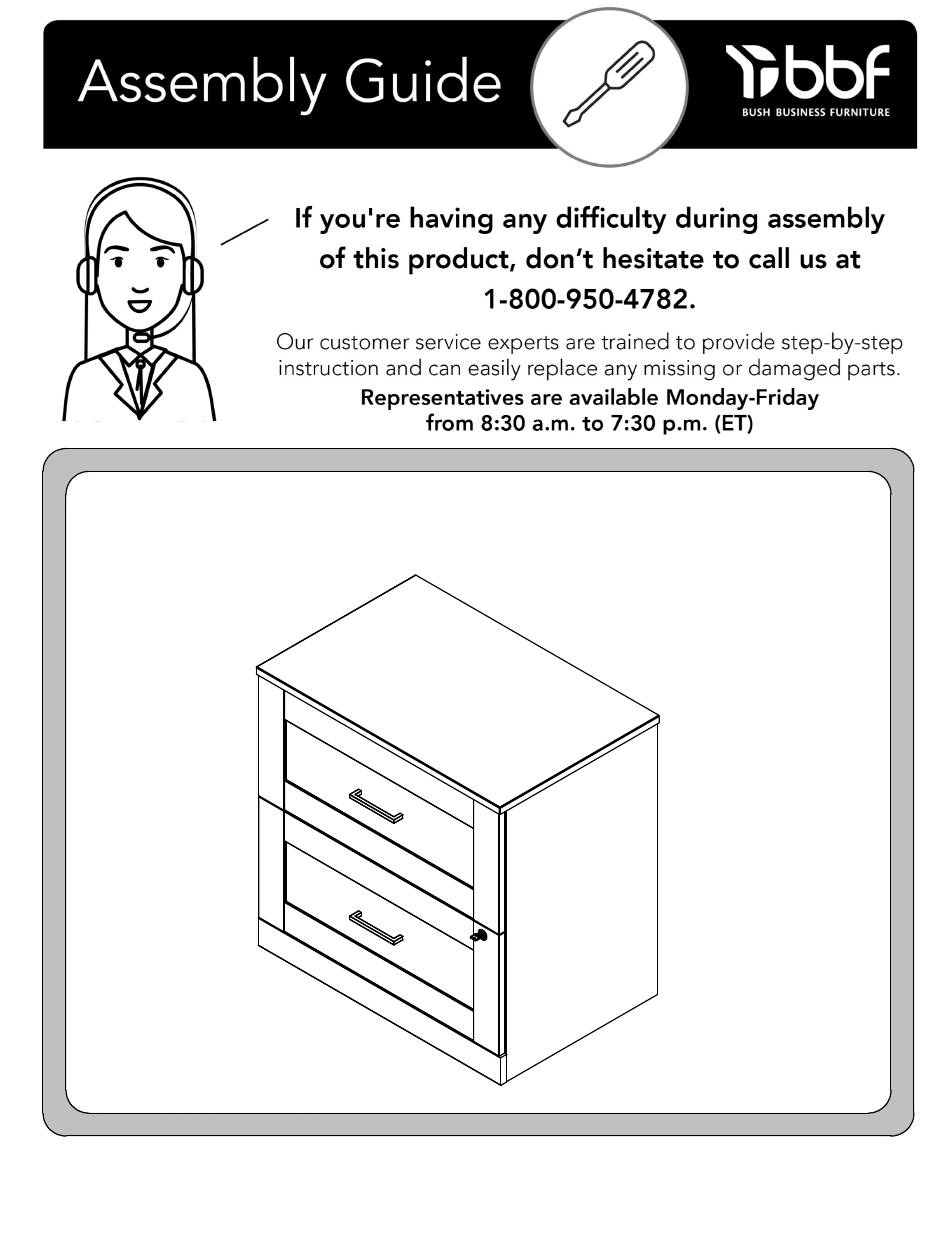

  • Page 1 30W 2 Drawer Lateral File Lot Code # Instruction Sheet Number A215544 Keep manual for future reference.
  • Page 2 Get Ready to Assemble A215544...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • • Assemble following all instructions Do not load with a television Improper may occur.
  • Page 4 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Por qué es Advertencia Hacer importante Se pueden • • • Ensamble siguiendo todas las No cargue con un televisor El ensamblaje, producir instrucciones utilizando todas...
  • Page 5 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Pourquoi c'est Avertissement Faire Ne le fais pas important Des blessures • • • Assemblez en suivant toutes les Ne chargez pas avec un Un assemblage, graves instructions en utilisant toutes...
  • Page 6 Get to know your Boards A215544 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 7 Get to know your Fasteners A215544 Fasteners are shown actual size. [ 48 ] H192100 [ 2 ] H28917 #8 x 1/2" Silver #6 x 1/2" [ 12 ] H146988 H128624 [ 8 ] (Black) #8 x .5" Euro 13/14mm [ 4 ] H108982 [ 12 ]...
  • Page 8 Get to know your Hardware A215544 Hardware not to scale. H95581 [ 2 ] [ 1 ] H215561 File Extrusion 26-11/16" (678mm) Lock H215531 [ 2 ] [ 1 ] H215921 File Extrusion 26-7/8" (684mm) Bezel H94928 [ 4 ] [ 1 ] H214977 File Extrusion...
  • Page 9 Prepare Panels STEP A215544 [ 12 ] H146988 [ 4 ] H146990 Euro 13/14mm Drawer Bracket Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 Prepare Panels STEP A215544 H215531 [ 2 ] [ 8 ] H192100 File Extrusion #8 x 1/2" 26-7/8" (684mm) [ 1 ] H210278 DWR Bracket Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 11 Assemble Panels STEP A215544 H128624 [ 8 ] (Black) #8 x .5" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 12 Assemble Panels STEP A215544 [ 8 ] H150333 #8 x 1-1/2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 13 Attach Hardware STEP A215544 [ 4 ] H173172 [ 2 ] H192100 #8 x 1/2" Drawer Support 13-5/16" (338mm) Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 14 Separate Slides STEP A215544 Slides Must Be Separated Before Assembly. After Separated, Set Aside Until Needed for Assembly. Las diapositivas deben separarse antes del montaje. Después de la separación, déjelo a un lado hasta que sea necesario. Les glissières doivent être séparées avant l'assemblage. Après la séparation, mettez de côté...
  • Page 15 Attach Hardware STEP A215544 [ 6 ] H192100 #8 x 1/2" 14" Slide Runner [ 2 ] H108982 Q214908 [ 2 ] (Silver) M4 x 20mm [ 1 ] Q215208 Pull H108982 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 16 Attach Hardware STEP A215544 [ 1 ] H215561 Lock [ 1 ] H215921 Bezel [ 2 ] H28917 Silver #6 x 1/2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 17 Attach Hardware STEP A215544 [ 6 ] H192100 #8 x 1/2" 14" Slide Runner Q214908 [ 2 ] [ 2 ] H108982 (Silver) M4 x 20mm [ 1 ] Q215208 Pull H108982 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 18 Attach Hardware STEP A215544 H95581 [ 2 ] [ 2 ] H89793 File Extrusion File Bar 26-11/16" (678mm) 12-1/2" (318mm) H89793 H94928 [ 4 ] File Extrusion 12" (304mm) H95581 H89793 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 Prepare Panel STEP A215544 [ 2 ] H181468US 190° KD Cam3000 Minimum [ 2 ] H171556 Quickfit TL4 [ 2 ] H79096 KD Bolt Double Head Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 20 Assemble Panels STEP A215544 [ 2 ] H181468US KD Cam3000 190° Minimum Finished edge Borde acabado Bord fini Flush Alineado Aligné Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 21 Prepare Panel STEP A215544 [ 2 ] H171556 Quickfit TL4 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 22 Assemble Panels STEP A215544 [ 2 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 23 Assemble Panels STEP A215544 [ 2 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 24 Prepare Panel STEP A215544 [ 6 ] H195734 M6.3 X 13MM 14" Slide Mount [ 2 ] H72988 [ 2 ] Q214908 KD Bolt [ 4 ] H171556 Quickfit TL4 [ 2 ] H192100 [ 1 ] H184145 #8 x 1/2" Anti Tip Mechanism H171556 H72988...
  • Page 25 Assemble Panels STEP A215544 [ 4 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 26 Prepare Panel STEP A215544 [ 4 ] H171556 14" Slide Mount Quickfit TL4 [ 2 ] Q214908 [ 2 ] H72988 KD Bolt [ 2 ] H192100 #8 x 1/2" [ 6 ] H195734 [ 1 ] H214977 M6.3 X 13MM DWR Bracket H171556 H192100...
  • Page 27 Assemble Panels STEP A215544 [ 4 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 28 Attach Hardware STEP A215544 [ 4 ] H181468US KD Cam3000 190° Minimum Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 29 Prepare Panel STEP A215544 [ 6 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 30 Assemble Panels STEP A215544 [ 6 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 31 Attach Hardware STEP A215544 [ 16 ] [ 4 ] H192100 H215449 #8 x 1/2" Leveler Bracket Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 32 Attach Hardware STEP A215544 [ 4 ] H39696 Leveler Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 33 Insert Drawer STEP A215544 Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 34 Attach Hardware STEP A215544 [ 2 ] H192100 [ 1 ] H184144 #8 x 1/2" Anti Tip Wedge Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 35 Insert Drawer STEP A215544 Close lower drawer Cerrar cajón inferior Fermer le tiroir inférieur Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 36 Attach Hardware STEP A215544 [ 1 ] H184144 Anti Tip Wedge [ 2 ] H192100 #8 x 1/2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 37 Drawer Adjustment STEP A215544 DRAWER FRONT VIEW REQUIRED TOOL: PHILLIPS SCREWDRIVER HERRAMIENTA REQUERIDA: DESTORNILLADOR PHILLIPS OUTIL REQUIS: TOURNEVIS CRUCIFORME 1. LOOSEN SCREWS. 2. ADJUST DRAWER FRONTS. 3. TIGHTEN SCREWS. 1. Afloje los tornillos 2. Ajustar frentes de cajón 3. Apriete los tornillos 1.
  • Page 38 Cleaning and Maximum Loading STEP A215544 Gently clean surfaces with a damp sponge eraser. File drawers hold letter, legal or A4 size files. Las gavetas para archivador reciben archivos de tamaño carta, legal o A4. Les tiroirs a dossiers peuvent accueillir des dossiers de format lettre, grand format ou A4.

  • Page 39: Parts List

    PARTS LIST A215544 HHF130WH LABEL PART NUMBER DESCRIPTION W215532 TOP SHELF W215533 LEFT SIDE PANEL W215534 RIGHT SIDE PANEL W215536 BOTTOM SHELF W215535 UPPER BACK PANEL W215756 BOTTOM RAIL S215542 LOWER DRAWER FRONT S215543 UPPER DRAWER FRONT W215544 LOWER BACK PANEL W195654 FILE DRAWER SIDE W195675...

  • Page 40: Maintenance

    Maintenance A215544 Maintenance Tip It may be necessary to periodically open each drawer to its full extension. This will reset the drawer slides and allow for continued smooth operation. Información de Mantenimiento Puede ser necesario el abrir cada gaveta a su máxima extención periodicamente. Este procedimiento ayuda a recomponer las correderas de las gavetas, asegurando una operación libre.

  • Page 41: Drawer Removal

    Drawer Removal A215544 Team Lift Drawer Removal (if required) Quitado de Gaveta (si es necesario) retrait du tiroir (si necessaire) Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 42 Drawer Removal A215544 Drawer Removal (if required) Quitado de Gaveta (si es necesario) retrait du tiroir (si necessaire) Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
