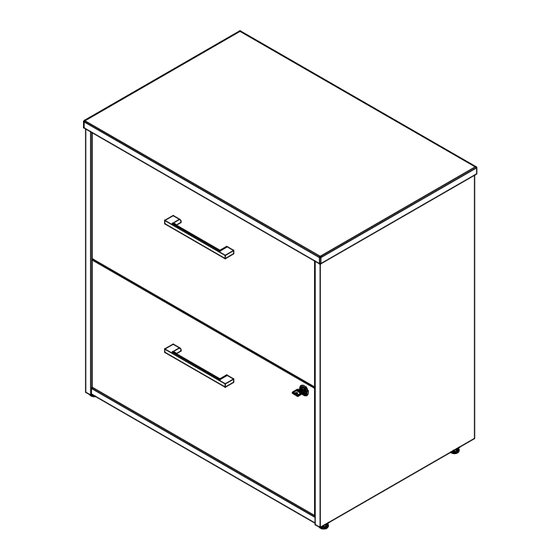

30W 2 Drawer Lateral File
Lot Code #
Instruction Sheet Number A217651
Keep manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hustle HUF130NE and is the answer not in the manual?

Questions and answers

Related Manuals for bbf Hustle HUF130NE

Summary of Contents for bbf Hustle HUF130NE

  • Page 1 30W 2 Drawer Lateral File Lot Code # Instruction Sheet Number A217651 Keep manual for future reference.
  • Page 2 Get Ready to Assemble A217651...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • • Assemble following all instructions Do not load with a television Improper may occur.
  • Page 4 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Por qué es Advertencia Hacer importante Se pueden • • • Ensamble siguiendo todas las No cargue con un televisor El ensamblaje, producir instrucciones utilizando todas...
  • Page 5 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Pourquoi c'est Avertissement Faire Ne le fais pas important Des blessures • • • Assemblez en suivant toutes les Ne chargez pas avec un Un assemblage, graves instructions en utilisant toutes...
  • Page 6 Get to know your Boards A217651 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 7 Get to know your Fasteners A217651 Fasteners are shown actual size. [ 2 ] [ 10 ] H79096 H171556 KD Bolt Double Head Quickfit TL4 [ 24 ] [ 10 ] H181468US H72988 KD Bolt KD Cam3000 [ 4 ] H83027 [ 8 ] H150333...
  • Page 8 Get to know your Hardware A217651 Hardware not to scale. [ 4 ] H94928 [ 2 ] [ 2 ] H89793 H173172 File Extrusion File Bar Drawer Support 12" (304mm) 12-1/2" (318mm) 13-5/16" (338mm) [ 4 ] H215531 H146990 [ 1 ] [ 2 ] H214977 File Extrusion...
  • Page 9 Prepare Panels STEP A217651 [ 4 ] [ 12 ] H146990 H146988 Euro 13/14mm Drawer Bracket Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 Prepare Panels STEP A217651 H215531 [ 8 ] [ 1 ] H192100 H210278 [ 2 ] #8 x 1/2" File Extrusion 26-7/8" (684mm) DWR Bracket Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 11 Assemble Panels STEP A217651 H128624 [ 8 ] (Black) #8 x .5" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 12 Assemble Panels STEP A217651 [ 8 ] H150333 #8 x 1-1/2" G, F Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 13 Attach Hardware STEP A217651 [ 2 ] [ 4 ] H173172 H192100 #8 x 1/2" Drawer Support 13-5/16" (338mm) G, F Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 14 Separate Slides STEP A217651 Slides Must Be Separated Before Assembly. After Separated, Set Aside Until Needed for Assembly. Las diapositivas deben separarse antes del montaje. Después de la separación, déjelo a un lado hasta que sea necesario. Les glissières doivent être séparées avant l'assemblage. Après la séparation, mettez de côté...
  • Page 15 Attach Hardware STEP A217651 [ 2 ] [ 12 ] H192100 14" Slide Runner Handle #8 x 1/2" Q214908 [ 4 ] [ 4 ] H83027 (Silver) M4 x 22mm G, F Orientation Orientación L'orientation H83027 G, F Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 16 Attach Hardware STEP A217651 [ 1 ] [ 1 ] H215921 H215192 [ 1 ] H192100 Bezel #8 x 1/2" Lock w/Keys Assy Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 17 Attach Hardware STEP A217651 H95581 [ 2 ] H89793 [ 2 ] File Extrusion File Bar 26-11/16" (678mm) 12-1/2" (318mm) H94928 [ 4 ] File Extrusion 12" (304mm) H95581 G, F Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 18 Prepare Panel STEP A217651 [ 2 ] H181468US 190° Minimum KD Cam3000 [ 2 ] H79096 KD Bolt Double Head Finished edge Borde acabado Bord fini Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 Assemble Panels STEP A217651 [ 2 ] H181468US KD Cam3000 190° Minimum Finished edge Borde acabado Bord fini Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 20 Prepare Panel STEP A217651 [ 2 ] H171556 Quickfit TL4 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 21 Assemble Panels STEP A217651 [ 2 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 22 Prepare Panel STEP A217651 [ 2 ] H72988 [ 2 ] H209601 KD Bolt Leveler [ 4 ] H171556 Quickfit TL4 H171556 H72988 Safety glasses Gafas de seguridad Lunettes de protection Orientation Orientación L’orientation Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 23 Prepare Panel STEP A217651 [ 6 ] H195734 M6.3 X 13MM 14" Slide Mount [ 2 ] Q214908 [ 2 ] H192100 #8 x 1/2" [ 1 ] H184145 Orientation Anti Tip Mechanism Orientación L'orientation H192100 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 24 Assemble Panels STEP A217651 [ 6 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 25 Prepare Panel STEP A217651 [ 2 ] [ 2 ] H192100 H72988 [ 2 ] #8 x 1/2" H209601 KD Bolt [ 4 ] Leveler H171556 Quickfit TL4 [ 1 ] H214977 DWR Bracket H171556 H192100 H72988 Safety glasses Gafas de seguridad Lunettes de protection Orientation Orientación...
  • Page 26 Prepare Panel STEP A217651 [ 6 ] H195734 M6.3 X 13MM 14" Slide Mount [ 2 ] Q214908 Orientation Orientación L'orientation Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 27 Assemble Panels STEP A217651 [ 6 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 28 Prepare Panel STEP A217651 [ 6 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 29 Assemble Panels STEP A217651 [ 6 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 30 Insert Drawer STEP A217651 Move arm to locked position (click) Mueva el brazo a la posicion bloqueada (haga clic) Déplacer le bras en position verrouillée (cliquer) Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 31 Attach Hardware STEP A217651 [ 1 ] H184144 Anti Tip Wedge [ 2 ] H192100 #8 x 1/2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 32 Insert Drawer STEP A217651 Close lower drawer Cerrar cajón inferior Fermer le tiroir inférieur Move arm to locked position (click) Mueva el brazo a la posicion bloqueada (haga clic) Déplacer le bras en position verrouillée (cliquer) Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 33 Attach Hardware STEP A217651 [ 1 ] H184144 Anti Tip Wedge [ 2 ] H192100 #8 x 1/2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 34 Drawer Adjustment STEP A217651 DRAWER FRONT VIEW REQUIRED TOOL: PHILLIPS SCREWDRIVER HERRAMIENTA REQUERIDA: DESTORNILLADOR PHILLIPS OUTIL REQUIS: TOURNEVIS CRUCIFORME 1. LOOSEN SCREWS. 2. ADJUST DRAWER FRONTS. 3. TIGHTEN SCREWS. 1. Afloje los tornillos 2. Ajustar frentes de cajón 3. Apriete los tornillos 1.
  • Page 35 Cleaning and Maimum Loading STEP A217651 File drawers hold letter, legal or A4 size files. Las gavetas para archivador reciben archivos de tamaño carta, legal o A4. Les tiroirs a dossiers peuvent accueillir des dossiers de format lettre, grand format ou A4. Gently clean surfaces with a damp sponge eraser.

  • Page 36: Parts List

    PARTS LIST A217651 HUF130NE LABEL QTY PART NUMBER W217652 W217653 W217654 W217655 [ 2 ] H157649 W217656 Handle W217657 W217658 W195638 W195675 W182006 HUF130PG LABEL QTY PART NUMBER W217659 W217660 W217661 W217662 [ 2 ] H217673 W217663 Handle W217664 W217665 W195638 W195675 W182006...

  • Page 37: Maintenance

    Maintenance A217651 Maintenance Tip It may be necessary to periodically open each drawer to its full extension. This will reset the drawer slides and allow for continued smooth operation. Información de Mantenimiento Puede ser necesario el abrir cada gaveta a su máxima extención periodicamente. Este procedimiento ayuda a recomponer las correderas de las gavetas, asegurando una operación libre.

  • Page 38: Drawer Removal

    Drawer Removal A217651 Team Lift Drawer Removal (if required) Quitado de Gaveta (si es necesario) retrait du tiroir (si necessaire) Push Button Presionar el botón Bouton poussoir Push Button Presionar el botón Bouton poussoir Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 39 Drawer Removal A217651 Drawer Removal (if required) Quitado de Gaveta (si es necesario) retrait du tiroir (si necessaire) Move arm to locked position (click) Mueva el brazo a la posicion bloqueada (haga clic) Déplacer le bras en position verrouillée (cliquer) Team Lift Push Button Push Button...
