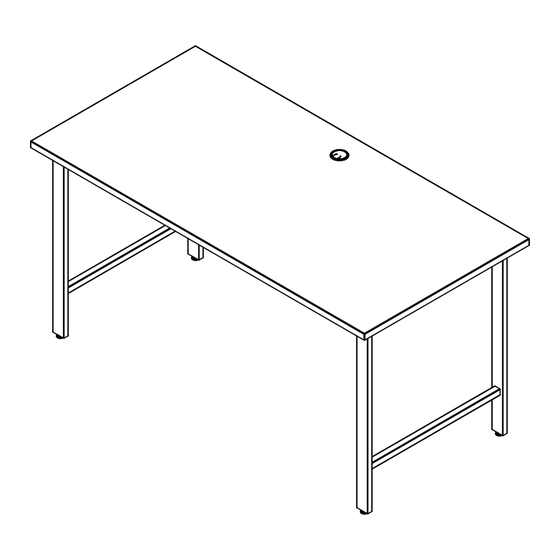

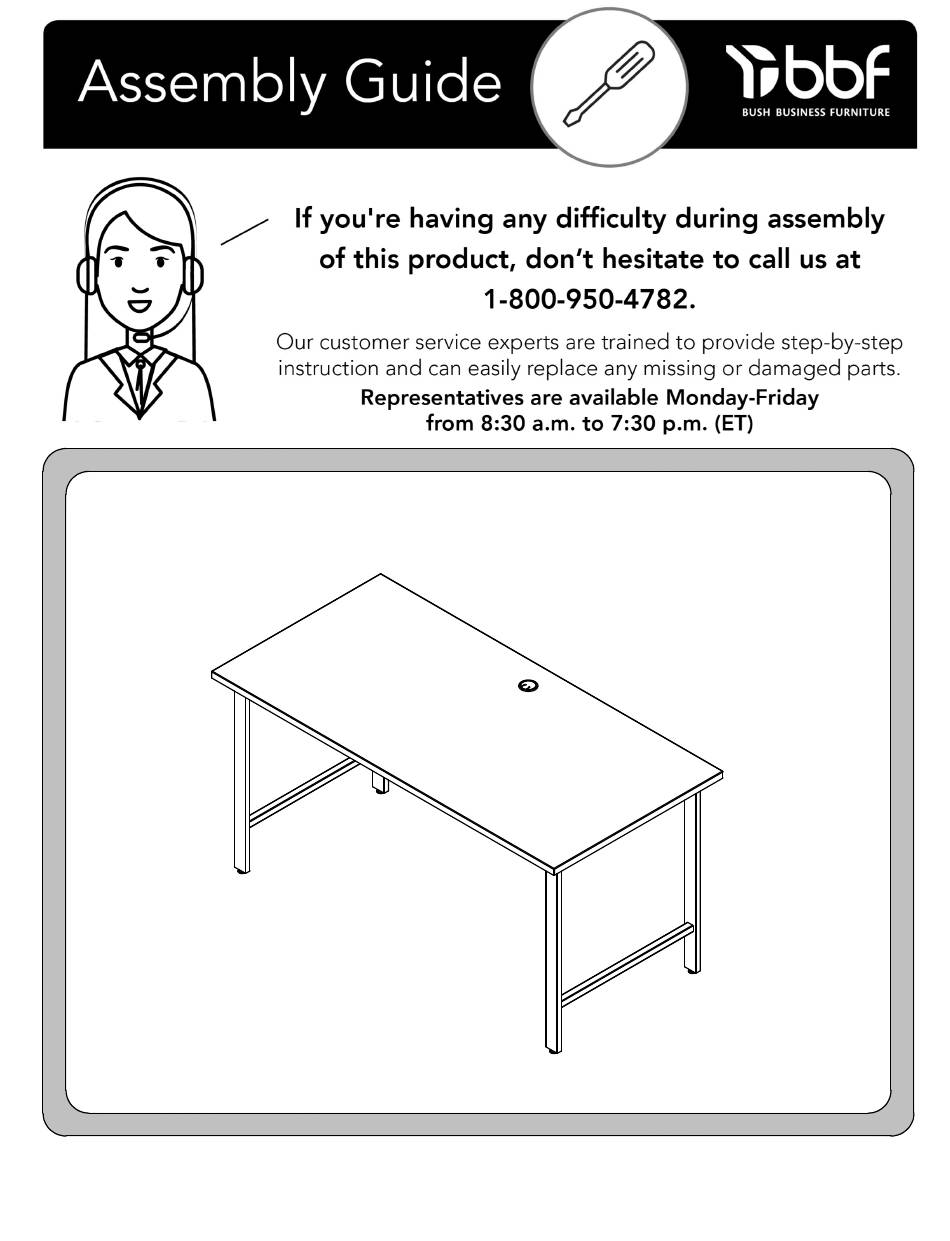

- Page 1 60W x 30D Table Desk Lot Code # Instruction Sheet Number A217849 Keep manual for future reference.
- Page 2 Get Ready to Assemble A217849...
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • Assemble following all instructions Do not move unit when Improper assembly, may occur. - Page 4 Get to know your Boards A217849 Q216500 Q216500 H181314 Q216500 H215455 Q216500 H215455 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 5 Get to know your Fasteners A217849 Fasteners are shown actual size. [ 4 ] H83436 #12 x 1-3/4" [ 4 ] H157571 M6-1 x 12mm [ 16 ] H214507 M6.35 x 22.5mm [ 4 ] H35251 (Black) #10 x 1/2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 6 Get to know your Hardware A217849 Hardware not to scale. [ 1 ] Grommet [ 1 ] H39922 Strap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 7 Prepare Legs STEP A217849 [ 4 ] H157571 M6-1 x 12mm Q216500 Q216500 H215455 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 8 Attach Hardware STEP A217849 [ 4 ] H83436 #12 x 1-3/4" H181314 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
-
Page 9: Attach Legs
Attach Legs STEP A217849 Team Lift [ 16 ] H214507 M6.35 x 22.5mm Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help. - Page 10 Maximum Loading and Cleaning STEP A217849 [ 1 ] With assistant, carefully flip unit over. Con el asistente, voltee cuidadosamente la unided. Avec l'assistant, retourner soigneusement l'unité. Grommet Gently clean surfaces with a damp sponge eraser. Team Lift Maximum Weight: 200 Lbs. Peso Máximo: 200 Libras Poids Maximum: 90.7 kilogramme Congratulations! You are all done.
-
Page 11: Parts List
PARTS LIST A217849 HUD160WH LABEL CODE PART NUMBER W217751 [ 1 ] H195624 H181314 Q216500 Grommet H215455 HUD160NE LABEL CODE PART NUMBER W217746 [ 1 ] H216048 H181314 Q216500 Grommet H215455 HUD160PG LABEL CODE PART NUMBER W217756 [ 1 ] H184440 H181314 Q216500... -
Page 12: Assembly Options
Assembly Options A217849 [ 4 ] H35251 [ 1 ] H39922 (Black) #10 x 1/2" Strap Drill (4) 1/8" [3.5mm] holes 3/8" [10mm] deep. Perfore (4) agujeros de 1/8" [3.5mm] a 3/8" [10mm] de profundido. Percer (4) trous de 1/8" [3.5mm] de diamètre et 3/8" [10mm] de profondeur. Flush Alineado Aligné... - Page 13 Assembly Options A217849 [ 4 ] H35251 [ 1 ] H39922 (Black) #10 x 1/2" Strap Drill (4) 1/8" [3.5mm] holes 3/8" [10mm] deep. Perfore (4) agujeros de 1/8" [3.5mm] a 3/8" [10mm] de profundido. Percer (4) trous de 1/8" [3.5mm] de diamètre et 3/8" [10mm] de profondeur. Flush Alineado Aligné...
