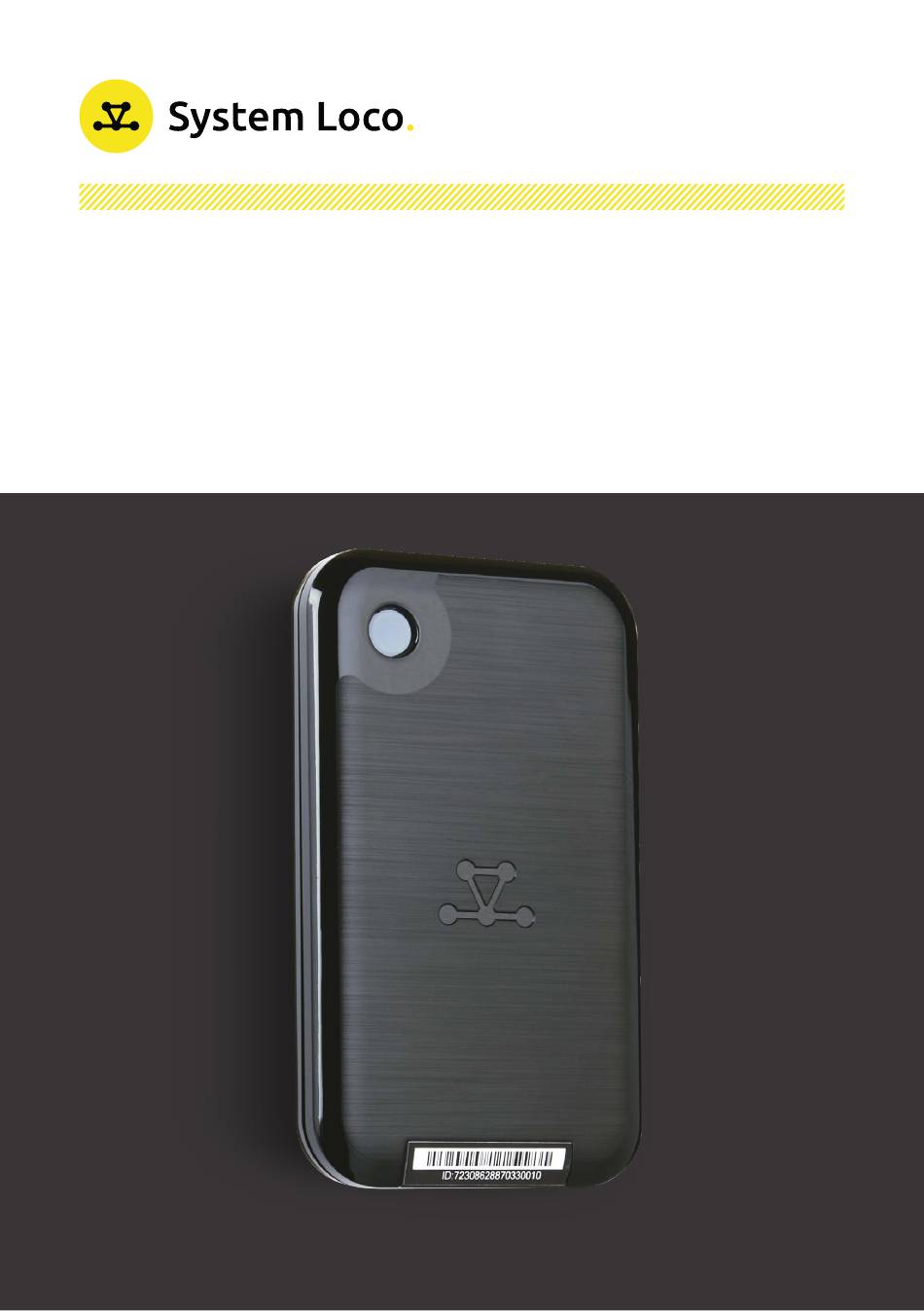

- Page 1 Quick Start Guide LocoTrack HGR4. Document Version: 1.0.3 06/28/2023...
- Page 2 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Introduction. How the System Works The LocoTrack Rechargeable HGR4 is designed for supply chain applications. It provides location reporting as well as monitoring and logging accurate temperature, light, movement, tip, impact and shock levels. It will regularly report its location, upload sensor logs.
- Page 3 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Installation and Asset Association LocoTrack Rechargeable HGR4 is provided pre-configured with default settings. All that is required is to turn on the device, and associate the device with the asset/consignment it is being attached to. To simplify this association process, each LocoTrack Rechargeable HGR4 has a unique identifier that is presented as a number and a barcode on its label.

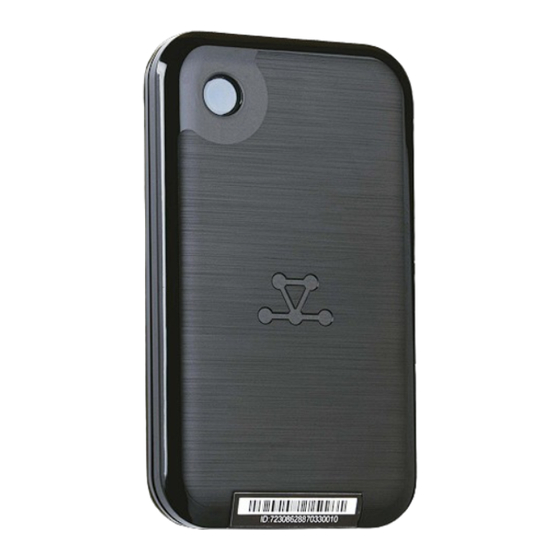

- Page 4 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Device Characteristics. Power Button / LED / Light Sensor Device ID / Barcode Certifications / Info Label www.systemloco.com Document Version: 1.0.3 06/28/2023...
-
Page 5: Operation
The button and LED light are on the face of the device in the top-right corner Press the button to turn the device on. The green light indicates the device is on and working properly. The LocoTrack HGR4 will gather and communicate data according to the profile you have created and assigned to it. - Page 6 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Re-use the HGR4 The HGR4 is a rechargeable, multi-use device. After use it can be easily recharged using off-the-shelf 10W Qi wireless chargers. www.systemloco.com Document Version: 1.0.3 06/28/2023...
- Page 7 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Getting Started - at Step 1 Access LocoAware (www.locoaware.com) and login with the credentials provided to your company’s administrator. Step 2 Once you have logged in, please create suitable profiles for how you intend to use your devices.
- Page 8 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Step 3 Before you send your device out into the field, ensure that the device has sufficient charge. You can monitor the level of charge on www.locoaware.com – 10 hours on a 5W charger is sufficient to charge the device to 80% from a flat battery.
- Page 9 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Getting Started - in the Field. When you’re ready to use the device, turn it on and attach it to your asset/shipment. Step 1 Press the power button to turn on the device. The green light means it has turned on.
- Page 10 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Step 2 Confirm on LocoAware that the device has reported to the server Find your device on www.locoaware.com by entering the Device ID / Barcode number into the search field.
- Page 11 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Select the device from the list of search results. Confirm that the last report time is current with the device’s details page. www.systemloco.com Document Version: 1.0.3 06/28/2023...
- Page 12 Step 3 Attach the device to an asset or shipment The LocoTrack HGR4 can be attached to a single asset or placed inside a box with multiple assets, the choice is yours. Doing so will allow you to track the location and condition of your assets every time the LocoTrack HGR4 reports to the server;...
- Page 13 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Step 4 Monitor the device You may monitor the device and the information it reports from within the LocoAware platform. You may use your own platform if API integration has been completed.
- Page 14 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 Certifications. Countries This product has been certified to the following standards: FCC, IC, CE, UKCA, ROHS, PTCRB, MIC, KC, NCC, ANATEL, NOM, IFETEL, RAMATEL, RCM, RAMATEL Airlines RU, AC, CA, UX, AF, NZ, AS, NH, AA, M6, OZ, 50, 5Y, AV, SN, 5C, CV, C8, CX,...
-
Page 15: Human Exposure Compliance Statement
(PCS) equipment is subject to the radio frequency radiation exposure requirements specified in § 1.1307(b), § 2.1091 and § 2.1093, as appropriate. System Loco certifies that it has determined that the LocoTrack Rechargeable complies with the RF hazard requirements applicable to the broadband PCS equipment operating under the authority of 47 CFR Part 24, Subpart E of the FCC Rules and Regulations. - Page 16 Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 FCC Rules and Industry Canada (IC) regulatory imformation Compliance Statement (Part 15.19) The equipment device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation.
-
Page 17: Rf Radiation Exposure Statement
Quick Start Guide | LocoTrack HGR4 © Copyright System Loco Ltd 2023 RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set fourth for mobile transmitting devices operation in an uncontrolled environment. End users must follow the specific operating instructions to satisfy RF exposure compliance.
