  • Page 1 Quick Start Guide LocoTrack HFR4. Document Version: 1.0.4 06/28/2023...
  • Page 2 System Loco family. The LocoTrack HFR4 comes pre-configured, has its own internet connection (no WIFI setup is required) and is ready to go. It is automatically associated with your account on the LocoAware platform, and it will automatically begin to report all LocoTag data to the LocoAware platform.
  • Page 3 The LocoTrack HFR4 is provided pre-configured with default settings that allow it to act as a gateway for your LocoTag devices. The LocoTrack HFR4 device requires a 5V mains / wall power supply unit to recharge / power the device. This is not supplied as part of the product.
  • Page 4 Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 Depending on your use case, you should plan where your LocoTrack HFR4 device is placed. The device should be fixed on a flat surface or a wall in a place where LocoTags should be tracked.

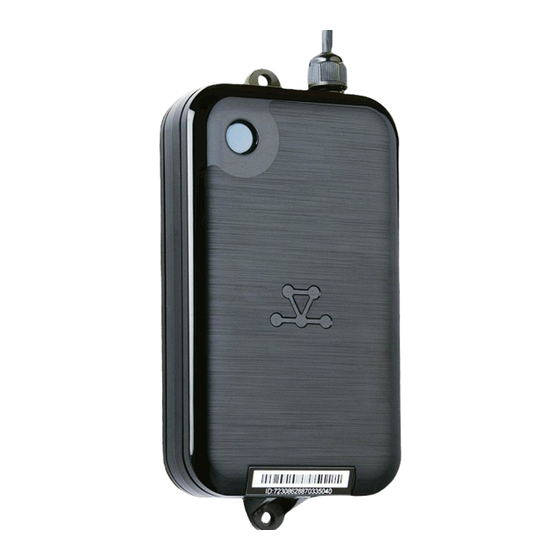

  • Page 5 Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 Device Characteristics. Power Cable Mounting Brackets Power Button / LED / Light Sensor Certifications / Info Label Device ID / Barcode www.systemloco.com Document Version: 1.0.4 06/28/2023...

  • Page 6: Operation

    Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 LocoTrack HGR4 Operation. Turn on the HGR4 The button and LED light are on the face of the device in the top-left corner Press the button to turn the device on. A green light indicates the device is on and working properly.
  • Page 7 For more on configuring devices on the LocoAware website platform please visit: https://systemloco.zendesk.com/hc/en-us/sections/360004960979-LocoAware Recharging the LocoTrack HFR4 The LocoTrack HFR4 can operate on battery life for up to 40 days at 15-minute reporting intervals. The device is rechargeable, it can be easily recharged using a 5v barrel jack power supply unit.
  • Page 8 Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 Getting Started - at Step 1 Access LocoAware (www.locoaware.com) and login with the credentials provided to your company’s administrator. Step 2 Once you have logged in, please create suitable profiles for how you intend to use your devices.
  • Page 9 Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 Step 3 Before you send your device out into the field, you should understand how your device will be used. If it will NOT be fixed to a wall and powered continuously, ensure that the device has sufficient charge.
  • Page 10 Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 Getting Started - in the Field. Step 1 Press the power button to turn on the device. The green light means it has turned on. If your administrator has disabled the button, no lights will flash www.systemloco.com...
  • Page 11 Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 Step 2 Confirm on LocoAware that the device has reported to the server Find your device on www.locoaware.com by entering the Device ID / Barcode number into the search field.
  • Page 12 Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 Select the device from the list of search results. Confirm that the last report time is current with the device’s details page. www.systemloco.com Document Version: 1.0.4 06/28/2023...
  • Page 13 Step 3 Test the device with a LocoTag Any activated LocoTag or LocoTrack configured as a Tag will begin reporting through the switched on LocoTrack HFR4 as soon as they come into range, 20m (65.6ft) indoors and 80m (262.5ft) outdoors. www.systemloco.com Document Version: 1.0.4...
  • Page 14 © Copyright System Loco Ltd 2023 Step 4 Monitor the device Monitor the LocoTrack HFR4 through the LocoAware platform. In addition, monitor any LocoTag devices on the LocoAware platform by searching for them (see Getting Started – in the field).

  • Page 15: Human Exposure Compliance Statement

    (PCS) equipment is subject to the radio frequency radiation exposure requirements specified in § 1.1307(b), § 2.1091 and § 2.1093, as appropriate. System Loco certifies that it has determined that the LocoTrack Rechargeable complies with the RF hazard requirements applicable to the broadband PCS equipment operating under the authority of 47 CFR Part 24, Subpart E of the FCC Rules and Regulations.
  • Page 16 Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 FCC Rules and Industry Canada (IC) regulatory imformation Compliance Statement (Part 15.19) The equipment device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation.

  • Page 17: Rf Radiation Exposure Statement

    Quick Start Guide | LocoTrack HFR4 © Copyright System Loco Ltd 2023 RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set fourth for mobile transmitting devices operation in an uncontrolled environment. End users must follow the specific operating instructions to satisfy RF exposure compliance.
