5 Shelf Bookcase
Lot Code #
Instruction Sheet Number A191581B
Keep manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Office 500 OFB136BW and is the answer not in the manual?

Questions and answers

Related Manuals for bbf Office 500 OFB136BW

Summary of Contents for bbf Office 500 OFB136BW

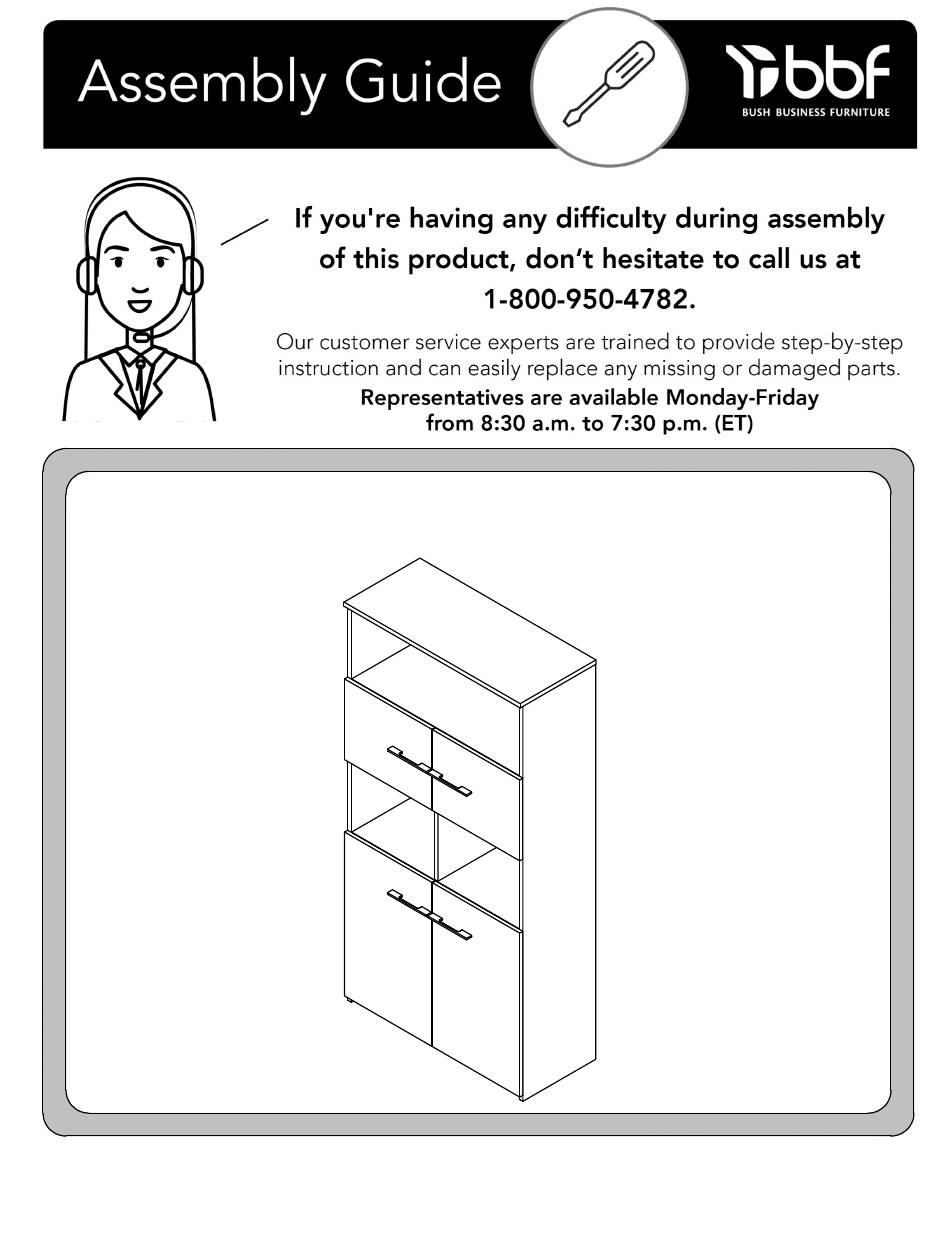

  • Page 1 5 Shelf Bookcase Lot Code # Instruction Sheet Number A191581B Keep manual for future reference.
  • Page 2 Get Ready to Assemble A191581B...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Why it's Warning Don't important Serious • • Assemble following all instructions using all Do not move unit when Improper injury may indicated parts and hardware provided.
  • Page 4 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Pourquoi c'est Avertissement À faire À ne pas faire important Peut • • Assembler en suivant toutes les instructions et Ne pas déplacer le meuble Un assemblage, entraîner des...
  • Page 5 Get to know your Boards A191581B Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 6 Get to know your Fasteners A191581B Fasteners are shown actual size. [ 16 ] H28917 [ 21 ] H171556 (Silver) #6 x 1/2" Quickfit TL4 [ 21 ] H181468US [ 8 ] H108982 M4 x 20mm KD Cam3000 [ 2 ] H38169 [ 1 ] H23491...
  • Page 7 Get to know your Hardware A191581B Hardware not to scale. [ 8 ] [ 8 ] H126364 H126359 Mounting Plate Hinge [ 4 ] H126396 [ 4 ] H191524 Pull Shelf Pin Sleeve [ 1 ] H215406 [ 4 ] H23604 Shelf Pin Bumper (10) per pack...
  • Page 8 Prepare Panels STEP A191581B [ 8 ] H28917 [ 4 ] H126359 (Silver) #6 x 1/2" [ 4 ] H108982 Hinge M4 x 20mm [ 2 ] H191524 Pull [ 4 ] H215406 Bumper H108982 H28917 H108982 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 9 Prepare Panels STEP A191581B [ 8 ] H28917 [ 4 ] H126359 (Silver) #6 x 1/2" [ 4 ] H108982 Hinge M4 x 20mm [ 2 ] H191524 Pull [ 4 ] H215406 Bumper H108982 H108982 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 Prepare Panels STEP A191581B [ 1 ] H171556 Quickfit TL4 [ 2 ] H38169 Wood Dowel 8 x 30 Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 11 Assemble Panels STEP A191581B [ 1 ] H181468 KD Cam3000 190° Minimum [ 1 ] Cover Cap [ 1 ] H23491 (Black) #10 x 2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 12 Prepare Panel STEP A191581B [ 8 ] [ 4 ] H171556 H126364 Quickfit TL4 Mounting Plate Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 13 Assemble Panels STEP A191581B [ 4 ] H181468 KD Cam3000 190° Minimum [ 4 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 14 Assemble Panels STEP A191581B [ 2 ] H181468 KD Cam3000 190° Minimum [ 2 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 15 Assemble Panels STEP A191581B [ 2 ] H181468 KD Cam3000 190° Minimum Finished edge Borde acabado Bord fini Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 16 Prepare Panel STEP A191581B [ 8 ] [ 4 ] H171556 H126364 Quickfit TL4 Mounting Plate Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 17 Assemble Panels STEP A191581B [ 8 ] H181468 KD Cam3000 190° Minimum [ 6 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 18 Prepare Panel STEP A191581B [ 4 ] H171556 Quickfit TL4 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 Assemble Panels STEP A191581B [ 4 ] H181468 KD Cam3000 190° Minimum [ 4 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 20 Assemble Panels STEP A191581B Team Lift [ 60 ] Nail 19mm Safety glasses Gafas de seguridad Lunettes de protection Grain to inside Grano para el interior Grain de l'intérieur Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 21 Install Anti-Tip STEP A191581B Secure unit to the wall with a tip-over restraint. Team Lift Unidad de seguro a la pared con un sistema de retención de un vuelco. Fixer l'unité au mur avec un dispositif de retenue renversement. 1. Place unit in desired location. 2.
  • Page 22 Install Anti-Tip STEP A191581B WALL STUD ATTACHMENT Drill 1/8" hole 2" deep at mark on wall. Taladro 1/8 "agujero 2" de profundidad en la marca en la pared. Percer 1/8 "trou de 2" de profondeur à la marque sur le mur. [ 1 ] Z181412 [ 1 ]...
  • Page 23 Install Anti-Tip STEP A191581B Team Lift [ 1 ] [ 1 ] Z107572 Z181412 #8 x 1-1/2" Connecting Plate Drill 1/8" hole 1/2" deep at mark on unit. Taladro 1/8 "agujero de 1/2" de profundidad en la marca de la unidad. Percer 1/8 "trou 1/2"...
  • Page 24 Attach Panels STEP A191581B Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 25 Attach Doors STEP A191581B Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 26 Insert Panel STEP A191581B [ 4 ] H23604 Shelf Pin [ 4 ] H126396 Shelf Pin Sleeve Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 27 Maximum Loading and Cleaning STEP A191581B Maximum Weight: 0 Lbs. Peso Máximo: 0 Libras Gently clean surfaces with a Poids Maximum: 0.0 kilogramme damp sponge eraser. Maximum Weight: 50 Lbs. Peso Máximo: 50 Libras Poids Maximum: 22.6 kilogramme Maximum Weight: 25 Lbs. Peso Máximo: 25 Libras Poids Maximum: 11.3 kilogramme Maximum Weight: 50 Lbs.

  • Page 28: Parts List

    PARTS LIST A191581B OFB136BW OFB136SG W191582 W193223 W191583 W193224 W191584 W193225 W191585 W193226 W191587 W193227 W191588 W193228 W191590 W193230 W191591 W193231 W191592 W193232 W191593 W193233 W191594 W193395 W191595 W193396 W191589 W193229 [ 17 ] H191633 [ 17 ] H92521 Cover Cap Cover Cap OFB136MH W193077...
