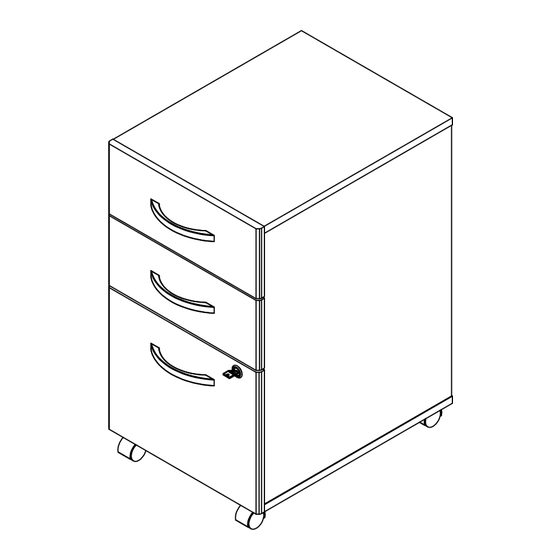

  • Page 1 16" Wide 3 Drawer Pedestal Lot Code # Part Number A179151L Keep manual for future reference.
  • Page 2 Get Ready to Assemble A179151L...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • Assemble following all instructions Do not move unit when Improper assembly, may occur.
  • Page 4 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Por qué es Advertencia Hacer importante Pueden • • Realice el montaje siguiendo todas No mueva la unidad cuando El montaje, uso o producirse las instrucciones y utilizando todas esté...
  • Page 5 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Pourquoi c'est Avertissement À faire À ne pas faire important Peut entraîner • • Assembler en suivant toutes les Ne pas déplacer le meuble Un assemblage, des blessures instructions et en utilisant toutes les...
  • Page 6 Get to know your Boards A179151L Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 7 Get to know your Hardware A179151L Fasteners are shown actual size. [ 1 ] H215190 [ 16 ] H192100 #8 x 1/2" H94928 [ 1 ] [ 2 ] Z29794 File Extrusion 12" (304mm) Caster SWL [ 2 ] H210967 [ 2 ] Z29795 File Extrusion...

  • Page 8: Install Handles

    Install Handles STEP A179151L Refer to PARTS LIST page for correct part numbers. Consulte la página LISTA DE PIEZAS para obtener el número de pieza correctos. Référez-vous à la page LISTE DES PIÈCES pour le numéro de pièce corrects. [ 6 ] [ 3 ] SCREW HANDLE...
  • Page 9 Remove Drawer STEP A179151L Push Button Presionar el botón Bouton poussoir Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.

  • Page 10: Install Hardware

    Install Hardware STEP A179151L [ 1 ] H94928 [ 2 ] H210967 File Extrusion 12" (304mm) File Extrusion 15-1/16" (383mm) [ 1 ] H215190 H94928 Unlock Abra Deverouillage Lock Cierre con llave Verouillage Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 11 Insert Drawer STEP A179151L Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.

  • Page 12: Install Casters

    Install Casters STEP A179151L Team Lift Swivel caster. [ 2 ] Rueda movible. Z29794 Roulette pivotante. Caster SWL [ 16 ] H192100 Non−swivel caster. [ 2 ] Z29795 Rueda sin movimiento. #8 x 1/2" Roulette non−pivotante. Caster FXD Non−swivel caster. Rueda sin movimiento.
  • Page 13 Drawer Adjustment STEP A179151L DRAWER FRONT VIEW REQUIRED TOOL: PHILLIPS SCREWDRIVER HERRAMIENTA REQUERIDA: DESTORNILLADOR PHILLIPS OUTIL REQUIS: TOURNEVIS CRUCIFORME 1. LOOSEN SCREWS. 2. ADJUST DRAWER FRONTS. 3. TIGHTEN SCREWS. 1. Afloje los tornillos 2. Ajustar frentes de cajón 3. Apriete los tornillos 1.

  • Page 14: Loading And Cleaning

    Loading and Cleaning STEP A179151L Gently clean surfaces with a damp sponge eraser. Maximum Weight: 100 Lbs. Peso Máximo: 100 Libras Poids Maximum: 45 kilogramme Maximum Weight: 15 Lbs. Peso Máximo: 15 Libras Poids Maximum: 6.8 kilogramme Maximum Weight: 30 Lbs. Peso Máximo: 30 Libras Poids Maximum: 13.6 kilogramme Congratulations! You are all done.
  • Page 15 PARTS LIST A179151L WC24453SU WC12953SU A [1] Case Assembly A [1] Case Assembly F [2] W215021 F [2] W213294 G [1] W218091 G [1] W218090 H [1] S218786 H [1] S218786 [2] S218785 [2] S218785 [ 3 ] [ 3 ] H128158 Z92376 Handle...
  • Page 16 PARTS LIST A179151L SCF216HCSU WC72453SU A [1] Case Assembly A [1] Case Assembly F [2] W215021 F [2] W215023 G [1] W218091 G [1] W218094 H [1] S218786 H [1] S218786 [2] S218785 [2] S218785 [ 3 ] Z92376 [ 3 ] Z92376 Handle Handle...
  • Page 17 PARTS LIST A179151L SCF216BWSU SCF216MHSU A [1] Case Assembly A [1] Case Assembly F [2] W215015 F [2] W215016 G [1] W218097 G [1] W218098 H [1] S218786 H [1] S218786 [2] S218785 [2] S218785 SCF216PGSU SCF216SGSU A [1] Case Assembly A [1] Case Assembly F [2] W215017 F [2] W215018...

  • Page 18: Drawer Removal

    Drawer Removal A179151L Drawer Removal (if required) Quitado de Gaveta (si es necesario) retrait du tiroir (si necessaire) Push Button Presionar el botón Bouton poussoir Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 Drawer Insertion A179151L Drawer Installation (if required) Instalacion de la Gaveta (si es necesario) Installation du tiroir (si necessaire) Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
