IQAmerica WD-2010 Instruction Manual

EN
Instruction Manual
WD-2010 / WD-2060-T

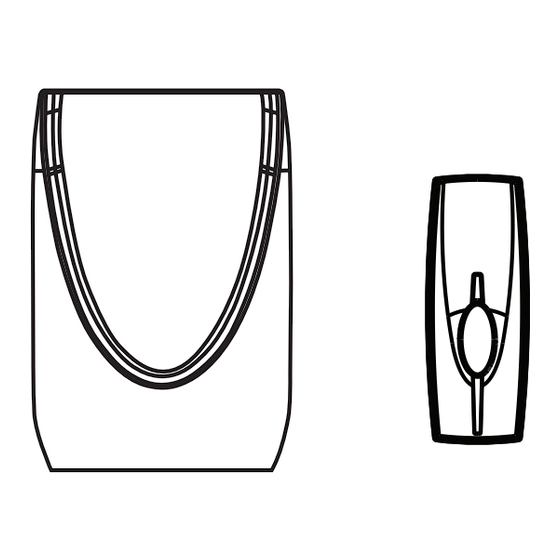

Portable Wireless Door
Chime Kit
WD-2010-F / WD-2060-TFA
Portable LED Alert Wireless
Door Chime Kit
This package contains:
WD-2010 / WD-2010-F
CR2032
Chime Pushbutton
Battery
WD-2060-T / WD-2060-TFA
CR2032
Chime
Pushbutton x 2
Battery x 2
Battery Caution & Disposal Information:
1. Do not mix old and new batteries.
2. Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Ni-Cad, NiMH,
or Lithium) batteries.
3. Do not dispose of batteries in fire.
4. Batteries should be recycled or disposed of as per local guidelines.
Keep out of reach of children
Product contains a coin/button cell
WARNING
● INGESTION HAZARD: DEATH or serious injury can
occur if ingested.
● A swallowed button cell or coin battery can cause
Internal Chemical Burns in as little as 2 hours.
● KEEP new and used batteries OUT OF REACH OF
CHILDREN.
● Seek immediate medical attention if a battery is
suspected to be swallowed or inserted inside any part
of the body.
To get the online version of
instruction manual for
English, French and Spanish,
please visit: www.iqameri-
ca.com or scan QR code.
Screw
x 2
Instruction Double-sided Wall Plug
Manual Tape x 2
Instruction Double-sided
Manual Tape x 2
Setup:
WD-2010 / WD-2010F
WD-2060-T / WD-2060-TFA
Screw
x 4
Wall Plug
x 4
1: Press and hold the 'VOL' button on the Door Chime until the Chime
goes 'Beep Beep' (6 seconds)
2: Press the Pushbutton within 60 seconds to code the pushbutton to
the chime.
For WD-2060-T, press the second pushbutton within 60 seconds to
code the pushbutton to the chime. Or refer to Adding Additional
Pushbutton section.
3: The Chime will ring to confirm setup.
Note: Maximum of 6 pushbuttons can be coded to a single Chime.
1: Place a small flat screwdriver into
the locking clip on the base of the
pushbutton.
2: Gently twist.
3: The back plate will unclip.
1: Insert CR2032 battery (Supplied)
into the battery holder.
For WD-2060-T, insert batteries
into 2 pushbuttons.
2: Make sure the positive side is
facing upwards.
3: Replace back plate.
Warning: Make sure that the batteries are
replaced correctly to avoid battery failure. Only
replace with same or equivalent type.
1: Remove the battery cover of the
Door Chime.
2: Insert 3 X 1.5V Size 'AA'
batteries (Not Supplied).
3: Make sure the Positive/Negative
terminals match the internal
markings.
4: Chime will 'Beep' on Start up.
5: Replace the battery cover.
WD-2010-F /
WD-2010 /
WD-2060-TFA
WD-2060-T
Within
0424E1
