IQAmerica WD-3010 Instruction Manual

EN
Instruction Manual
WD-3010

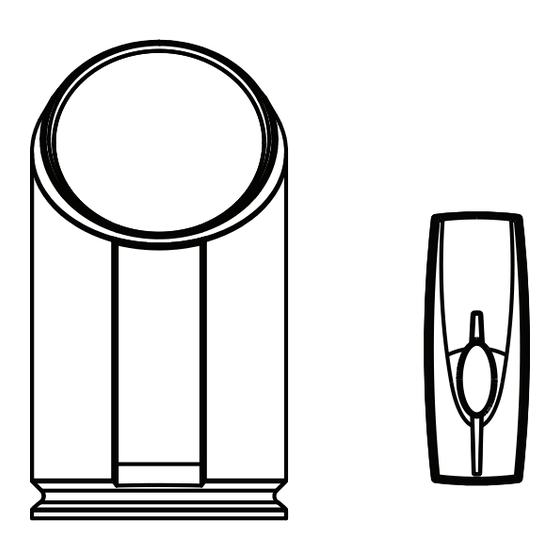

Extra Loud Portable
Wireless Door Chime Kit
This package contains:
CR2032
Chime Pushbutton
Battery
Battery Caution & Disposal Information:
1. Do not mix old and new batteries.
2. Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Ni-Cad, NiMH,
or Lithium) batteries.
3. Do not dispose of batteries in fire.
4. Batteries should be recycled or disposed of as per local guidelines.
Keep out of reach of children
Product contains a coin/button cell
WARNING
● INGESTION HAZARD: DEATH or serious injury can
occur if ingested.
● A swallowed button cell or coin battery can cause
Internal Chemical Burns in as little as 2 hours.
● KEEP new and used batteries OUT OF REACH OF
CHILDREN.
● Seek immediate medical attention if a battery is
suspected to be swallowed or inserted inside any part
of the body.
Setup:
Warning: Make sure that the batteries are
replaced correctly to avoid battery failure. Only
replace with same or equivalent type.
To get the online version of
instruction manual for
English, French and Spanish,
please visit: www.iqameri-
ca.com or scan QR code.
Screw
x 2
Instruction Double-sided Wall Plug
Manual Tape x 2
1: Place a small flat screwdriver into
the locking clip on the base of the
pushbutton.
2: Gently twist.
3: The back plate will unclip.
1: Insert CR2032 battery (Supplied)
into the battery holder.
2: Make sure the positive side is
facing upwards.
3: Replace back plate.
1: Remove the battery cover of the
Door Chime.
2: Insert 3 X 1.5V Size 'C' batteries
(Not Supplied).
3: Make sure the Positive/Negative
terminals match the internal
markings.
4: Chime will 'Beep' on Start up.
5: Replace the battery cover.
Functions:
Melody Selection
To select a melody for the Door Chime
1: Remove the Back Plate from the
2: Press the Melody Select button.
3: The chime will play the newly selected
4: Press again to select the next melody.
Note: For Front/Back door setup, select a
different melody in one of the pushbuttons.
6 Selectable Melodies
4: Solo
1: Tubular 3-Note
5: Tubular Score
2: Big Ben
6: Clarinet
3: Tubular 2-Note
Volume Control:
To select the Chime Volume level, press the 'VOL' button
on the chime. There are 4 selectable volume levels, the
Door Chime is pre-set to loudest volume setting.
LED Flash Alert:
FLASH: Button
FLASH: ON
Press to switch the
LED Light will flash
LED Alert On or Off
NOTE: With LED Alert enabled, the LED light will flash after the ringtone
during each activation.
1: Press and hold the 'VOL'
button on the Door Chime
until the Chime goes 'Beep
Beep' (6 seconds)
2: Press the Pushbutton within
60 seconds to code the
pushbutton to the chime.
3: The Chime will ring to
confirm setup.
Note: Maximum of 6
pushbuttons can be coded to a
single Chime.
pushbutton.
sound.
7: Saxophone
8: Morning Dew
Default
Volume
FLASH: OFF
Chime will 'Beep'
0424E1
