Summary of Contents for Cougartron FL10

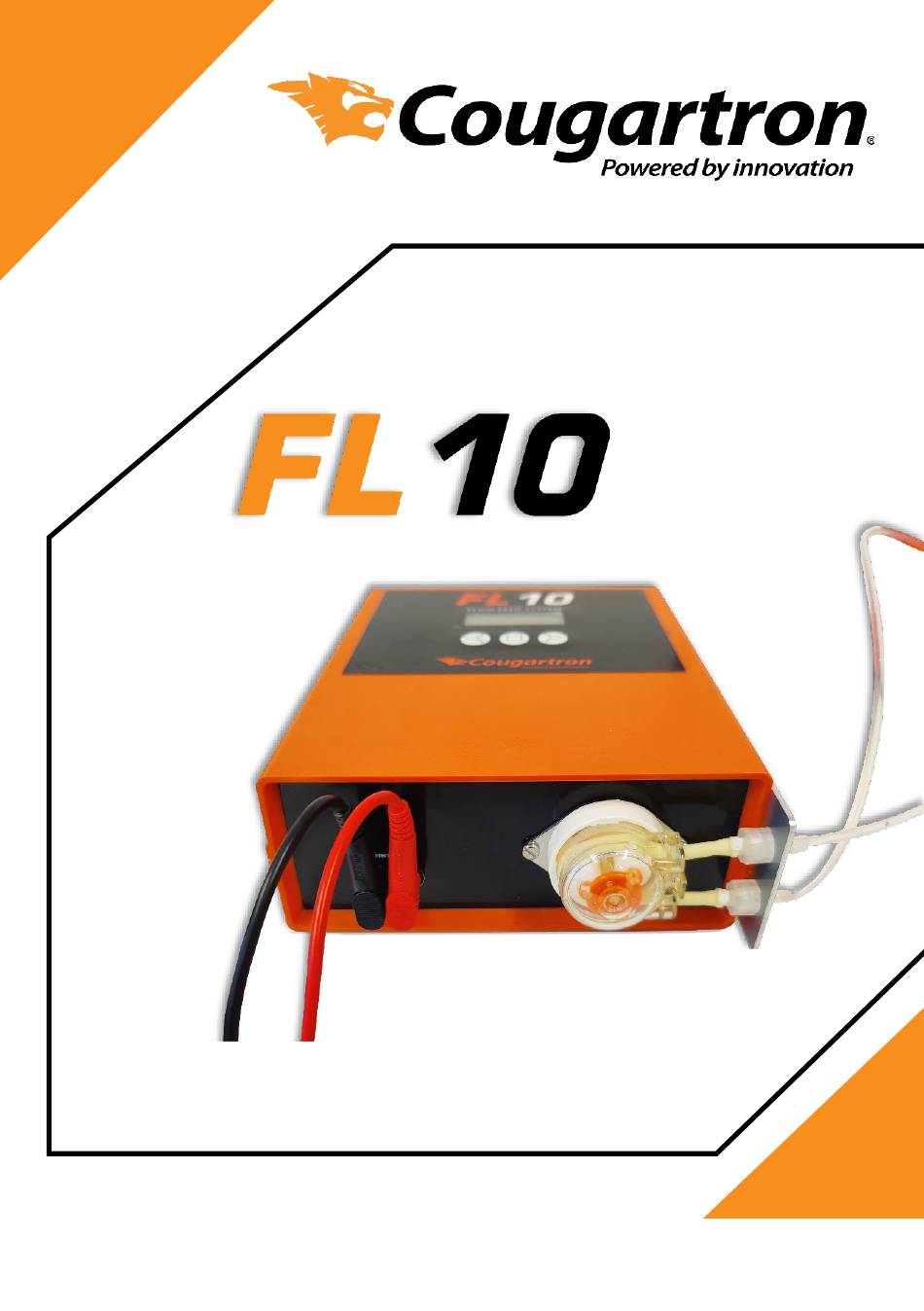

  • Page 1 USER MANUAL...
  • Page 2 Congratulations Dear Customer, Thank you for purchasing Cougartron FL10 Fluid Feed Machine. We would like to reward you with an exclusive extended 2-year warranty! To qualify for this, please fill in the all the information below and send it to us by the below details;...
  • Page 3 Keep it with the machine at all times. The purpose of this manual is to provide users with the necessary operating procedures and precautions, essential for the safe and proper operation of the Cougartron FL10 Fluid Feed Machine. Due to continuous improvements, BM Group International ApS reserves the right to make specification changes.
  • Page 4: Table Of Contents

    Safety Information ..............................4 Description of Apparatus ............................6 FL10 Control Panel ............................6 FL10 Clamp Lead ............................7 FL10 Handle and Wand ..........................8 Cleaning Method ................................ 8 Preparation ..............................8 Assembly of the FL10 ........................... 9 Cleaning Fluid..............................9 Operation .................................
  • Page 6: Introduction

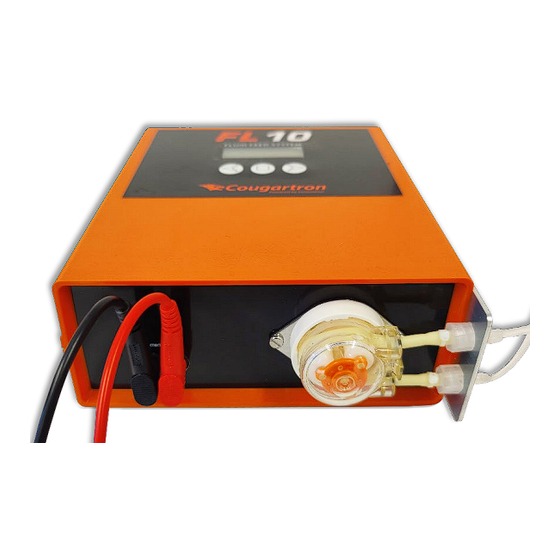

    1. Introduction The Cougartron FL10 is a fluid pump unit which is designed to work with InoxPower, InoxMuscle and Proplus weld cleaning units. It enables the user to control the amount of CGT- 550 or CGT- 350 which is delivered to the brush and there by speeding up the cleaning process.
  • Page 7: Technical Specification

    2. Technical Specification Please refer to the details below before plugging Fluid Feed FL10 in and using it. It is important that these specifications are read and understood by the user. The equipment must not be used with a detachable mains supply cord that has an inadequate rating.
  • Page 8: Warning Symbols

    3. Warning Symbols Read Instructions and complete manual before use. Not to be used near a fire or naked flame. Serious damage could occur. To be disposed of according to the WEEE directive. All the electronics in this equipment are double insulated.
  • Page 9: Safety Information

    Ensure that all required equipment is available. Do not use the Cougartron FL10 for any purpose other than that described in this manual. Failure to observe this warning may result in permanent damage to the Cougartron FL10, cause damage to the workpiece, cause injury to the operator and void the warranty.
  • Page 10 Contact your Cougartron supplier to have the Cougartron FL10 inspected and repaired. Do not short out the terminals, or use the Cougartron FL10 with a  damaged lead or cables. Doing so may permanently damage the Cougartron FL10 and cause damage to the workpiece being cleaned.
  • Page 11: Description Of Apparatus

    5.1 FL10 Control Panel The mains power ON/OFF switch is on the rear of the unit. The Control Panel is on the top of the Cougartron FL10 containing the priming, manual and auto settings. It also has a diagnostic function.
  • Page 12: Fl10 Clamp Lead

    Clamp connection to handle lead of the weld cleaner. 5.2 FL10 Clamp Lead The clamp is fixed around the handle lead on the weld cleaner and detects current draw in the auto setting. When the brush is touched on the workpiece the current is detected and the pump starts to deliver fluid.
  • Page 13: Fl10 Handle And Wand

    5.3 FL10 Handle and Wand The handle lead is 4 meters long (13ft), and delivers the fluid to the brush. It is important that fluid connections are not put under strain and are maintained leak free.
  • Page 14: Assembly Of The Fl10

    7. Begin to clean. 8. When desired surface finish is achieved, swap the fluid inlet tub to a water contain and turn the setting to priming to flush water through the system. 9. Once complete turn the Cougartron FL10 Power Control to OFF.
  • Page 15: Power And Function Settings

    7. Power and Function Settings 7.1 FL10 Pump Settings Choose the cleaning intensity required by selecting the appropriate setting using the Power Control. The below settings are what we recommend; 10-20 amps for thin material and light discoloration  20-25 amps for normal tig welds and mild discoloration ...
  • Page 16: Maintenance

    Rinse clamp with water to remove solution and prevent corrosion.  Use a wet cloth to wipe fluid splashes off the Cougartron FL10  control unit. After some time, splashes and marks may accumulate and become difficult to remove.
  • Page 17: Consumables

    The insulating shroud may become damaged or heat affected. If this happens, replacement shrouds may be purchased. 9.3 Cougartron Fluids A range of genuine Cougartron fluids are available. Please check with your local Cougartron distributor for details of fluids available in your region. Types of fluids include: Pre-Weld Cleaning Treatment: to remove dirt and oil prior to ...
  • Page 18: Troubleshooting

    10. Troubleshooting If the Cougartron FL10 is not operating correctly, please refer to the following trouble shooting guide before contacting your Cougartron distributor. 10.1 Fluid not pumping but pump in turning Check all fluid lines and connections for holes and replace as ...
  • Page 19: Warranty

    You must include your full name, address and contact telephone number and the details of the defect in relation to which you make your claim. Cougartron will tell you whether you need to return the goods to BM Group International ApS or the approved local distributor.
  • Page 20  or facilities arising out of or in connection with the use of the Cougartron Machine, or unless otherwise expressly stated, any right to be reimbursed or  compensated for physical or financial injury, loss, damage, expense,...
  • Page 21 Proudly Distributed By: Machine Serial Number: ____________________________ WWW.COUGARTRON.COM WELD CLEANING SURFACE POLISHING MARKING  ...
