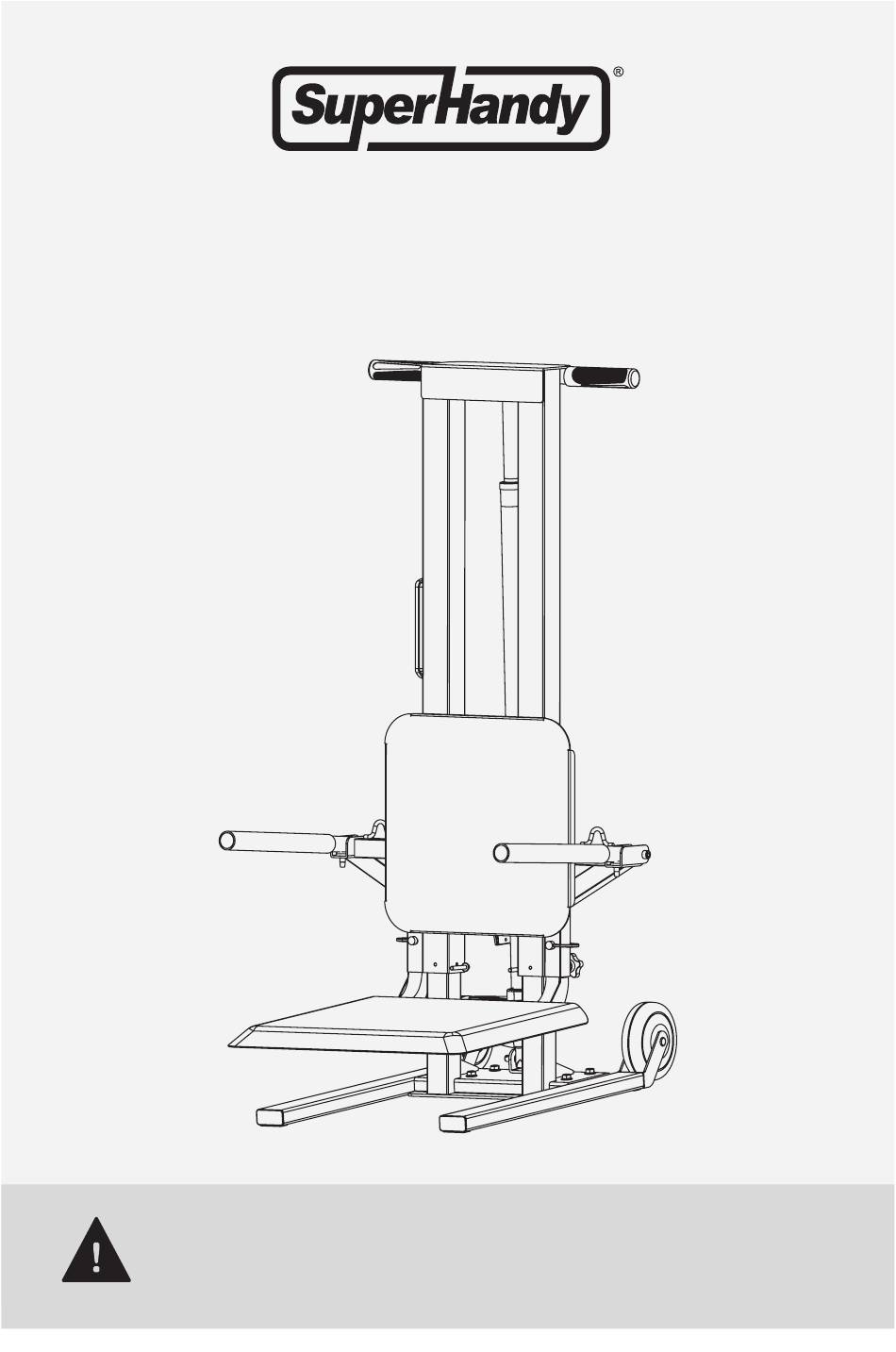

440Lbs Floor Lift l GUT168
Operator's Manual
Warning: Please read and thoroughly understand all instructions before operating. Failure to follow
safety rules and other basic safety precautions may result in serious personal injury. Keep these
instructions in a safe and easily accessible place so that they can be referred to when needed. Retain
these instructions to assist in future servicing.
superhandyus.com
© SuperHandy All Rights Reserved | Version 1.0
Advertisement
Table of Contents
Related Manuals for Super Handy GUT168
Summary of Contents for Super Handy GUT168
- Page 1 440Lbs Floor Lift l GUT168 Operator’s Manual Warning: Please read and thoroughly understand all instructions before operating. Failure to follow safety rules and other basic safety precautions may result in serious personal injury. Keep these instructions in a safe and easily accessible place so that they can be referred to when needed. Retain these instructions to assist in future servicing.
-
Page 2: Safety Instruction
7.Do not place the floor lift in overly hot areas, as it contains batteries. 8.When not in use for a long time, fully charge the battery before storing to prolong its life. 2. TECHNICAL SPECIFICATIONS SKU# GUT168 Working Load Capacity 440Lbs. (200Kgs) Lifting Height (Above Ground) 1.2~28.7in (30~730mm) -
Page 3: Know Your Machine
3. KNOW YOUR MACHINE Transport Handle Linear Actuator Wired Remote Folding Armrest AC Power Adapter (Charger) Battery Pack Safety belt Seat Wheel Base... -
Page 4: Contents Supplied
4. CONTENTS SUPPLIED The floor lift comes partially assembled and is shipped in carefully packed carton. After all the parts have been removed from the carton, you should have: Main body of the lift Left & Right Base Seat Safety belt Wired remote M8x20 Bolt, 10pcs D-type Pin, 2pcs... - Page 5 5.2 Wired Remote Connector (See Fig.2) Connect the connector of the wire remote to the connector of the actuator wire as shown in the figure below. Fig.2 After the connecting, you can place the wired Fig.3 remote on the main body. It will adhere to the surface through magnetic attraction, ensuring that you don't lose the control handle and can easily pick it up and place it back.
-
Page 6: Operation
5. 4 Safety Belt (See Fig.5 & 6) Lock the safety belt's snap hook onto the belt anchor point, just like in the following Figures. Fig.5 Fig.6 Snap hook Buckle & Clasp 6. OPERATION 6.1 Dual Power Mode. This Floor lift features two power supply modes. When the battery is charged, it can be used directly as described below. - Page 7 6.4 Fasten the safety belt. (See Fig.8) Fig.8 After the user has moved onto the seat, it is necessary to lock the safety belt buckle, adjust the length of the safety belt, and ensure that the user is sitting stably on the seat. 6.5 Lifting or Lowering.
-
Page 8: Maintenance And Storage
7. MAINTENANCE & STORAGE ● The floor lift does not require regular maintenance. Keeping the battery charged helps to extend its lifespan. ● Although the floor lift is very durable and functions well both indoors and outdoors, it is recommend- ed to store it indoors when not in use.
