Kogan KAMFRZU238A User Manual

Kogan KAMFRZU238A User Manual

238l frost free upright freezer
Hide thumbs

Advertisement

Table of Contents

238L FROST FREE
UPRIGHT FREEZER
KAMFRZU238A & KAMFRZU238B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAMFRZU238A and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KAMFRZU238A

Summary of Contents for Kogan KAMFRZU238A

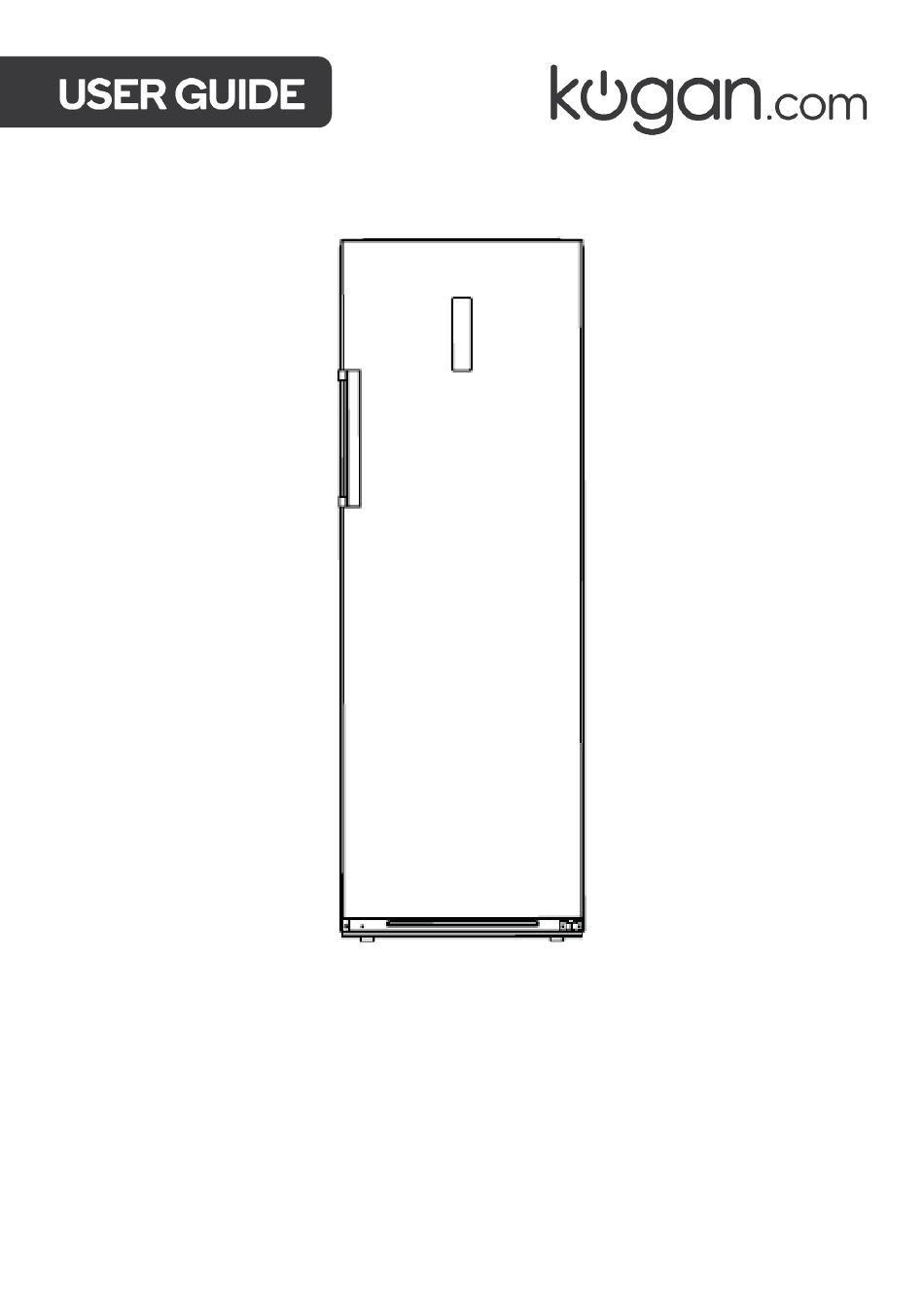

  • Page 1 238L FROST FREE UPRIGHT FREEZER KAMFRZU238A & KAMFRZU238B...

  • Page 2: Table Of Contents

    Safety & Warnings Overview Installation Operation Cleaning & Care Troubleshooting...

  • Page 3: Safety & Warnings

    SAFETY & WARNINGS • Read this user guide carefully before use and retain this user guide for future reference. • This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farmhouses and by clients in hotels, motels and other residential type environments;...
  • Page 4 • Children should be supervised to ensure that they do not play with the appliance. • If the power cord is damaged, it must be replaced by the Kogan.com, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 5 • If the power cord or plug shows any sign of damage, cease immediately and contact help.Kogan.com for support. • Use a dedicated electrical outlet for this appliance. Avoid sharing the outlet with other appliances.
  • Page 6 WARNING To avoid contamination of food, familiarise yourself with the following: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Regularly clean surfaces that contact food and accessible drainage systems. •...

  • Page 7: Overview

    OVERVIEW Flip up drawer Slide out drawer Notes: • For the most efficient use of energy, keep all internal items such as trays, drawers, and shelves in the original position. • This freezer is designed to be installed free standing and should not be built-in to prevent reducing the performance life.

  • Page 8: Installation

    INSTALLATION Before First Use • Unpacking: Remove all external and internal packaging. Clean the exterior with a soft, dry cloth and the interior with a damp, lukewarm cloth to remove any residue from manufacturing or shipping. • Placement: Avoid installing the freezer in a narrow recess or in direct proximity to heat sources, direct sunlight, or areas with high moisture.
  • Page 9 Space Requirements 595mm 1722mm 632mm 1015mm 1042mm...
  • Page 10 +16°C to +32°C +16°C to +38°C +16°C to +43°C If you have any doubts regarding installation, contact help.Kogan.com for support. ATTENTION The cooling performance and power consumption of the freezer may be affected by the ambient temperature, the door-opening frequency and the location of the freezer. The...
  • Page 11 Leveling Feet • To avoid vibration, the appliance must be levelled. • If required, adjust the leveling feet to compensate for an uneven floor. • The front should be slightly higher than the rear to aid in door closing. • Leveling feet can be turned easily by tipping the cabinet slightly. •...
  • Page 12 Door Handle Installation Remove the blanking plugs (A) from the door and use a Phillips head screwdriver to tightly secure the screws (C) into the screw holes (B). Assemble the screw covers (D) on the screw hole of the handle. Reverse this method for disassembly.
  • Page 13 Reversing the Door Tool required: Philips head screwdriver, Flat bladed screwdriver and the included Allen key. • Ensure the unit is unplugged and empty. • To remove the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
  • Page 14 Reversing the door: Power off the freezer and remove all objects from the door trays. Dismantle the screw hole caps, screws and handle and remove the plastic screw hole caps from the other side (refer to Door Handle Installation). Dismantle the upper hinge cover, screws and upper hinge and remove the hole cover from the other side.
  • Page 15 Dismantle the door and bottom right hinge assembly (hinge shaft & adjustable foot & hinge). Disassemble the bottom right hinge assembly and assemble the hinge shaft and adjustable foot on the other side of the hinge, then assemble the whole hinge assembly on the other side of the freezer.
  • Page 16 Take out the top left hinge and top left hinge cover from the accessory bag. Place the door on the bottom hinge and mount the top left hinge. Connect the signal line terminal with the signal line terminal Connect the signal line terminal to the door switch and connect the signal line terminal with the signal line terminal...
  • Page 17 Energy Saving Tips • Do not position the appliance near heat sources such as cookers or radiators. High ambient temperatures cause the compressor to run more frequently, increasing energy consumption. • Maintain sufficient airflow around the freezer. Ensure there is proper ventilation at the base, sides, and back of the appliance.

  • Page 18: Operation

    OPERATION Control Panel Display The setting temperature is 8 or -16°C. The setting temperature is 6 or -18°C. The setting temperature is 4 or -20°C. The setting temperature is 3 or -22°C. The setting temperature is 2 or -24°C. Quick cooling or quick freezing indicators. Buttons Temperature button.
  • Page 19 Freezer/Freezer Conversion Press the Fridge/Freezer button for 3 seconds to switch from Freezer to Fridge mode. The corresponding temperature icon will illuminate. Temperature Setting Press the Temperature button to adjust the temperature. The freezer will run according to the new temperature setting after 15 seconds. Quick Cooling Mode •...
  • Page 20 Storing Food Freezer: • The freezer compartment is specifically designed for the low temperature freezing of food, long-term storage of frozen items, and making ice cubes. • Be mindful of the star classifications (4-star, 2-star, and 1-star) within the freezer compartment, which indicate the maximum storage periods for different types of frozen food.
  • Page 21 Fridge: • To reduce moisture and subsequent ice formation, never store liquids in the fridge compartment unless they are in sealed containers. • Frost tends to concentrate in the coolest parts of the evaporator. Storing liquids uncovered can increase the need for frequent defrosting. Ensure all liquids are covered when stored.

  • Page 22: Cleaning & Care

    CLEANING & CARE • Before Maintenance: Disconnect the appliance from the electrical supply and wait at least 5 minutes before restarting. This prevents damage to the compressor from frequent starting. • Removing Frost and Ice: Do not use sharp objects to remove frost or ice. Avoid using heat sources like sprays, electric heaters, hair dryers, or steam cleaners as they can damage the plastic parts.
  • Page 23 Defrosting Even though this appliance features automatic defrosting, a layer of frost may still form on the interior walls of the freezer compartment if the door is frequently opened or left open for extended periods. Should the frost build-up become excessive, it's advisable to defrost when your food stock is low.

  • Page 24: Troubleshooting

    TROUBLESHOOTING If these solutions are unsuccessful, contact help.Kogan.com for support. Problem Possible Causes Solution Power supply is off, or the Ensure the power cord is firmly plug is not properly plugged in. inserted. Appliance not operating. Verify your home's power...
  • Page 25 This is normal but ensure Normal heat dissipation adequate ventilation around from the appliance. the appliance. Outer wall feels hot. Elevated ambient If possible, increase ventilation temperatures, especially in or relocate the appliance to a summer. cooler area. Metal tubes inside the Cross or vertical This is normal.
  • Page 26 Understanding and Managing Common Noises During normal operation, your refrigerator may produce sounds that are typical and do not indicate any issues with its functionality. Here’s how to address and minimize some common noises: • Uneven Placement Noise: If you hear noise due to the appliance not being level, adjust the position using the adjustable turn-in front feet.
  • Page 27 Error Codes On the occurrence of a failure, the corresponding icons will give a combined blink, the error codes and types are shown as follows: Fridge: Error Code Description Display Temperature sensor failure. ‘ ’ & ‘2’ indicators illuminate. Defrosting sensor failure. ‘...
  • Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...

This manual is also suitable for:

Kamfrzu238b
