Summary of Contents for Kogan KAH91LURFZA

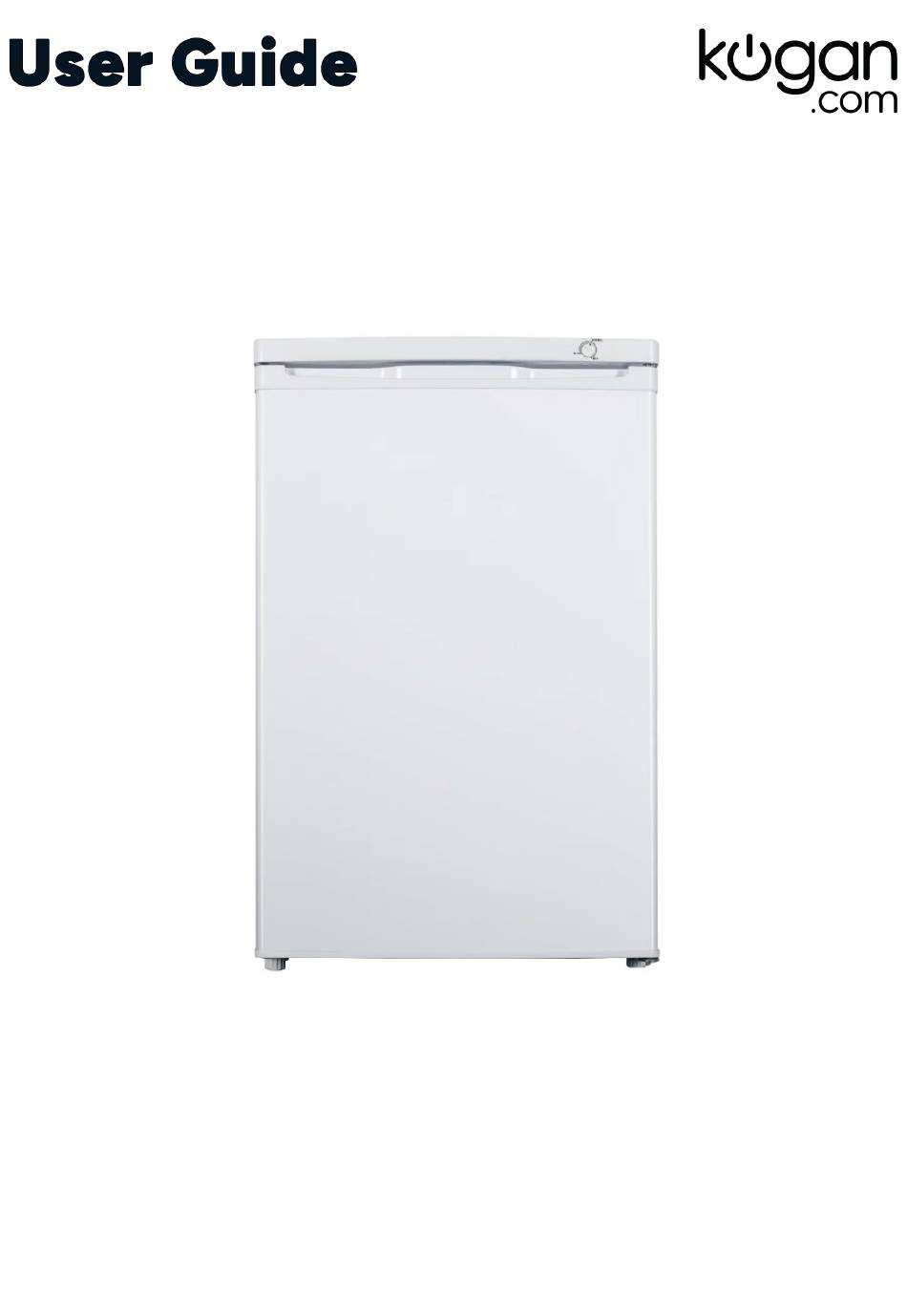

- Page 1 91L Upright Freezer KAH91LURFZA & KAH91LURFZB...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Operation Cleaning & Care Troubleshooting Notes... -
Page 3: Safety & Warnings
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by Kogan.com. • Do not touch the light bulb if it has been on for a long period of time because it could be very hot. - Page 4 If the appliance or power cord are damaged, cease use immediately and contact help.Kogan.com for support. • This appliance is intended to be used in household and similar applications such as: •...
-
Page 5: Daily Use
Daily Use • Do not place hot items directly on the plastic parts of the appliance. • Avoid placing food products directly against the rear wall. • Thawed frozen food must not be refrozen. • Store pre-packed frozen food according to the manufacturer's instructions. •... - Page 6 Installation • Inspect the appliance for damage upon unpacking. Do not connect a damaged appliance. Contact help.Kogan.com to report damage. Retain the packaging. • Wait at least 4 hours before connecting the appliance to allow the compressor oil to settle.
-
Page 7: Overview
Overview Thermostat Freezer Drawers Levelling Feet... -
Page 8: Installation
Installation Space Requirements Ensure there is sufficient clearance for the door to open fully. 90° 550 mm 580 mm 850 mm Min=50 mm Min=50 mm Min=50 mm 1100 mm 1130 mm 135°... - Page 9 Levelling the Unit • Adjust the 2 leveling feet at the front of the unit to ensure it is properly balanced. • If the unit is not level, the doors and magnetic seals may not align correctly, which can affect their proper closure. Lengthen Shorten...
-
Page 10: Electrical Connection
Positioning Install the appliance in a location where the ambient temperature matches the climate class indicated on the appliance’s rating plate: • Extended Temperate (SN): Suitable for ambient temperatures ranging from 10°C to 32°C. • Temperate (N): Suitable for ambient temperatures ranging from 16°C to 32°C. •... -
Page 11: Door Reversal
Door Reversal Tools Required • Phillips screwdriver. • Flat-bladed screwdriver. • Adjustable wrench. Preparation • Ensure the unit is unplugged and empty. • Tilt the unit backward, resting it on a stable, solid surface to prevent slipping during the door reversal process. Do not lay the unit flat as this may damage the coolant system. •... - Page 12 Remove the top cover and the thermostat knob, then set them aside. Unscrew the upper hinge, then carefully remove the door and place it on a soft pad to avoid scratches. Unscrew the lower hinge, then remove the adjustable feet from both sides.
- Page 13 Unscrew and remove the lower hinge pin, turn the bracket over, and reinstall the hinge pin. Screw Unscrew Refit the bracket with the lower hinge pin in place. Reattach both adjustable feet. Detach the door gasket, rotate it as needed, and reattach it.
- Page 14 Place the door back onto the unit. Ensure the door is aligned horizontally and vertically so that the seals close properly on all sides. Tighten the upper hinge securely. Reattach the top cover and secure it with x2 screws at the rear. Screw 10.
-
Page 15: Operation
Operation Cleaning Before Use • Before using the appliance for the first time, clean the interior and all internal accessories with lukewarm water and neutral soap to remove any odour typical of a new product. Dry all surfaces thoroughly afterward. •... - Page 16 Recommended Temperature Setting Ambient Temperature Freezer Temperature Summer Normal Winter Daily Use Position different food in different compartments according to be below table. Refrigerator Compartments Type of Food Lower drawer/shelf Raw meat, poultry and fish. Middle drawer/shelf Frozen vegetables and chips. Top drawer/shelf Ice cream, frozen fruit and frozen baked goods.
- Page 17 Freezing Fresh Food • The freezer compartment is suitable for freezing fresh food and storing frozen or deep-frozen food for extended periods. • Place fresh food to be frozen in the lower drawer. • The maximum amount of food that can be frozen within 24 hours is specified on the appliance's rating plate.
- Page 18 Storing Frozen Food • When first starting the appliance or after a period of non-use, allow it to run for at least 2 hours on the highest setting before placing food inside. • Important: In the event of accidental defrosting (e.g., if the power is off for longer than the specified ‘rising time’...
-
Page 19: Cleaning & Care
Cleaning & Care For hygienic reasons, the interior of the appliance, including all accessories, should be cleaned regularly. Caution • The appliance must not be connected to the mains during cleaning to avoid the risk of electrical shock. Before cleaning, switch off the appliance and unplug it, or turn off the circuit breaker or fuse. -
Page 20: Defrosting The Freezer
Defrosting the Freezer The freezer compartment will progressively accumulate frost, which should be removed. Important • Never use sharp metal tools to scrape frost from the evaporator, as this can cause damage. • When ice becomes very thick on the inner liner, complete defrosting is necessary. Steps for Defrosting Unplug the appliance from the electrical outlet. -
Page 21: Troubleshooting
Troubleshooting • Before troubleshooting, disconnect the appliance from the electrical outlet. • Troubleshooting beyond the scope of this manual must be performed by a qualified electrician. • Some sounds during operation (e.g., compressor or refrigerant circulation) are normal. Problem Possible Cause Solution Power plug is not plugged in Insert power plug into an... -
Page 22: Notes
Notes... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
