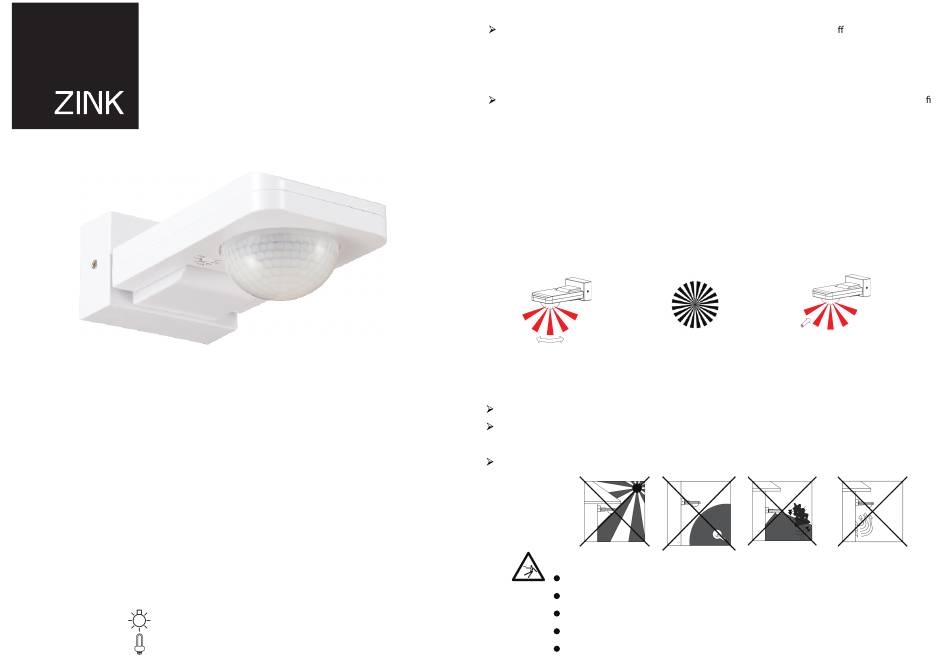

ZINK Napa ZN-35691-BLK Instruction Manual

Napa LED Adjustable
360 PIR Sensor
INS ZN 35691 - C
Instruction
Thank you for purchasing this new sensor light.
Please familiarize yourself with these instructions before attempting to install the product
to ensure trouble-free operation.
SPECIFICATION:
Power Source: 220-240V/AC
Power Frequency: 50/60H z
Ambient Light: <3-2000LUX (adjustable)
Time Delay: Min.10sec±3sec
Max.30min±2min
Rated Load: Max. 2000W
1000W
Detection Range: 360°
Detection Distance: 20m max(<24!)
Working Temperature: -20~+40!
Working Humidity: <93%RH
Power Consumption: approx 0.5W
Installation Height: 2.2-6m
FUNCTION:
Can identify day and night: The consumer can adjust working state in di erent ambient light. It
can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work
in the ambient light less than 3LUX, when it is adjusted on the "3" position (min). As for the
adjustment pattern, please refer to the testing pattern.
Time-Delay is added continually: When it receives the second induction signals within the rst
induction, it will restart to time from the moment.
MANUAL OVERRIDE FUNCTION:
1. Sensor mode " Stay on
Now switch wall switch OFF-ON, OFF-ON twice within 3seconds. The sensor will now hold your light ON
continuously just likes a normal light.
2. Stay on " Sensor mode(The following either method is ok)
1).Switch your wall switch OFF, then switch ON after 0.3seconds.
2). If the light left ON (not change the sensor to sensor mode by hand), the sensor itself will also
automatically return to the sensor mode after 8hours.
Good sensitivity
INSTALLATION ADVICE:
As the detector responds to changes in temperature, avoid the following situations:
Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.
Avoid mounting the detector near heat sources, such as heating vents, air conditioning units,
light etc.
Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall
plants etc.
Warning. Danger of death through electric shock!
Must be installed by professional electrician
Disconnect power source.
Cover or shied any adjacent live components.
Ensure device cannot be switched on.
Check power supply is disconnected.
Poor sensitivity
