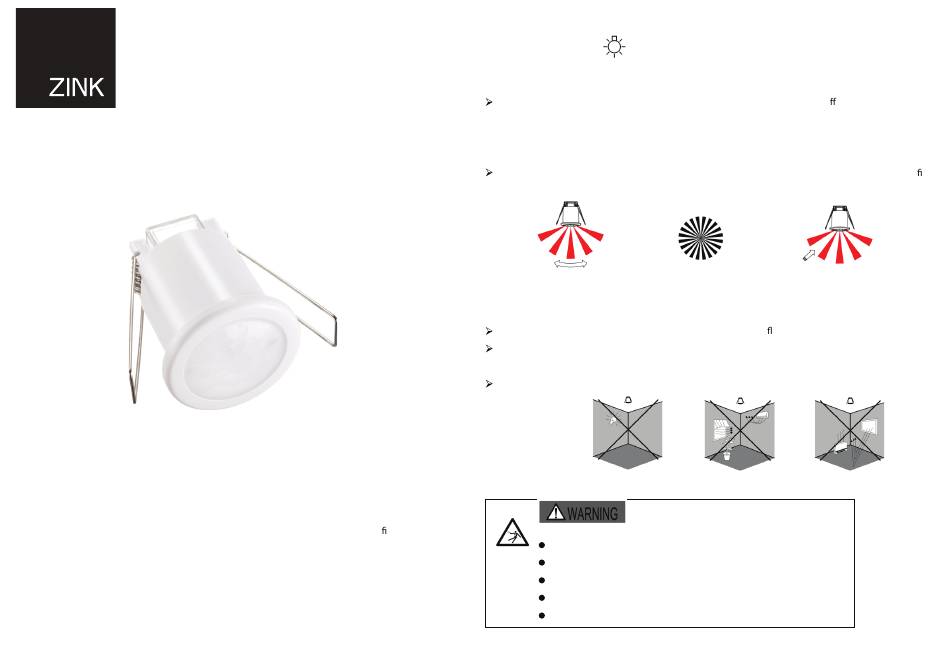

ZINK ST40A User Instructions

Loca 360 Degree
Recess Mount
PIR Sensor
ZN25155
LED Compatible
User Instructions
Welcome to use ST40A infrared motion sensor!
The product adopts good sensitivity detector and integrated circuit. It gathers automatism,
convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human
as control-signal source and it can start the load at once when one enters detection eld. It can identify
day and night automatically. It is easy to install and used widely.
SPECIFICATION:
Voltage: 220-240V/AC
Power Frequency: 50/60Hz
Ambient Light: <3-2000LUX (adjustable)
V2
Detection Range: 360°
Detection Distance: 8m max(<24ºC )
Working Temperature: -20~+40ºC
Time Delay: Min.10sec±3sec
Max.15min±2min
Rated Load: Max.800W
400W LED
FUNCTION:
Can identify day and night: The consumer can adjust working state in di erent ambient light. It
can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work
in the ambient light less than 3LUX when it is adjusted on the "3" position (min). As for the
adjustment pattern, please refer to the testing pattern.
Time-Delay is added continually: When it receives the second induction signals within the rst
induction, it will restart to time from the moment.
Good sensitivity
INSTALLATION ADVICE:
As the detector responds to changes in temperature, avoid the following situations:
Avoid pointing the detector towards objects with highly re ective surfaces, such as mirrors etc.
Avoid mounting the detector near heat sources, such as heating vents, air conditioning units,
light etc.
Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall
plants etc.
CONNECTION:
Warning. Danger of death through electric shock!
Must be installed by professional electrician.
Disconnect power source.
Cover or shied any adjacent live components.
Ensure device cannot be switched on.
Check power supply is disconnected.
Working Humidity: <93%RH
Power Consumption: approx 0.5W
Installation Height: 2.2-4m
Detection Moving Speed: 0 .6-1.5m/s
Poor sensitivity
