Bakers Pride Cyclone CO11-G1 Specifications

Cyclone
BAKERS
PRIDE

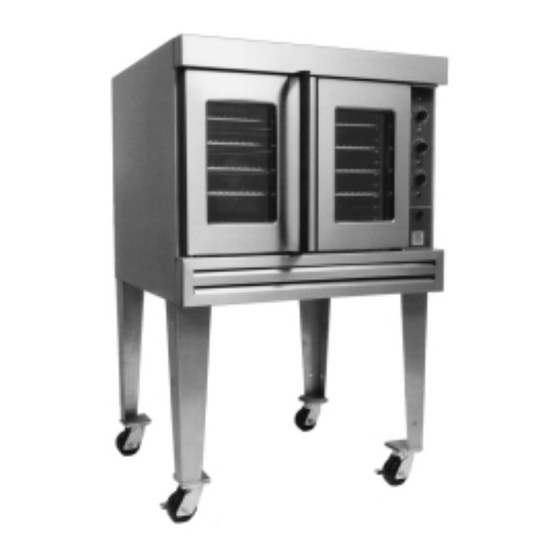

Model CO11-G1
with optional casters
SPECIFICATIONS
Gas heated, forced air convection type oven. Standard specifications
include 60,000 BTU/HR per cavity, 3/4" NPT rear gas connection, two
speed fan powered by an energy saving 1/4 HP hi-low fan motor with
a unique 900 RPM low speed setting, and a 4-second cycle hot
surface ignition system. 150° F (65°C) to 550° F (285°C) temperature
range.
Door interlock switch automatically turns the fan and ignition off when
the oven door is open. A manual rotary control will turn the fan on
when the door is open for quick cool-down. The 60-minute timer has a
continuous ring with manual shut-off. An indicator light glows when
the burner is on.
The oven interior measures 29" wide (737mm) by 20" high (508mm)
by 22 1/2" deep (572mm) with a porcelain enamel finish over heavy
gauge steel featuring a full sized cooking chamber with removable 11-
position rack guide with 1 5/8" spacing and 5 heavy duty adjustable
chrome-plated racks.
The oven exterior measures 39 3/8" wide (1000mm) by 38 3/8" deep
(975) by 33 3/8" high (848mm). Front, top and sides are constructed
with stainless steel. Single oven legs are 30" tall (6" for double),
7-gauge steel and finished with durable Baker Tone finish.
Dual doors are 55/45 split-type with double-pane thermal glass,
synchronized operation, stainless steel seals and a single left mounted
"Cool Touch" handle. Doors are fabricated with stainless steel inside-
and-out, and fully insulated with 2" of industrial grade insulation.
Limited 2 year part & labor and 5 year door warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
S E R I E S
Job ____________
GAS CONVECTION OVENS
Model CO11-G1 Single
q
Model CO11-G2 Double
q
STANDARD FEATURES
Energy efficient 60,000 BTU/HR oven indirect/direct forced air
q
combination heat system
Natural or propane gas, 120v or 208v-240v 60hz
q
Electronic temperature control
q
Electronic hot surface ignition system with safety shut-off
q
Double-pane thermal glass door windows
q
Oven lights
q
60-Minute continuous ring timer with manual shut-off
q
150°F (65°C) to 550°F (285°C) temperature range
q
Energy efficient 1/4 HP two-speed fan motor
q
Cool down fan mode
q
Burner-on and temperature-ready indicator lights
q
Porcelain enamel oven interior
q
11-Position removable rack guides with 1 5/8" spacing
q
5 Heavy-duty, positive-stop, chrome-plated wire racks
q
Stainless steel front, top & sides
q
7-Gauge steel legs with durable Baker Tone finish
q
Stainless steel, 55/45 split synchronized doors, with single left
q
mounted handle
Stainless steel door seals
q
Front mounted, hinged control panel for easy service access
q
1/8" Welded angle iron frame construction
q
Aluminized steel combustion chamber — flue included
q
Heavy-duty industrial grade insulation in top, sides, back & doors
q
Removable tube burners
q
Front accessible manual gas shut-off valve
q
OPTIONS & ACCESSORIES
Steam injection with front panel controls
q
Computerized programmable controls with LED display for
q
integrated use of Cook & Hold, multi function cooking, fan speed,
fan cycle and steam injection functions
Open rack stand with rack supports
q
30" Stainless steel legs with undershelf
q
Single connection external gas manifolds for double decks
q
Heavy-duty caster set, two with caster locks
q
48" Quick-disconnect gas hoses with restraining cables
q
Stainless steel perforated rear panel
q
Solid Doors
q
Correctional Facility package
q
International voltages, 50hz
q
CERTIFICATIONS
A
G S
®
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
G
APPROVED
®
