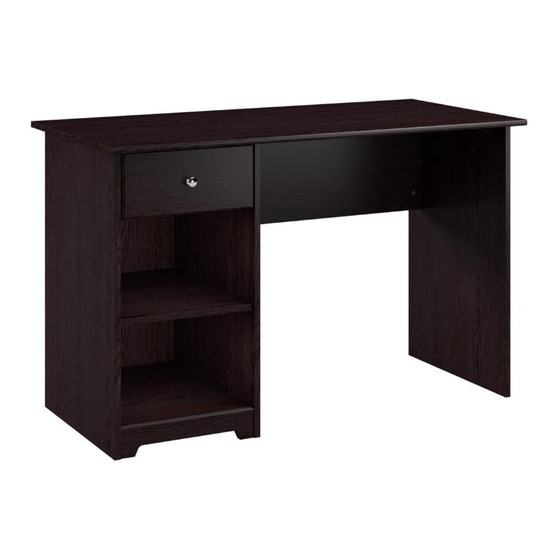

BUSH FURNITURE Cabot WC31847 Assembly Manual

48w single pedestal desk
Hide thumbs

Advertisement

Quick Links

Download this manual
48W Single Pedestal Desk
Lot Code #
Instruction Sheet Number A218290
Keep manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cabot WC31847 and is the answer not in the manual?

Questions and answers

Related Manuals for BUSH FURNITURE Cabot WC31847

Summary of Contents for BUSH FURNITURE Cabot WC31847

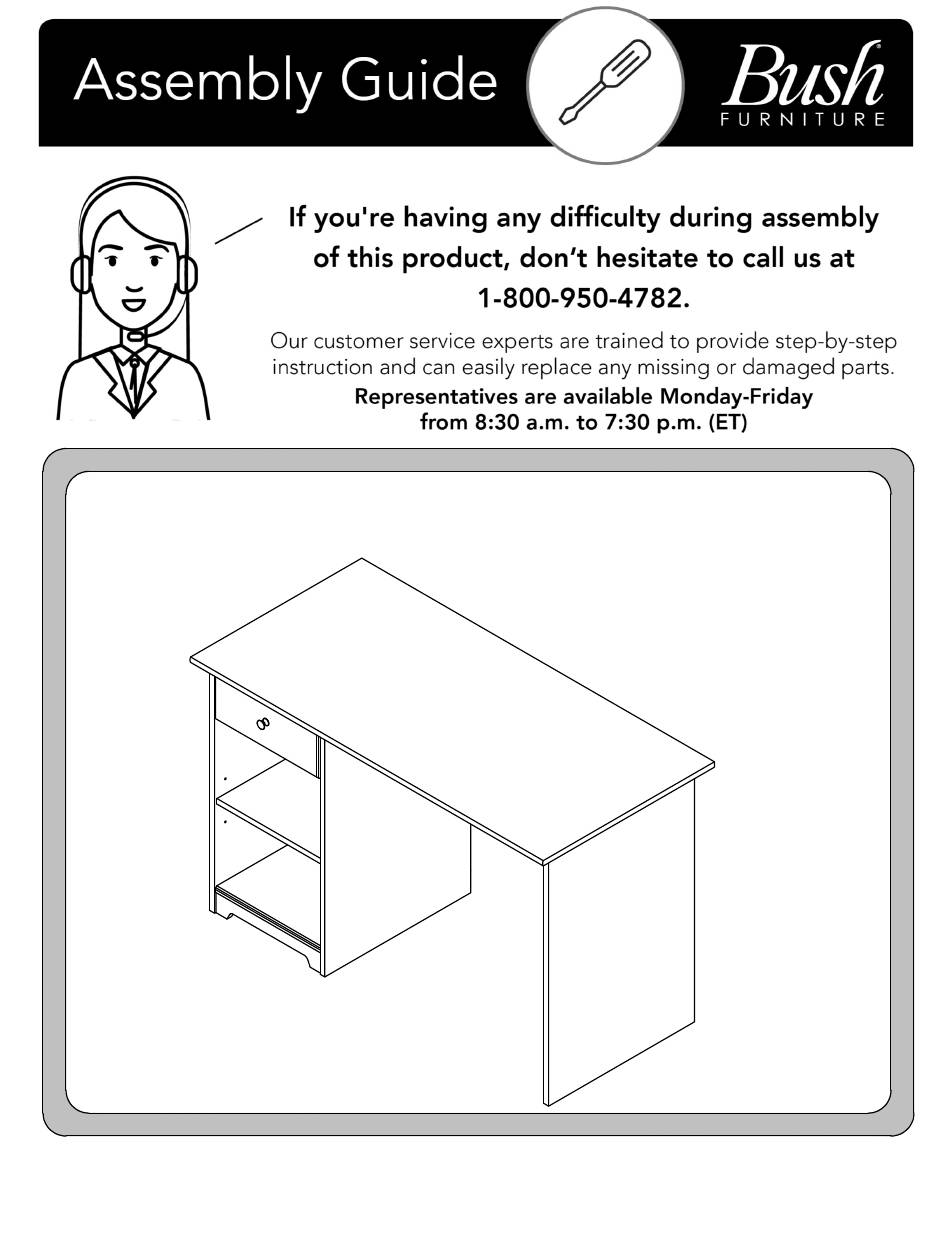

  • Page 1 48W Single Pedestal Desk Lot Code # Instruction Sheet Number A218290 Keep manual for future reference.
  • Page 2 Get Ready to Assemble A218290...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • Assemble following all instructions Do not move unit when Improper assembly, may occur.
  • Page 4 Get to know your Boards A218290 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 5 Get to know your Fasteners A218290 Fasteners are shown actual size. [ 17 ] H72988 H128624 [ 4 ] (Black) #8 x .5" KD Bolt [ 17 ] H181468US [ 4 ] H150333 #8 x 1-1/2" KD Cam3000 [ 8 ] H192100 [ 1 ] H92848...
  • Page 6 Get to know your Hardware A218290 Hardware not to scale. [ 4 ] [ 2 ] H23604 H100444 Shelf Pin DWR Bracket [ 4 ] H126396 Shelf Pin Sleeve 16" Slide Q161948 [ 1 ] [ 8 ] [ 4 ] [ 1 ] 5mm Hole Plug Cover Cap...
  • Page 7 Pepare Panel STEP A218290 [ 2 ] H100444 [ 2 ] H146988 Euro 13/14mm DWR Bracket Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 8 Assemble Panels STEP A218290 H128624 [ 4 ] (Black) #8 x .5" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 9 Assemble Panels STEP A218290 [ 4 ] H150333 #8 x 1-1/2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 Separate Slides STEP A218290 Slides Must Be Separated Before Assembly. After Separated, Set Aside Until Needed for Assembly. Las diapositivas deben separarse antes del montaje. Después de la separación, déjelo a un lado hasta que sea necesario. Les glissières doivent être séparées avant l'assemblage. Après la séparation, mettez de côté...
  • Page 11 Attach Hardware STEP A218290 16" Slide Runner [ 1 ] H92848 Q161948 [ 2 ] Orientation (Silver) M4 x 25mm Orientación L'orientation [ 4 ] H192100 #8 x 1/2" [ 1 ] Door Knob H92848 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 12 Prepare Panel STEP A218290 [ 3 ] H38169 Wood Dowel 8 x 30 Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 13 Prepare Panel STEP A218290 [ 1 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 14 Assemble Panels STEP A218290 [ 1 ] H181468US KD Cam3000 190° Minimum Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 15 Assembly Options STEP A218290 Left mounting option Right mounting option Opción para montura izquierda Opción para montura derecha Option gauche de montage Option droite de montage Go to Step 10. Go to Step 23. Vaya al paso 10. Vaya al paso 23. Passez à...
  • Page 16 Prepare Panel STEP A218290 [ 2 ] H192100 16" Slide Mount Q161948 [ 1 ] #8 x 1/2" Orientation Orientación L'orientation [ 2 ] H72988 KD Bolt [ 2 ] 5mm Hole Plug H192100 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 17 Assemble Panels STEP A218290 [ 2 ] H181468US KD Cam3000 190° Minimum Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 18 Prepare Panel STEP A218290 [ 2 ] H192100 16" Slide Mount Q161948 [ 1 ] #8 x 1/2" Orientation Orientación L'orientation [ 4 ] H72988 KD Bolt H192100 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 Assemble Panels STEP A218290 [ 2 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 20 Prepare Panel STEP A218290 [ 2 ] H72988 [ 2 ] 5mm Hole Plug KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 21 Assemble Panels STEP A218290 [ 2 ] H181468US KD Cam3000 190° Minimum [ 2 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 22 Assemble Panels STEP A218290 [ 2 ] H181468US KD Cam3000 190° Minimum [ 2 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 23 Prepare Panel STEP A218290 [ 8 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 24 Assemble Panels STEP A218290 [ 8 ] H181468US KD Cam3000 190° Minimum [ 4 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 25 Assemble Panels STEP A218290 Team Lift [ 17 ] H34174 Nail 19mm 2.0mm 1/16" Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 26 Attach Hardware STEP A218290 [ 4 ] H126396 [ 4 ] H23604 Shelf Pin Shelf Pin Sleeve Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 27 Insert Panel STEP A218290 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 28 Insert Drawer STEP A218290 Go to Step 36. Vaya al paso 36. Passez à l'étape 36. Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 29 Prepare Panel STEP A218290 [ 2 ] H192100 16" Slide Mount Q161948 #8 x 1/2" Orientation Orientación [ 2 ] H72988 L'orientation KD Bolt [ 2 ] 5mm Hole Plug Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 30 Assemble Panels STEP A218290 [ 2 ] H181468US KD Cam3000 190° Minimum Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 31 Prepare Panel STEP A218290 [ 2 ] H192100 16" Slide Mount Q161948 #8 x 1/2" Orientation Orientación L'orientation [ 4 ] H72988 KD Bolt H192100 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 32 Assemble Panels STEP A218290 [ 2 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 33 Prepare Panel STEP A218290 [ 2 ] H72988 [ 2 ] 5mm Hole Plug KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 34 Assemble Panels STEP A218290 [ 2 ] H181468US KD Cam3000 190° Minimum [ 2 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 35 Assemble Pedestal STEP A218290 [ 2 ] H181468US KD Cam3000 190° Minimum [ 2 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 36 Prepare Panel STEP A218290 [ 8 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 37 Assemble Panels STEP A218290 [ 8 ] H181468US KD Cam3000 190° Minimum [ 4 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 38 Assemble Panels STEP A218290 Team Lift [ 17 ] H34174 Nail 19mm 2.0mm 1/16" Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 39 Attach Hardware STEP A218290 [ 4 ] H126396 [ 4 ] H23604 Shelf Pin Shelf Pin Sleeve Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 40 Insert Panel STEP A218290 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 41 Insert Drawer STEP A218290 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 42 Drawer Adjustment STEP A218290 DRAWER FRONT VIEW REQUIRED TOOL: PHILLIPS SCREWDRIVER HERRAMIENTA REQUERIDA: DESTORNILLADOR PHILLIPS OUTIL REQUIS: TOURNEVIS CRUCIFORME 1. LOOSEN SCREWS. 2. ADJUST DRAWER FRONTS. 3. TIGHTEN SCREWS. 1. Afloje los tornillos 2. Ajustar frentes de cajón 3. Apriete los tornillos 1.
  • Page 43 Maximum Loading and Cleaning STEP A218290 Gently clean surfaces with a damp sponge eraser. Maximum Weight: 200 Lbs. Maximum Weight: 15 Lbs. Peso Máximo: 200 Libras Peso Máximo: 15 Libras Poids Maximum: 90.7 kilogramme Poids Maximum: 6.8 kilogramme Maximum Weight: 15 Lbs. Peso Máximo: 15 Libras Poids Maximum: 6.8 kilogramme Congratulations! You are all done.

  • Page 44: Parts List

    PARTS LIST A218290 WC31847 LABEL NUMBER QTY W218300 [ 1 ] H160869US W218301 W218302 Door Knob W218303 W218304 W218305 [ 8 ] H73621 W218307 W218308 Cover Cap W210184 W87410 W128623 [ 4 ] H63904 W192559 W214302 5mm Hole Plug WC31447 LABEL NUMBER QTY [ 1 ] W218309...
  • Page 45 PARTS LIST A218290 WC31747 LABEL NUMBER QTY W218291 [ 1 ] H160869US W218292 W218293 Door Knob W218294 W218295 W218296 [ 8 ] H92521 W218298 W218299 Cover Cap W193715 W87410 W128623 [ 4 ] H92523 W192559 W214301 5mm Hole Plug WC31947 LABEL NUMBER QTY W218318 [ 1 ]...
  • Page 46 Drawer Removal A218290 Drawer Removal (if reuired) Quitado de Gaveta (si es necesario) retrait du tiroir (si necessaire) For left side push lock lever up and pull-out drawer. Para deslizable izquierdo, empuje la palanca de cerra hacia arriba y tapa del gaveta. Pour la coulisse gauche placez le verrou vers le haut et dessus du tiroir.
