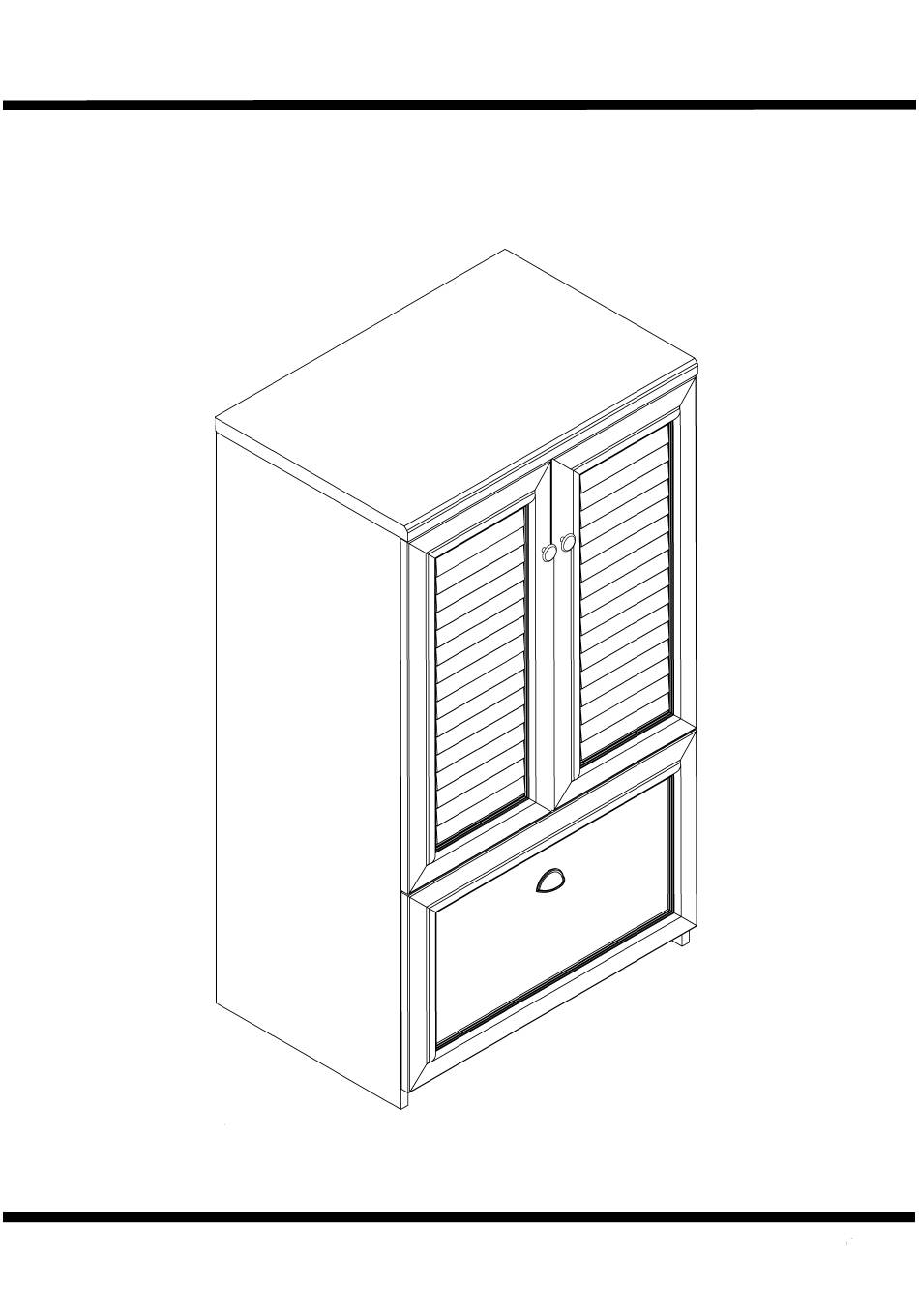

ASSEMBLY INSTRUCTIONS
Keep manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WC53280 and is the answer not in the manual?

Questions and answers

Related Manuals for BUSH FURNITURE WC53280

Summary of Contents for BUSH FURNITURE WC53280

  • Page 1 ASSEMBLY INSTRUCTIONS Keep manual for future reference.

  • Page 2: Consumer Service

    1,2,3 IT’S AS EASY AS Assembly tips: 1. Read the instructions and become familiar with the parts. 2. Ensure this carton contains all parts, fasteners and hardware. 3. To protect floors, assemble the furniture on the carton. Thank you for purchasing this Furniture 4.

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING WARNING Electronic equipment may overheat Units must be assembled with the causing damage. instructions, parts and hardware When storing electronic equipment, provided. Improper assembly or remove all vent hole punch-outs to use could cause structural failure, provide adequate cooling .
  • Page 4 IMPORTANT SAFETY INFORMATION WARNING WARNING Serious or fatal crushing injuries can occur from furniture tip­ This product is designed and over. To help prevent tip-over: intended to be attached to the wall with the enclosed mounting - Verify that furniture is stable on it's own. hardware and instructions.
  • Page 5 MAXIMUM RECOMMENDED WEIGHT LOADS MAXIMUM WEIGHT: 0 LBS (0 KG} PESO MAXIMO: 0 LIBRAS (0 KILOGRAMO) POIDS MAXIMUM: 0 LIVRES (0 KILOGRAMME) MAXIMUM WEIGHT: 50 LBS (22.68 KG} --:;;,ttv���-l+� PESO MAXIMO: 50 LIBRAS (22.68 KILOGRAMO) POIDS MAXIMUM: 50 LIVRES (22.68 KILOGRAMME) MAXIMUM WEIGHT: 30 LBS (13.61 KG} PESO MAXIMO: 30 LIBRAS (13.61 KILOGRAMO) POIDS MAXIMUM: 30 LIVRES (13.61 KILOGRAMME)

  • Page 6: Exploded View

    EXPLODED VIEW -----.----------; L___ _____ --------...

  • Page 8: Parts List

    PARTS LIST WC53680 [ 1 ] W198286 [ 1 ] S198293 [ 1 ] W198287 [ 1 ] W198294 [ 2 ] W198288 [ 1 ] W198295 [ 2 ] W19828 9 [ 1 ] W198296 [ 1 ] W198290 [ 1 ] W198297 [ 1 ] S198291 [ 1 ] W198298...
  • Page 9 FASTENERS Fasteners are shown in actual size. Los fijadores son demonsrtados en su tamano actual. Les attaches sont montrees dans l'echelle grandeur. [ 12] H38169 [ 12] H101725 � #6 X 1/2" Wood Dowel 8 x 30mm [ 1 2 ] H 1 80604 [ 2 ] �...
  • Page 10 [ 6 ] H180927 [ 6 ] H160282 Hinge Mounting Plate [ 1 ] H180871 H203 85 = (}) Tack Glide Door Stopper WC53280 WC53980 H160173 H160172 � � Cover Cap Cover Cap WC53680 WC53580 H186180 H170595 [ 4 ]...
  • Page 12 HARDWARE TIP OVER RESTRAINT HARDWARE Q193698 H 1 81 434 � 2" [ 1 ] H107572 � 1-1/2" H181412 [ 2 ] Connecting Plate H181419 [ 1 ] Toggle Bolt H181411 [ 1 ] Nylon Cable Tie...
  • Page 13 STEP 1 Slides Must Be Separated Before Assembly. After Separated, Set Aside Until Needed for Assembly. Las diapositivas deben separarse antes del montaje. Despues de la separaci6n, dejelo a un lado hasta que sea necesario. Les glissieres doivent etre separees avant !'assemblage. Apres la separation, mettez de cote jusqu'au moment de !'assemblage.
  • Page 14 STEP2 ® H38169 [ 2 ] H180604 � [ 4 ] KD Bolt Wood Dowel 8 x 30mm H160282 [ 3 ] H101725 [ 3 ] � #6 X 1/2" Mounting Plate Z39433 [ 1 ] Orientation Orlentacl6n L'orlentation Orientation Orlentacl6n L'orlentation Safety glasses...
  • Page 15 STEP3 H38169 [ 2 ] H180604 � [ 4 ] KD Bolt Wood Dowel 8 x 30mm H160282 [ 3 ] [ 3 ] H101725 � � 1/2" Mounting Plate 14" Slide Mount (356mm) 239433 [ 1 ] Orientation Orlentacl6n L'orlentation Safety glasses Gafas de seguridad...
  • Page 16 STEP4 ® [ 8 ] H38169 [ 1 ] H180871 Wood Dowel 8 x 30mm Door Stopper H153 2 4 3 [ 2 ] H180604 [ 4 ] � � #5 X 9/16" KD Bolt � � Safety glasses Gafas de seguridad Lunettes de protection �...
  • Page 17 STEPS [ 8 ] KDCam Finished edge Borde terminado An assistant is required. Cote fini Es necesario un ayudante. Un assistant est necessaire. ,-II ,,.. { i,.. ">., � '--v...
  • Page 18 STEP6 [ 4 ] [ 4 ] � � KDCam Cover Cap An assistant is required. Es necesario un ayudante. Un assistant est necessaire.
  • Page 19 STEP 7 ==ffi H34174 [ 4 ] H20385 [ 26] �--II>> #3 X 3/4" Tack Glide Flip unit over before installing back panel Center the back panel so that the back panel Voltear el panel sobre el panel posterior seguro does not stick out past the edge of the unit.
  • Page 20 STEP8 A185970B 14" Slide Runner H101725 [ 2 ] [ 6 ] !!UoTi � � • � • �sS;�:: :: � • ;:= :: :co CTJ) #6 X 1/2" � • Ori entation Orlentacl6n L'orlentation Raw edge Orientation Orilla sin acabado Orlentacl6n Cote brut /'orientation...
  • Page 21 STEP9 H160160 [ 2 ] H1 4 8802 [ 1 ] M4 x 10mm Handle H23198 [ 4 ] � #1 Q X 1-1/2" Finished edge Borde terminado Cote fini An assistant is required. Es necesario un ayudante. Un assistant est necessaire.
  • Page 22 STEP10 H23198 � [ 4] #10 X 1-1/2" Finished edge Borde terminado Cote fini...
  • Page 23 STEP 11 [ 6 ] H186068 [ 1 ] H160161 � #8 X 3/4" File Extrusion 20-5/16" (516mm) An assistant is required. Es necesario un ayudante. Un assistant est necessaire.
  • Page 25 STEP13 An assistant is required. Es necesario un ayudante. Un assistant est necessaire.
  • Page 26 STEP14 [ 8 ] � H15 8 707 Shelf Pin Finished edge Borde terminado Cote fini...
  • Page 27 STEP15 H180927 [ 3 ] H153242 [ 6 ] � #8 X 5/8" Hinge �- [ 1 ] H158943 [ 1 ] H148805 M4 x 25mm Pull H158943...
  • Page 28 STEP16 H180927 H153242 [ 3 ] [ 6 ] � �- #8 X 5/8" Hinge H158943 H148805 M4 x 25mm Pull H158943 ATTENTION CAUTION ATENCl6N El equipo electr6nico puede L'equipement electronique peut Electronic equipment may overheat sobrecalentarse y causar danos. surchauffer et causer des dommages.
  • Page 29 STEP17...
  • Page 30 STEP18 Secure unit to the wall with a tip-over restraint. Unidad de seguro a la pared con un sistema de retenci6n de un vuelco. Fixer l'unite au mur avec un dispositif de retenue renversement. 1. Place unit in desired location. 2.
  • Page 31 STEP19 WALL STUD ATTACHMENT Drill 1 /8" hole 2" deep at mark on wall. Taladro 1/8 "agujero 2" de profundidad en la marca en la pared. Percer 1/8 "trou de 2" de profondeur la marque sur le mur. H181434 [ 1 ] #10 X 2"...
  • Page 32 STEP 20 [ 1 ] H 1 07572 � [ 1 ] H181412 #8 X 1-1/2" Connecting Plate Drill 1/8" hole 1-1/4" deep at mark on unit. Taladro 1/8 "agujero de 1-1/4" de profundidad en la marca de la unidad. Percer 1/8 "trou 1-1/4"...
  • Page 33 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 34 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 35 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 36 WARRANTY INFORMATION/INFORMATIONS POUR LA GARANTIE/INFORMACIÓN DE GARANTÍA WRITTEN VOTRE GARANTIA ESCRITA DE WARRANTY TO YOU Para brindarle asistencia oportuna, por favor, Afin de vous assister rapidement, veuillez verifique detalladamente que a su mueble no le inspecter votre mobilier en détail immédiatement In order to provide you with timely assistance, falte o tenga piezasdefectuosas inmediatamente après l’ouverture du carton en cas de pièces...
