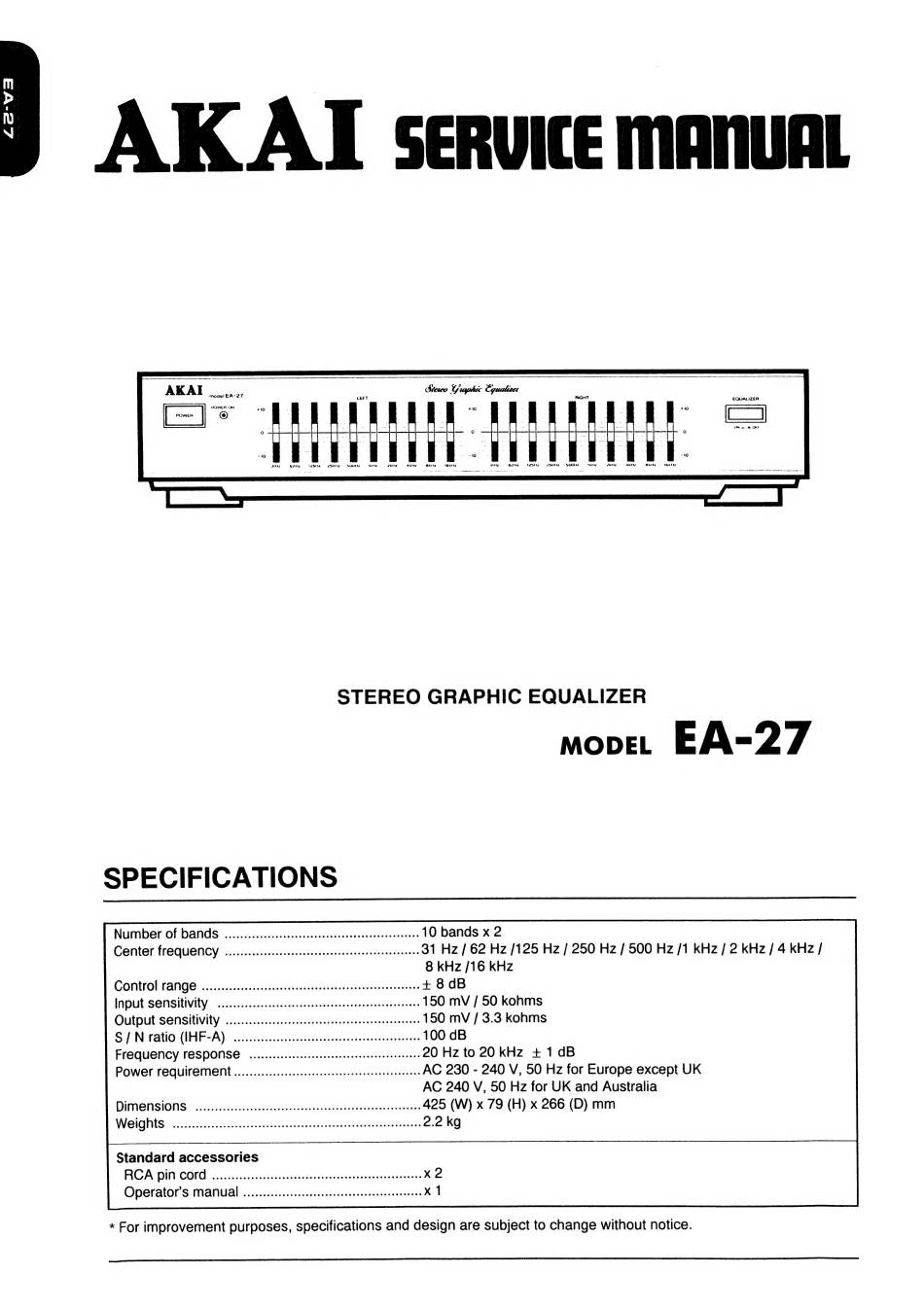

Akai EA-27 Service Manual

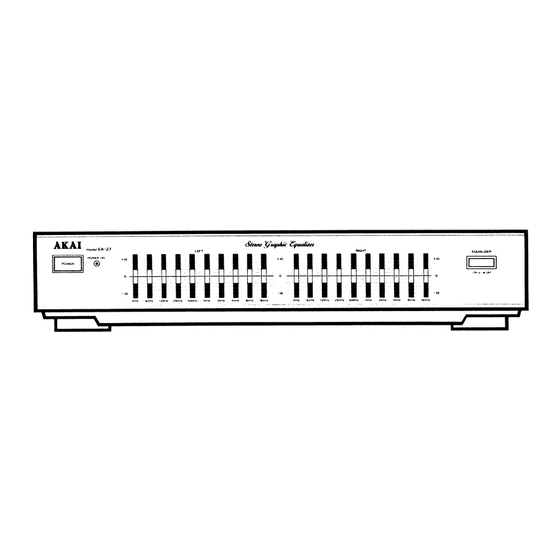

STEREO GRAPHIC EQUALIZER
MODEL EA-27
SPECIFICATIONS
Number of bands 10 bands x 2
Control range
Input sensitivity 150 mV / 50 kohms
Output sensitivity 150 mV / 3.3 kohms
S/N ratio (IHF-A)
Frequency response 20 Hz to 20 kHz +1 dB
Power requirement AC 230 - 240 V, 50 Hz for Europe except UK
AC 240 V, 50 Hz for UK and Australia
Dimensions 425 (W) x 79 (H) x 266 (D) mm
W GIG INS asccrecdgaacierpidads ees chew encecietlacarecos erate teratiecee 2.2 kg
Standard accessories
RCA pin cord
Operator's manual
