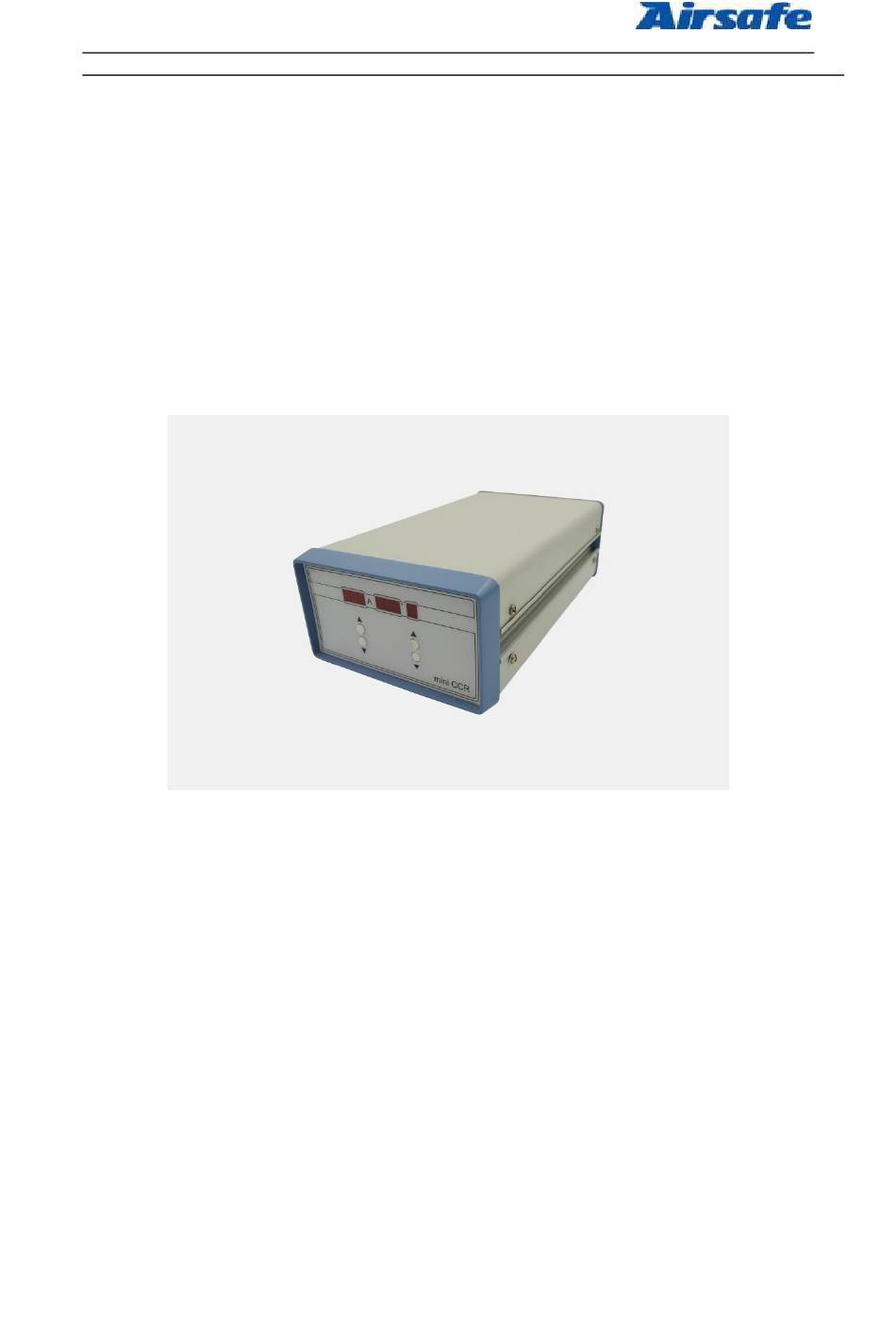

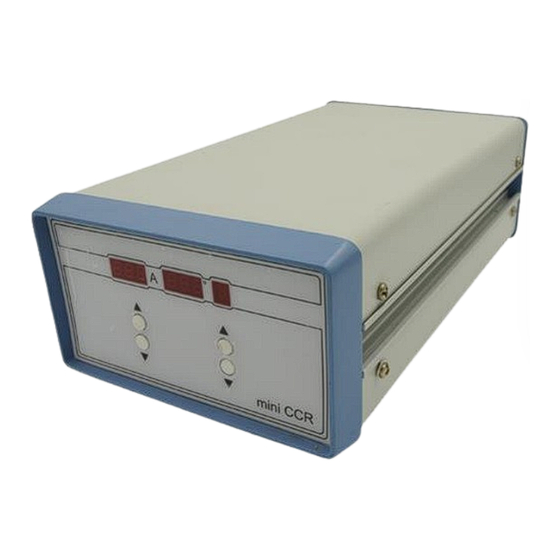

- Page 1 Advanced Airport Lighting System Mini CCR Operation Manual Airsafe Airport Equipment Co., Ltd. Please read this manual carefully before use the product Please keep the manual properly for further reading...
-
Page 2: Table Of Contents
Advanced Airport Lighting System CONTENTS 1. Overview…………………………………………………………………………3 1.1 Graphic and meaning…………………………………………………….……….3 1.2 Security and attention…………………………………………………………….4 1.3 Warranty …………… …………………………………………………………...4 2. Profiles of MINICCR…………………………………………………………….6 2.1 Summary of MINICCR…………………………………………………………..6 2.2 Company disclaimer……………………………………………………………..6 2.3 Technical parameters……………………………………………………………...7 2.4 MINICCR standard accessories…………………………………………………..8 3. Installation of MINICCR………………………………………………………... 9 4. -
Page 3: Overview
Advanced Airport Lighting System 1. Overview ICAO Airport Service Manual Part 9 "Airport Maintenance Practices" and FAA AC150/5345-26 "Maintenance of Airport Visual Navigation Aid Equipment" are the highest standards for on-site installation and maintenance of lamps and lanterns. This manual has taken much reference to these two standards. Content in this manual is highly important, operator should read carefully to understand all, and strictly follow the methods specified to ensure safe and correct installation. -
Page 4: Security And Attention
Advanced Airport Lighting System ※ Graphic informs this behavior should be banned ※ Specific instructions will be given in the box 1.2 Security and attention ※ Ensure power-off before installation and maintenance ※ Surge shock or other causes may lead to power damages ※... -
Page 5: Warranty
Advanced Airport Lighting System 1.3 Warranty Any defect in design, material or workmanship, which may occur during proper and normal use over a period of one year from date of installation but less than 15 months from date of shipment, or within the warranty period of the tender, will be repaired or replaced by manufacturer free of charge. -
Page 6: Profiles Of Miniccr
Advanced Airport Lighting System 2. Profiles of MINICCR MINI CCR is designed and developed independently by Airsafe Airport Equipment Co Ltd, used in civil airfield lighting as constant current dimming power supply. Reference standard is FAA AC150/5345-10G. Laboratory and airport lighting station may eliminate the large-scale dimming power supply in the daily simple application. -
Page 7: Company Disclaimer
Advanced Airport Lighting System 2.2 Company disclaimer Any defect in design, material or workmanship, which may occur during proper and normal use over a period of one year from date of installation but less than 15 months from date of shipment, or within the warranty period of the tender, will be repaired or replaced by manufacturer free of charge. -
Page 8: Miniccr Standard Accessories
Advanced Airport Lighting System 2.4 MINICCR standard accessories 10A 250V 1.5M power cord A6/A7 male plug to A2/A9 isolation transformer connector, length 0.7M x1 A6/A7 male plug to A6/A7 female plug extension cable, length 3M A6/A7 male plug to crocodile pliers, length 0.5M... -
Page 9: Installation Of Miniccr
Advanced Airport Lighting System 3. Installation of MINICCR a. Connect the provided cable to AC 220V plug shown above. b. Set switch at “0”, fuse between switch and joint, able to change if damaged. c. Be careful not to block the outlet of the fan when placing MINICCR d. - Page 10 Advanced Airport Lighting System g. Turn on 220V power switch after all connection completed including the load. h. Push button on the right side of the panel to work when switch light and front panel light up.
-
Page 11: Basic Operation Of Miniccr
Advanced Airport Lighting System 4. Basic operation of MINICCR 4.1 Manual mode 4.1.1 Optical level adjustment Push the button on the right to adjust optical level, each stage is corresponding with the effective current value. First stage: 2.80A Second stage: 3.40A Third stage: 4.10A Forth stage: 5.20A Fifth stage: 6.60A... -
Page 12: Automatic Mode
Advanced Airport Lighting System Current micro-regulation can be realized with pressing the button on the left under normal transmission environment (1-5 stage). Adjustment range: 2.00A-7.00A. Press shortly, adjustment step is 0.01A. Pressing more than 1 second is fast adjustment, 0.1A. Output current returns to the corresponding effective current value when pressing the adjustment button under random current. -
Page 13: Others
Advanced Airport Lighting System 4.4 Others ※ For high precision applications, it is recommended to wait 10-20 minutes after adjusting the optical level each time so as to achieve thermal balance within the power supply. May affect the accuracy of output current of the power ※... -
Page 14: Daily Maintenance Of Miniccr
Advanced Airport Lighting System 5. Daily maintenance of MINICCR ※ Notice that there should be no obstacles in the bottom air inlet or the rear air outlet when the power supply works. ※ May affect the accuracy of the output current and life of the power supply. -
Page 15: Simple Troubleshooting
Advanced Airport Lighting System 6. Simple troubleshooting Item Fault description Fault Causes Troubleshooting Open load of output circuit Please check whether there is an open Optical level, conduction angle Electric net off load on output circuit and current indication display 0 Heavy inductive load Please check whether the electric net suddenly during normal operation... - Page 16 Advanced Airport Lighting System The final right to interpret this manual is reserved by Airsafe Airport Equipment Co., Ltd. Thanks for your purchasing and using AIRSAFE product! Address: No.205, Changchuan Road, Baoshan District, Shanghai, China Postal Code: 200949 Tel.: 021-6364 3114...
