System Overview cont.
S S Y Y S S T T E E M M I I N N S S T T A A L L L L A A T T I I O O N N
1 1 . . I I n n s s e e r r t t W W h h e e e e l l I I n n t t o o F F r r a a m m e e
Insert the PowerTap SL2.4 wheel into the frame. Make sure the
axel is correctly positioned in the dropouts and secure the
wheel in place with a steel skewer.
2 2 . . A A t t t t a a c c h h C C o o m m p p u u t t e e r r S S h h o o e e t t o o H H a a n n d d l l e e b b a a r r o o r r S S t t e e m m

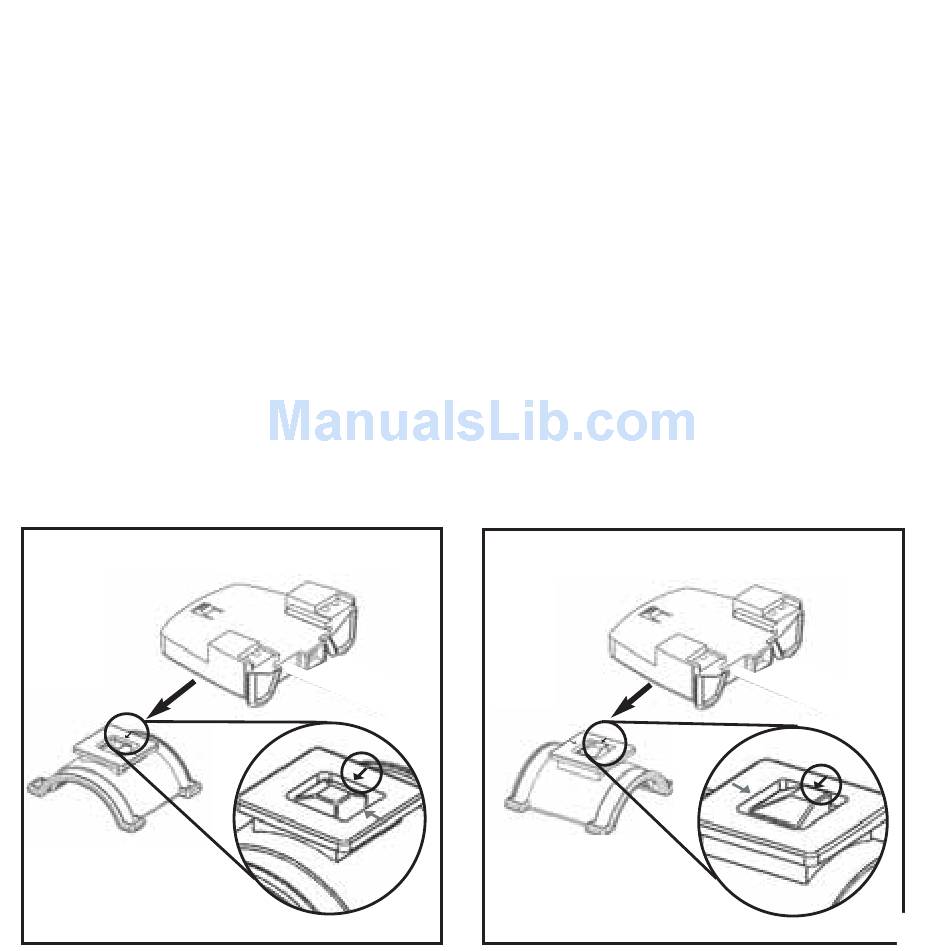

The shoe can be mounted on either the handlebar or stem. Secure the receiver shoe with cable
ties. Slide the receiver shoe in the direction of the arrow as depicted in either FIGURE 2A or 2B
depending on mounting location.
2 2 A A . . A A t t t t a a c c h h R R e e c c e e i i v v e e r r m m o o u u n n t t t t o o H H a a n n d d l l e e b b a a r r 2 2 B B . . A A t t t t a a c c h h R R e e c c e e i i v v e e r r m m o o u u n n t t t t o o S S t t e e m m
Slide shoe in direction of arrow onto the base. Slide shoe in direction of arrow onto the base.
Receiver Shoe
Receiver Shoe
Arrow
Arrow
Mounting Base
Mounting Base
