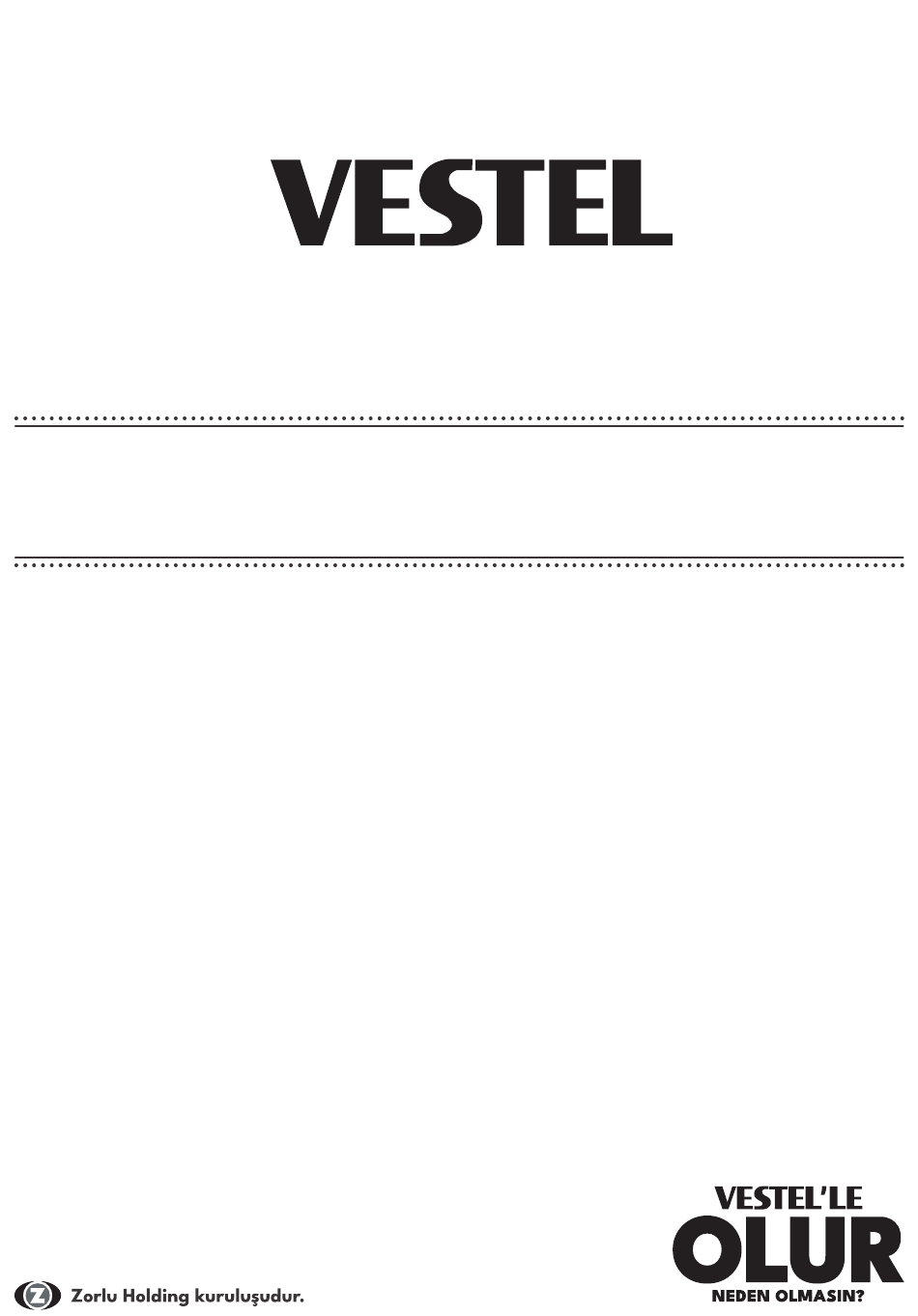

  • Page 1 TELEVIZYON USER MANUEL 32FA9530 32” ANDROID TV...

  • Page 2: Dear Customer

    Your device will serve you for long years as long as you display the necessary care and maintenance. We hope you enjoy using your device. This product was manufactured in environmentally friendly VESTEL ELEKTRONİK A.Ş. facilities with no harm to the nature.

  • Page 3: Table Of Contents

    Contents Dear Customer, ................1 Safety Information to Be Observed During Transport and Shipping .... 7 Batteries ..................7 WARNING ................... 8 Liability Limitation ................. 8 Accessories Included ..............8 Features ..................8 Stand Installation & Wall Mounting ............ 9 Antenna Connection ..............
  • Page 4 Programme Guide ................46 Connecting to the Internet .............46 Multi Media Player ................48 From USB Connection ..............52 CEC ..................52 Google Cast ................53 HBBTV System ................54 Quick Standby Search ..............55 Software Update .................55 Cleaning and Maintenance .............55 Troubleshooting................56 Supported File Formats for USB Mode ..........60 Supported DVI Resolutions .............64 Specification ................
  • Page 5 Safety Information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.
  • Page 6 Markings on the Product The following symbols are used on the WARNING product as a marker for restrictions A television may fall, causing serious and precautions and safety instructions. personal injury or d eath. Many injuries, Each explanation shall be considered particularly to children, can be avoided by where the product bears related taking simple precautions such as:...
  • Page 7 IMPORTANT - Please read these instructions fully before installing WALL MOUNTING WARNINGS or operating Read the instructions before mounting WARNING: Never let people your TV on the wall. (including children) with reduced The wall mount kit is optional. You can p h y s i c a l , s e n s o r y o r m e n t a l obtain from your local dealer, if not capabilities or lack of experience...

  • Page 8: Safety Information To Be Observed During Transport And Shipping

    • Do not expose the TV to dripping or • Do not allow liquid or foreign entry splashing of liquids and do not place bodies to enter into speaker grills or objects filled with liquids, such as vas- other gaps. es, cups, etc.

  • Page 9: Warning

    WARNING Accessories Included • Do not ingest the battery, Risk of • Remote Control Chemical Burn • Batteries: 2 x AAA • (Accompanying accessories or) This • Operating Instructions product can include a pull/button • Quick Start Guide type battery. If button type battery is •...

  • Page 10: Stand Installation & Wall Mounting

    Stand Installation & • 802.11 a/b/g/n/ac built in WLAN Support Wall Mounting • HbbTV Assembling / Removing the pedestal High Dynamic Range (HDR) / Preparations Hybrid Log-Gamma (HLG) Take out the pedestal(s) and the TV from Using this feature the TV can reproduce the packing case and put the TV onto a greater dynamic range of luminosity work table with the screen panel down...

  • Page 11: Antenna Connection

    Antenna Connection Your TV is also prepared for a VESA- compliant wall mount bracket. If it is not Connect the aerial or cable TV plug to supplied with your TV, contact your local the aerial input (ANT) socket or satellite dealer to purchase the recommended plug to the satellite input (LNB) socket wall mount bracket.
  • Page 12 Other Connections If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them. When using the wall mounting kit Connector Type...
  • Page 13 Turning On/Off the TV the Standby button on the remote control. Power off dialogue will appear Connect power on the screen. Highlight OK and press IMPORTANT: The TV set is designed the OK button. The TV will switch into to operate on 220-240V AC, 50 Hz standby mode.

  • Page 14: Tv Control & Operation

    TV Control & Operation Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively or use the directional buttons and then press the OK button The control button allows you to control to switch to different sources.
  • Page 15 to switch to different sources. Or enter the Inputs menu on the Home Screen, select the desired source from the list and press OK. Changing Channels and Volume You can adjust the volume by using the Volume +/- buttons and change the channel in Live TV mode by using the Programme +/- buttons on the remote.

  • Page 16: Remote Control

    Remote Control You will need to pair your remote control with your TV at this point. Press and hold the Source button on the remote until the LED on the remote starts to blink, then release the Source button. That means the remote is in pairing mode.
  • Page 17 1.Standby: Quick Standby / Standby 14.Stop: Stops the media being played / On 15.No function 2.Numeric buttons: Switches the 16.Coloured Buttons: Follow the on- channel in Live TV mode, enters a screen instructions for coloured number in the text box on the screen button functions 3.Language: Switches among sound 17.Pause: Pauses the media being played...

  • Page 18: Initial Setup Wizard

    2 6 . Programme +/-: Increases/ 1. Welcome Message and Language Selection decreases channel number in Live TV mode A “Welcome” message will be displayed 27.Mute: Completely turns off the along with the language selection volume of the TV options listed on the screen. Select the desired language from the list and press 28.Subtitles: Turns subtitles on and off, OK to continue.
  • Page 19 wireless accessories with your TV. Press connect to has a hidden SSID (network the Back/Return button to end adding name). accessories and proceed. If you prefer not to connect to the 5. Quick Setup Internet at this point you can skip this step by selecting the Skip option.
  • Page 20 address or phone number and your off. You can change this setting later using the Location status option in password, or create a new account. the Settings>Device Preferences>- If you prefer not to sign in to your Location menu. Google account at this point you can skip this step by selecting the Skip Help improve Android option.
  • Page 21 a tuner scan highlight Next and press Depending on the country selection you made in the earlier steps, you may be asked to define a 4-digit password (PIN) When the channel scan with the selected at this point. Press OK to proceed. The tuner is completed, the installation selected PIN cannot be 0000.
  • Page 22 next. Scan Mode, Frequency (KHz), Next screen will be the Select Operator Modulation, Symbol Rate (Ksym/s), screen. You can select only one operator Network ID options may need to be from the list. Highlight the desired set. To perform a full scan set the Scan operator and press OK or the Right Mode as Advanced, Quick or Full if directional button to proceed.
  • Page 23 you just need to select the correct the satellite, this option should be set as On first. DiSEqC port corresponding to your satellite system under the LNB Following satellite parameters will be Configurations option. Highlight available. You may not be able to Turksat and press OK or the Right change all settings depending on the directional button to set.
  • Page 24 LNB Configurations: Set the that have already been found will be parameters for LNB. For DiSEqC stored in the channel list. antenna type select the correct DiSEqC When the initial setup is completed a port corresponding to your satellite message will be displayed. Press OK to system.
  • Page 25 can also select the Android TV Home You can configure your date and time option from the Inputs menu to switch preferences using the Date & Time to Home Screen. To open the Inputs menu options from the Settings>Device menu, press the Source button on the Preferences menu.
  • Page 26 TV programmes and recommendations (*) The USB storage device must be from streaming apps. In the Discover formatted with the FAT32 file system. tab recommendations from streaming Channel: Open the Channel menu. services will be displayed. In the Apps You can use the Channels menu options tab, all the apps installed on your TV will to search for broadcast channels.
  • Page 27 sleep mode automatically. 4 Hours, Status, the last watched channel will 6 Hours and 8 Hours options are be displayed. available. Set as Never to disable. Interaction Channel: Turn the CI Card: Display available menu Interaction Channel function on or options of the CI card in use.
  • Page 28 Subtitle BISS Key: “Click To Add Biss Key” message will be displayed. Analogue Subtitle: Set this option Press OK button to add a biss key. as Off, On or Mute. If the Mute Frequency, Symbol Rate (KSym/s), option is selected, the analogue Polarisation, Programme ID, and subtitle will be displayed on the CW Key parameters will be available...

  • Page 29: Network And Internet

    Other options Save Locator and press OK to save and add the locator. Add new network: Add networks with Reset Table Version: A confirma- hidden SSID’s (network name). tion message will be displayed, select Scanning always available: You can OK to proceed with resetting the let the location service and other apps table version.
  • Page 30 Input Source - Antenna on the list and press OK to select/ unselect. Channel Scan: Start a scan for digital Channel Swap: Replace the posi- terrestrial channels. You can press the Back/Return button to cancel the scan. tions of the two selected channels in The channels that have already been the channel list.
  • Page 31 nel Type and Frequency information Return button to cancel the scan. The related to that channel if available. channels that have already been found Depending on the channel other options will be stored in the channel list. may also be editable. Press OK or the Single RF Scan: Enter the Frequency Yellow button to edit the highlighted value.
  • Page 32 (*) The selected channel number selected, the position of this channel will be replaced with the position of the should not be used for another channel first selected channel. You can press the in the channel list. You may need to Yellow button and enter the number of set the LCN option to Off in order to the channel you want to select.
  • Page 33 Satellite Manual Tuning: Start a man- storage device on the next screen and press OK. Satellite selection screen will ual satellite scan. Highlight the satellite and press OK to configure detailed sat- be displayed. The status of the first sat- ellite option will appear as On.
  • Page 34 of that channel. When the confirmation The channels that have already been dialogue appears, highlight YES and found will be stored in the channel list. press OK to proceed. You can press the Update Scan: Search for updates. Yellow button and enter the number of Previously added channels will not be the channel you want to select.

  • Page 35: Channel Installation Mode

    the Blue button and the first selected appears, highlight OK and press OK channel will be moved to the position to proceed. of that channel. When the confirmation Clear Channel List: Delete all channels dialogue appears, highlight YES and stored in the channel list. A dialogue will press OK to proceed.

  • Page 36: Channel Update Message

    Channel Update Message Change PIN: Change the PIN you de- fined during the initial setup. Highlight Turn the channel update message func- this option and press OK. You will need tion on or off. to enter the current PIN first. Then new PIN entry screen will be displayed.

  • Page 37: Permissions

    Permissions see the version of the app, open or force to stop the running of the app, uninstall Manage the permissions and some other a downloaded app, see the permissions features of the apps. and turn them on/off, turn on/off the App permissions: The apps will be notifications, clear the data and cache, sorted by permission type categories.
  • Page 38 tion. Enter the PIN you have defined Power Off Time Type: Set your TV during the initial setup. If you didn’t to turn off by itself. Set this option as On or Once to enable a power set a PIN during the initial setup, you off timer to be set, set as Off to dis- can use the default PIN.
  • Page 39 No Signal Auto Power Off: Set the Contrast: Adjust the contrast value behaviour of the TV, when no signal of the screen. is detected from the currently set in- Colour: Adjust the colour saturation put source. Define a time after which value of the screen.
  • Page 40 Medium, Strong or turn it off by judder) which are caused by these setting as Off. pull down methods. Set your DI Film Mode preference as Auto or turn it Max Vivid: Manipulates contrast off by setting as Off. This item will and colour perception, basically not be available if Game Mode or PC converts Standard Dynamic Range...
  • Page 41 Note: Depending on the currently set problems over time. To reduce the effect of blue light set your prefer- input source some menu options may ence as Low, Middle, or High. Set not be available. as Off to disable. Sound Colour Space: You can use this op- System Sounds: System sound is tion to set the range of colours dis-...
  • Page 42 Auto Volume Control: With Auto Highlight the option you prefer and press OK to set. Some options may Volume Control, you can set the TV to automatically level out sudden not be available if this option is not set to User. volume differences.
  • Page 43 doing this, that device will only be notification related to your connected USB device and press OK. usable with the TV. Follow the on- screen instructions and read the Browse: Opens the Storage menu. information displayed on the screen Set up as device storage: Has the before proceeding.
  • Page 44 figured for store environment and the mation to Google. Set according to your supported features will be displayed on preference. the screen. Once activated, the Store Manufacturer Usage & Diagnostics: Messaging setting will become availa- If you accept, your TV will send personal ble.

  • Page 45: Remotes And Accessories

    a device, highlight the Unpair option commentary more clearly, when it is and press OK. Then select OK and press available through broadcast. OK again to unpair the device from the Audio for the Visually Impaired: TV. You can also change the name of a Set the audio type for visually im- connected device.
  • Page 46 and press OK. Matching results will be might be set to On by default depend- listed. ing on the selected country during the initial setup process. If you performed To filter the channels press Yellow TKGS installation you can remove the button.

  • Page 47: Programme Guide

    the desired favourite list and press and Right/Left directional buttons to OK. In order to change the position of select a desired event of the currently a channel in the favourite list press the highlighted channel. If available, the full Green button, then highlight the Move name, start-end time and date, genre option and press OK.
  • Page 48 Wired Connection 2. LAN input on the rear side of the Connect your TV to your modem/router Wireless Connection via an Ethernet cable. There is a LAN port on the rear side of your TV. A wireless LAN modem/router is The status of the connection under the required to connect the TV to the Ethernet section in the Network and...

  • Page 49: Multi Media Player

    environment. In this case, after The Wireless feature of the TV supports connecting to the wireless network 802.11 a,b,g,n & ac type modems. It is you want to connect to, highlight highly recommended that you should Notifications situated on the upper use the IEEE 802.11n communication right of the Home Screen and press protocol in order to avoid any possible...
  • Page 50 media type, sort the files, change the button. List View and Grid View modes thumbnail size and turn your TV into a are available. While browsing for the digital photo frame. You will also be able video, photo and text files a preview of to copy, paste and delete the media files the highlighted file will be displayed in using the related options of this menu, if...
  • Page 51 Rewind: Press and hold to rewind. Green button (Rotate/Duration): Rotate the image / Set the interval Fast Forward: Press and hold to fast between the slides. forward. Yellow button (Zoom/Effect): Zoom Stop: Stop the playback. in on the image / Apply various effects Programme +: Switch to next file.
  • Page 52 Menu Options press the Yellow button to set. This option will not be available if the slide Press the Menu button to see available show is paused. options while playing back or displaying Zoom: Zoom in on the image that is media files.

  • Page 53: From Usb Connection

    Sound Settings: Display the sound USB storage device to one of the USB settings menu. inputs on the TV. Sound Tracks: Set the soundtrack On the main media player screen select option if more then one available. the desired media type. On the next screen, highlight a file name from the Last Memory: Set to Time if you list of available media files and press...

  • Page 54: Google Cast

    • Scroll down to Consumer Electronic Connect the audio system to the HDMI2 Control (CEC) section. Check if the input on the TV to enable ARC feature. HDMI control option is switched on. When ARC is active, TV will mute its •...

  • Page 55: Hbbtv System

    The menu options and namings for ‘Settings’ from the notification panel or home screen Google Cast function on your Android device can differ from brand to brand 2. Tap on ‘Device Connectivity’ and can change with time. Refer 3. Tap on the ‘Easy projection’ and to your device’s manual for latest enable ‘Wireless projection’.

  • Page 56: Quick Standby Search

    Software Update ample, numeric channel selection may not work on a teletext application where Your TV is capable of finding and up- the numbers indicate teletext pages. dating the software automatically via HbbTV requires AV streaming capability Internet. for the platform. There are numerous To experience the best use of your TV applications providing VOD (video on and benefit from the latest improve-...

  • Page 57: Troubleshooting

    If your device does not resume normal operation still, contact Vestel Communication Center. You can find authorized services list and contact information from the web site.
  • Page 58 PROBLEM CAUSE REMEDY Power cable might Make sure it's plugged into the wall plug. be unplugged. Device doesn't Replace the batteries of remote turn on. Batteries of remote control- controller with new ones. Press ler might be discharged. the On/Off button on TV. Correct TV system might Make sure you have select- not have been selected.
  • Page 59 PROBLEM CAUSE REMEDY Displaying, To cancel the mute option, press TV might be muted. the button or turn up the volume. no sound. Screen resolution and Display is bad in Change resolution informa- settings of computer and computer mode. tion on your computer. TV might be incompatible.
  • Page 60 AV and HDMI Signal Compatibility Source Supported Signals SECAM Side AV NTSC4.43 NTSC3.58 480i 60Hz 480p 60Hz 576i, 576p 50Hz 720p 50Hz,60Hz HDMI 1080i 50Hz,60Hz 24Hz, 25Hz, 30Hz, 50Hz, 1080p 60Hz In some cases a signal on the TV may not be displayed properly.

  • Page 61: Supported File Formats For Usb Mode

    Supported File Formats for USB Mode Video Decoder Video Codec Resolution Bit Rate Profile Container Profile 0 (420 8-bit) 4096x2176@60fps 100Mbps MKV (.mkv), WebM (.webm) Profile 2, (420, 10-bit) Main (8-bit)/Main10 MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), (10-bit) HEVC/H.265 4096x2176@60fps 100Mbps MPEG transport stream (.ts, .trp, .tp), MKV Profile, High Tier @...
  • Page 62 Video Codec Resolution Bit Rate Profile Container MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), MKV 4096x2176@60fps 100Mbps Main Profile @Level 5.1 (.mkv), WebM (.webm) Video Encoder Max Bit Video Codec Max Resolution Profile Note Rate H.264 1920x1080@30fps 12Mbps Main profile, level 4.1 Hardware video encoder Audio Audio Codec...
  • Page 63 Audio Codec Sample rate Channel Bit Rate Container Note ASF (.asf), WMV (.wma, .wmv), AVI 128Kbps ~ WMA 7, WMA 8, 8KHz ~ 48KHz Up to 2 (.avi), MKV (.mkv, .mka), 3GPP (.3gpp, 320Kbps WMA 9 Standard .3gp), MP4 (.mp4, .mov) ASF (.asf), WMV (.wma, .wmv), AVI WMA 10 Pro M0 8KHz ~ 48KHz...
  • Page 64 Audio Codec Sample rate Channel Bit Rate Container Note Up to 5.1 (MS12 v1.x) Up to MPEG transport stream (.ts, .trp, .tp), 44.1KHz, 48KHz Up to 7.1 1521Kbps Per 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, (MS12 Presentation m4a), AC4 (.ac4) v2.x) Up to 16 core...

  • Page 65: Supported Dvi Resolutions

    External File Extension Subtitle Parser Remark .srt SubRip SubStation Alpha .ssa/.ass Advanced SubStation Alpha .smi SAMI MicroDVD .sub SubIdx (VobSub) .txt TMPlayer Supported DVI Resolutions When connecting devices to your TV’s connectors by using a DVI converter cable (DVI to HDMI cable - not supplied), you can refer to the following resolution information.

  • Page 66: Specification

    Specification Wireless LAN Transmitter Specifications PAL BG/I/DK TV Broadcasting SECAM BG/DK Max Output Frequency Ranges Power VHF (BAND I/III) - UHF (BAND Receiving Channels U) - HYPERBAND 2400 - 2483,5 MHz (CH1 - CH13) < 100 mW Fully integrated digital 5150 - 5250 MHz (CH36 - CH48) <...

  • Page 67: Licences

    Licences may require you to upgrade PlayReady to access their content. If you decline an The terms HDMI, HDMI High-Definition upgrade, you will not be able to access Multimedia Interface, HDMI trade dress content that requires the upgrade. and the HDMI Logos are trademarks or The “CI Plus”...

  • Page 68: Disposal Information

    Disposal Information [Other Countries outside the European Union] [European Union] These symbols are only valid in the These symbols indicate that the electrical European Union. and electronic equipment and the Contact your local authority to learn battery with this symbol should not be about disposal and recycling.

  • Page 69: Important Warnings

    IMPORTANT WARNINGS 1. Rights reserved by the manufacturer: The manufacturer reserves the right to change the features stated in the product or in the user’s manual of the product without giving any information, when required by the improvements in technology. 2.
  • Page 70 performance may not be achieved in TV broadcasts and the broadcasts of satellite receivers which are not supported by other sources in terms of high definition, DVD players or cable television; and in these broadcasts, mosaic images may occur, sharpness and resolution of the image may be low; some effects may arise on the screen.

  • Page 71: Optional Rights Of Customer

    Optional Rights of Customer Consumer may exercise any of his/her optional rights below within two years of expiry period starting with the date of delivery of the good to the consumer if the good is found to be defective as per the provisions of Law on the Protection of Consumers no.
