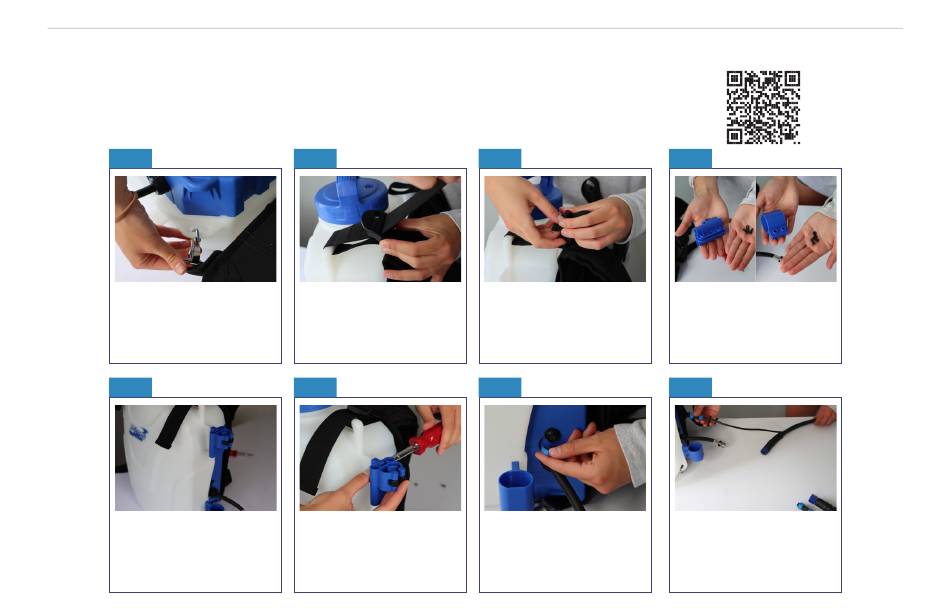

STEP 1
MICROBURST 2.0
OPERATION GUIDE
ASSEMBLING YOUR NEW SPRAYER
1
To begin, bring the ComfortStraps™
(5) clips to the bottom of the tank
(2). Secure lower strap clips to the
tank loops near the bottom of the
tank.
5
Slide the top wand holster onto
protruding holster mount on the
sprayer tank.
12.
2
Next, slide the adjustable strap
through the top tank loop. Continue
by sliding the strap under the buckle
fitting.
6
Insert a nut in the hexagonal slot on
the bottom of the holster and screw
the bolt through the other side using
a Phillip's head screwdriver until the
bolt fastens into the nut. Repeat for
the bottom holster/slot.
3
Then insert the strap over the buckle
fitting, and lightly tug at the strap to
make sure it's secure.
7
Next, remove the electrical connetor
cap located above where the hose
connects to the tank.
© WESSOL, LLC 2024
Scan for Assembly Video:
4
Open the tank lid (1) and remove
the nuts and bolts, holsters, and
nozzles (8) from inside the tank
strainer (4). Set aside.
8
To connect the hose assembly (3) to
the tank, use the side of the hose that
has the longer electrical connector
wire.
