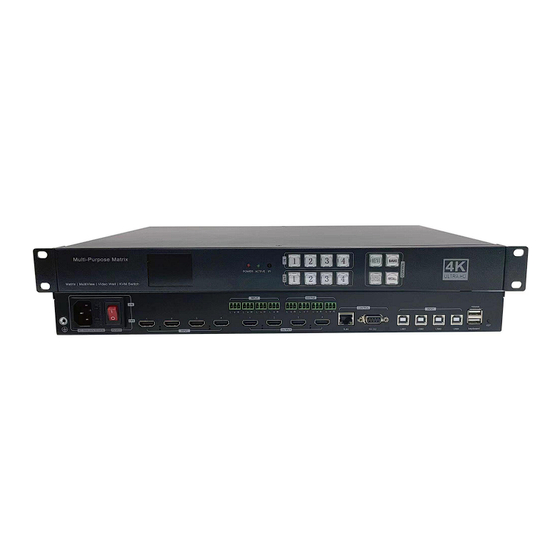

4x4 seamless 4k@60hz matrix switcher

Advertisement

AMPD-0404K6G User Manual
ANGUSTOS
4x4 Seamless 4K@60hz Matrix Switcher
AMPD-0404K6G
User Manual
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMPD-0404K6G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Angustos AMPD-0404K6G

  • Page 1 AMPD-0404K6G User Manual ANGUSTOS 4x4 Seamless 4K@60hz Matrix Switcher AMPD-0404K6G User Manual V1.1...
  • Page 2 AMPD-0404K6G User Manual 1. OVERVIEW AMPD-0404K6G seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays in various modes. Each source can be independently scaled and switched without delay or black screen. The product supports video resolution up to 4K60 4:4:4.
  • Page 3: Front Panel Operation

    AMPD-0404K6G User Manual 3. Front panel Operation Description: After power on, the LCD screen shows LOGO status. Press any push button to enter the main page to operate it. If no operation within 15 seconds, it will back to LOGO status .
  • Page 4 AMPD-0404K6G User Manual  Press MENU+2+(1/2)+ Enter in sequence to turn the buzzer sound on or off.  Press MENU+3+(1/2)+ Enter in sequence to modify the display mode(matrix or video wall).  Press MENU+4 in sequence to view device information of baud rate, buzzer, IP address.
  • Page 5 AMPD-0404K6G User Manual  Press MENU+C (OUT3) + (1/2/3/4 or A/B/C/D) + Enter in sequence to select EDID for input channel. EDID options are: 3840x2160@60, 3840x2160@30, 1280x720@60, 1920x1080@60, 1366x768@60, 1920x1200@60, 1920X1080@30, 4096X2160@60  Press MENU+D (OUT4) + (1/2/3/4 or A/B/C/D) + Enter in sequence to switch current HDMI...
  • Page 6 AMPD-0404K6G User Manual 8 Video Wall Modes 8 Multiview Modes...
  • Page 7: Rear Panel

    AMPD-0404K6G User Manual 4. Rear panel  RJ45 and RS232 ports are for centralized control.  The analogue audio IN/OUT port is tied to the corresponding video IN/OUT port. When the input port is a DVI signal, the corresponding analogue audio input port can be embedded.
  • Page 8 AMPD-0404K6G User Manual '*'+'F1': switch to USB1 control, keyboard and mouse follow the switch. '*'+'F2': switch to USB2 control, keyboard and mouse follow the switch. '*'+'F3': switch to USB3 control, keyboard and mouse follow the switch. '*'+'F4': switch to USB4 control, keyboard and mouse follow the switch.
  • Page 9 AMPD-0404K6G User Manual 5.2 LAN Connection Note: The factory default IP is 192.168.3.XXX (the last digit is not fixed), which can be viewed through the front panel LCD screen. The direct network cable control operations are as follows: 1. Connect a network cable between the computer and the matrix.
  • Page 10: System Diagram

    AMPD-0404K6G User Manual Click the menu “Configuration” to enter the video wall mode and multi-view mode. 6. System Diagram...
  • Page 11: Specification

    AMPD-0404K6G User Manual 7. Specification Video In 4 HDMI Type A Female Video Out 4 HDMI Type A Female Audio Input 3P-3.5mm Audio phoenix Terminal Audio Output 3P-3.5mm Audio phoenix Terminal Other Ports USB2.0 AM/BM, Mouse, Keyboard HDMI Version HDMI2.0,HDCP2.2...
