Summary of Contents for Smart Lifestyle SLA-R20-250/N3A4

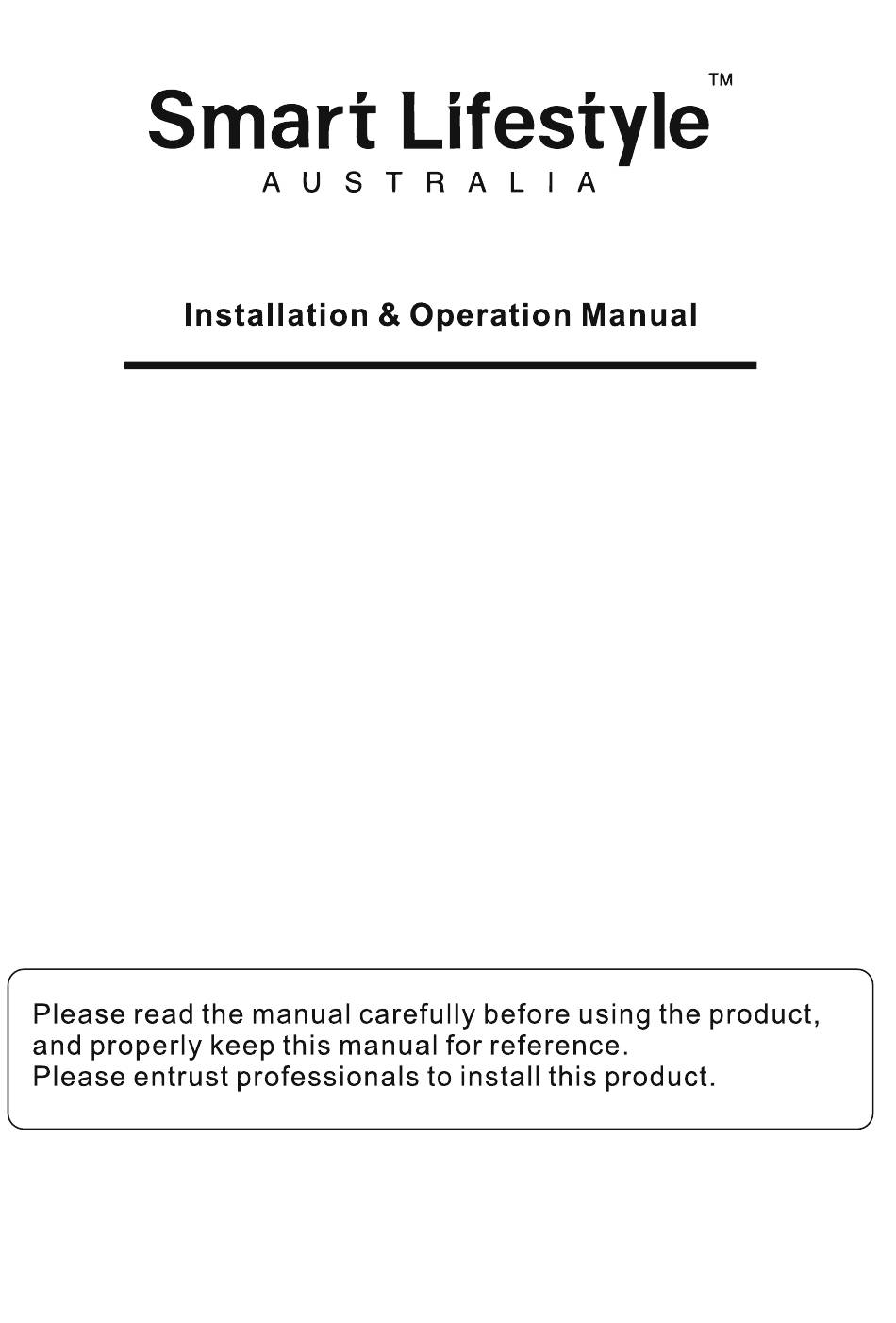

- Page 1 Air-source Heat Pump Water Heater...
-
Page 2: Troubleshooting
Troubleshooting... - Page 4 9. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use ofthe appliance by a person responsible for their safety.
- Page 5 6.The external power box of the machine must be equipped with an air switch with leakage protection according to the requirements of the following figure;The machine can be used only after the grounding is confirmed to be reliable. 7. If the water temper is higher than 85 ,the TCO will automatically shut off the power of E- ℃...
- Page 6 Magnesium Stick...
- Page 8 ≥300mm ≥300mm ≥300mm Enclosed room installation SLA-R20-250/N3A4: the minimum area=28㎡ SLA-R20-250/N3A4...
- Page 14 Economic mode: The unit is set to economic mode, the hot water temperature is adjustablein the range of 30-60 , the compressor is running at 30-60 . ℃ ℃ Hybrid heating mode: The unit is set to hybrid heating mode, the hot wate temperature is adjustable in the range of 30-70 ℃...
- Page 15 (1) Clock Setting (2) Timer Startup (3) Timer Shutdown...
- Page 19 Parameter error fault High temperature protection of exhaust of compressor Antifreeze protection The ambient temperature is not in the operating range of the heat pump Excessive running current of compressor Two low current of compressor Communication fail During defrosting, remind users that is in the In antifreezing, prevent the temperature of defrosting process the water tank from being too low...
- Page 20 ④ KZd40-RS250T/ED-3 1. Remove the screws on the top and side of the water heater and the cable connecting the display screen, and remove the top cover as shown in figure ① 2. Remove the fixing screws of the electric control box on the water pan, move the electric control box slowly, and find the position of the magnesium rod, to be note that use a special socket wrench to disassemble and assemble the magnesium rod, as shown in Figure ②...
- Page 21 The height of the power socket must be higher than the line outlet of the power line, Otherwise a certain length of the power line needs to be reserved to block the ponding. (As shown in figure) When your water heater is not working properly, immediately shut down and cut off the power supply, and then contact the local technical service department.
