CSI Controls CS1000 Installation Instructions page 2

ELECTRICAL SHOCK HAZARD
Disconnect power before installing or servicing this
product. A qualified service person must install and
service this product according to applicable electrical
and plumbing codes.
Failure to follow these precautions could result in serious injury or death. Replace product immediately if switch cable becomes damaged or severed.
Keep these instructions with warranty after installation. This product must be installed in accordance with National Electric Code, ANSI/NFPA 70 so as
to prevent moisture from entering or accumulating within boxes, conduit bodies, fittings, float housing, or cable.
For detailed specifications on this product, or for the complete line of CSI Controls
panel, alarm, and switch products, visit our website at www.csicontrols.com.
INSTALLING THE ALARM & FLOAT SWITCH
1. Determine indoor mounting location for alarm panel.
2. Insert screw (supplied) at desired wall location.
Note: Screw is to be located over wall stud or used with a
wall anchor sized for a #8 x 1.25 self tapping screw.
3. Make sure power to alarm panel is disconnected.
4. Hang alarm panel using keyhole on panel back. Install
second screw between tabs located on bottom of panel.
5. Mount the cord by placing the cord into the clamp as
shown in Figure A.
6. Locate the clamp at the desired activation level and
secure the clamp to the discharge pipe as shown in
Figure A.
Note: Do not install cord under hose clamp.
7. Tighten the hose clamp using a screwdriver. Over
tightening may result in damage to the plastic clamp.
Make sure the float cable is not allowed to touch the
excess hose clamp band during operation.
8. Bring cable leads back to alarm device and wire
according to Figure B.
Note: All hose clamp components are made of 18-8
stainless steel material. See your CSI Controls
for replacements.
Note: When used with a pump application, connect alarm
to a circuit separate from the pump circuit. This allows
the alarm to operate if the pump circuit fails.
9. Plug the panel in to apply power. The green "power on"
light should come on.
10. Check installation by manually tipping the float. The horn
and warning light should come on.
11. Move the horn silence switch to silence, the horn should
silence while the red light stays on.
12. You must manually reset alarm after activation. Push
horn button back to horn position and push test switch.
The light and horn should activate.
13. Test unit once per week to ensure proper operation.
14. Using the provided cable clasp, secure cord to outlet
as shown in Figure C. Use existing receptacle faceplate
screw and supplied washer.
Technical Support Hours: Monday-Friday, 7 A.M. to 6 P.M. Central Time

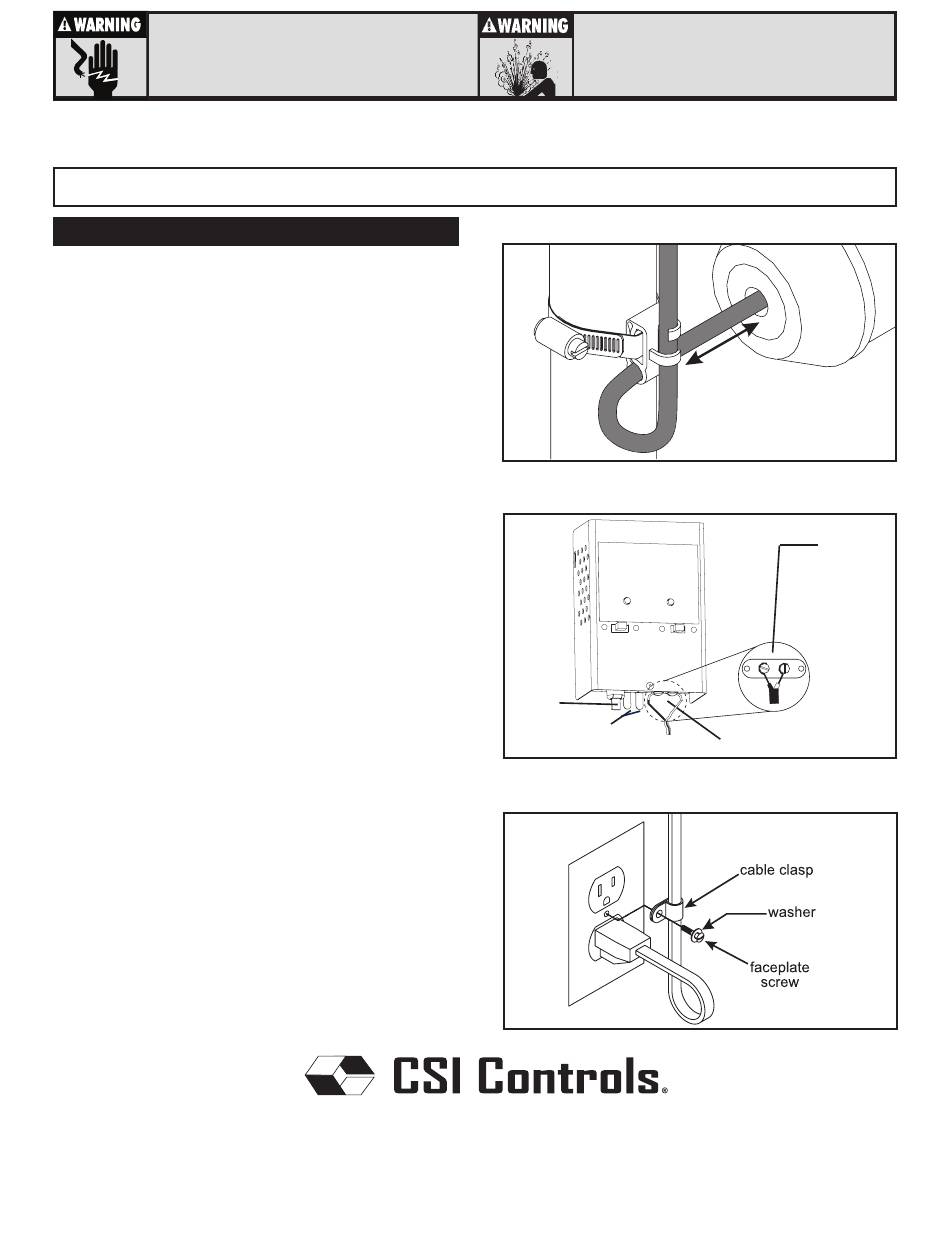

Figure A
Figure B
supplier
®
power
cord
Figure C
Technical support: +1-800-746-6287
techsupport@sjeinc.com
www.csicontrols.com
EXPLOSION OR FIRE HAZARD
Do not use this product with flammable liquids.
Do not install in hazardous locations as defined by
National Electrical Code, ANSI/NFPA 70.
®
3.5 inch (9 cm)
tether length
mounting attach float
tabs
switch here
© 2021 SJE, Inc. All Rights Reserved.
CSI CONTROLS is a trademark of SJE, Inc.
low voltage
screw
terminals
(for connection to
contacts with no
external power source)
do NOT apply
power
wire size
16-22 AWG
PN 1023214D 06/21
