VK1245 SOFT CLOSE DRAWER SLIDES MANUAL

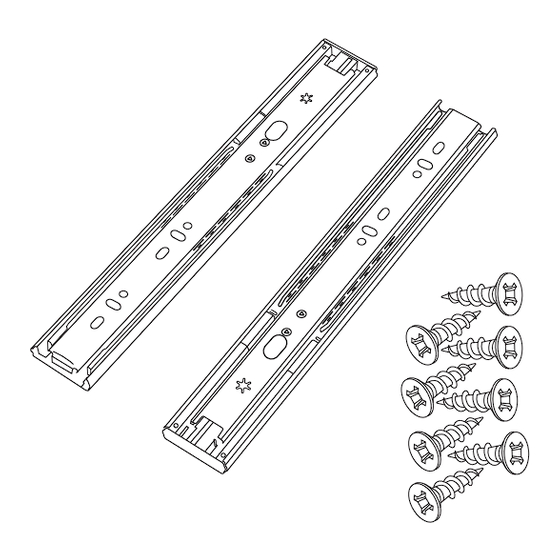

1Pair of drawer slide
8 x Mount screws
H a r d w a r e f o r y o u r l i f e
https://vadania.com/
Email: info@vadania.com
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VK1245 and is the answer not in the manual?

Questions and answers

Summary of Contents for VADANIA VK1245

  • Page 1 VK1245 SOFT CLOSE DRAWER SLIDES MANUAL H a r d w a r e f o r y o u r l i f e https://vadania.com/ Email: info@vadania.com 1Pair of drawer slide 8 x Mount screws Page 1...
  • Page 2 NAME:VADANIA Soft Close Drawer Slides VK1245 MATERIAL: Cold-Rolled (Cold Rolled) Steel INSTALLATION METHOD: Side Mount MAXIMUM LOAD CAPACITY: 100lb / 45kg. MINI DEPTH OF CABINET: Drawer Length + 0.12in / 3mm SURFACE TREATMENT: Galvanized / Electrophoretic Black SLIDE STYLE: 3 Folds Full Extension, Side Mount, Separable PLATE THICKNESS: Outer Slider 0.04in(1.2mm) /...
  • Page 3: Product Features

    Product Features Hydraulic Cylinder Hydraulic Soft/Self Close feature designed for preventing drawer from slamming shut Solid Ball Bearing Provides slient and friction-free motionwhen open drawer Double Spring Design Solid steel ball, better bearing capacity Makes it easier to pull back and smoo ther than single spring when bearing load.
  • Page 4: Installation Instruction

    Installation Instruction Step1 Step2 Step3 Separate drawer and base portion before Make sure the slides are leveled during the Place the outer member ush with the front mounting with provided lever installation process edge of cabinet Step4 Step5 Step6 Mount the screws in the permanent mounting Adjust and level the inner member.
  • Page 5: Size Table

    Size Table Dimension L±2 10,2 10,2 10,2 45,22 13,5 11,5 10,5 Screws Holes Position Slide Slide Load Width Thickness Size Length(L1) Travel(L) bearing 10’’/250mm 10’’/250mm 10’’/250mm 79lb/36kg 4.5’’/115.5mm 2.5’’/66mm 12’’/300mm 12’’/300mm 12’’/300mm 85lb/39kg 3.7’’/96mm 2.5’’/64mm 3.4’’/87.5mm 14’’/350mm 14’’/350mm 14’’/350mm 92lb/42kg 3.7’’/96mm 3.7’’/96mm 2.5’’/64mm...
