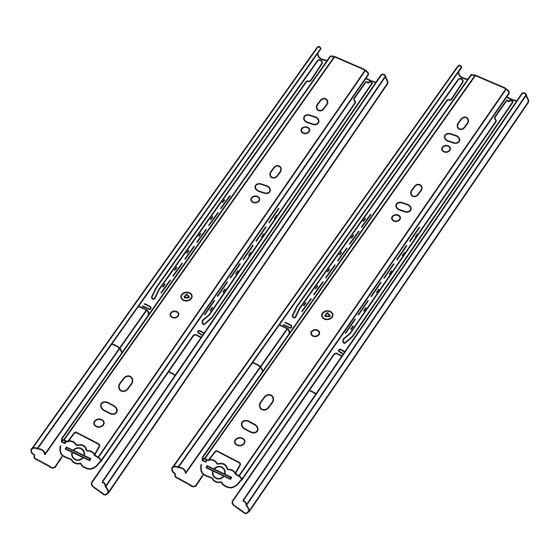

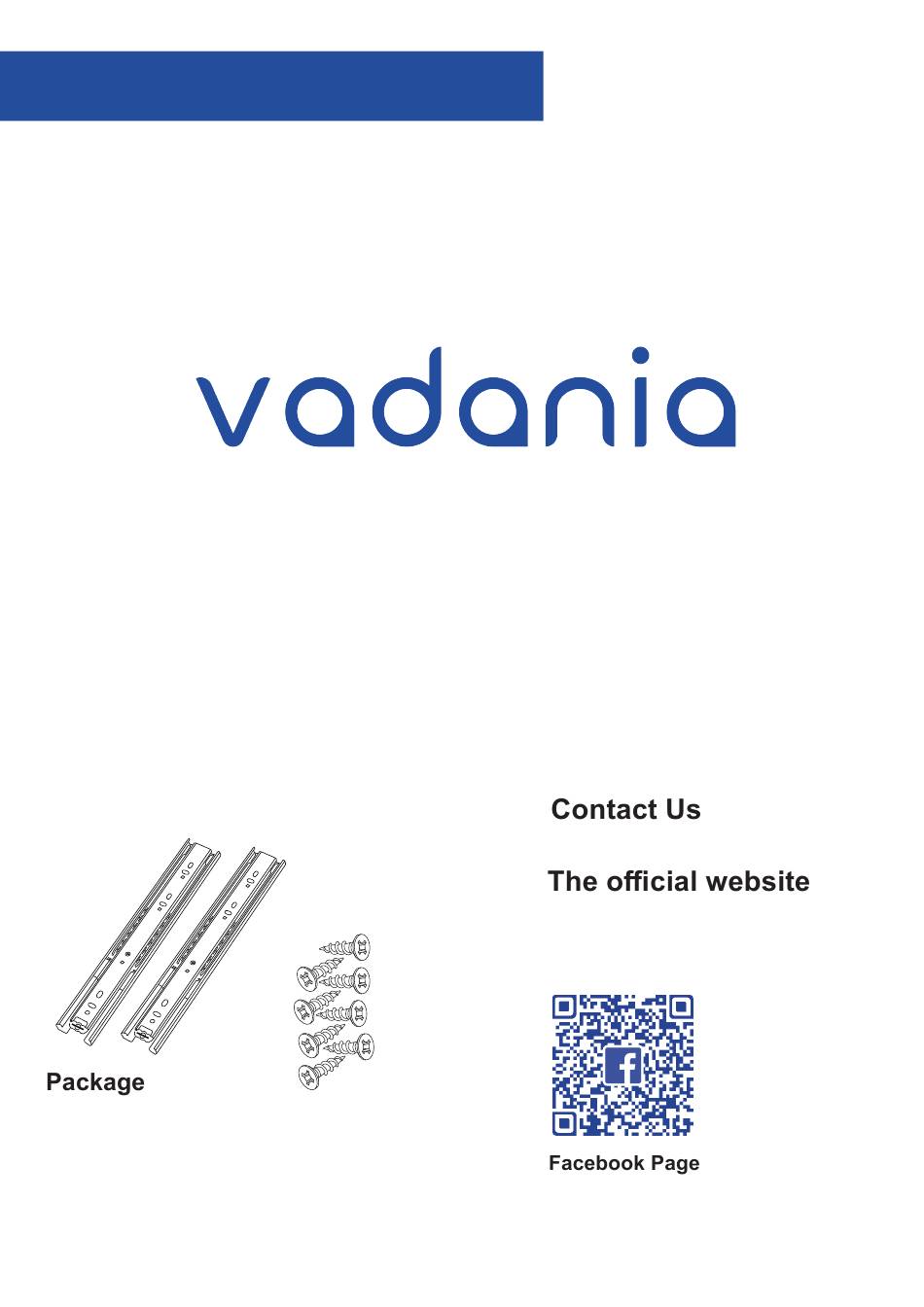

- Page 1 VA1245 DRAWER SLIDES MANUAL H a r d w a r e f o r y o u r l i f e https://vadania.com/ Email: info@vadania.com 1Pair of drawer slide 8 x Mount screws Page 1...
- Page 2 NAME：VADANIA Drawer Slides VA1245 MATERIAL: Cold-Rolled （Cold Rolled） Steel INSTALLATION METHOD: Side Mount MAXIMUM LOAD CAPACITY: 100lb / 45kg. MINI DEPTH OF CABINET: Drawer Length + 0.12in / 3mm SURFACE TREATMENT: Galvanized / Electrophoretic Black SLIDE STYLE: 3 Folds Full Extension, Side Mount, Separable PLATE THICKNESS: Outer Slider 0.04in(1.2mm) /...
-
Page 3: Product Features
Product Features Galvanizing Treatment Prevent oxidation and rust,keep clean and durable. Solid Ball Bearing Provides slient and friction-free motionwhen open drawer 3-Fold Slides Enable the slides to fully extend Page 3... -
Page 4: Installation Instruction
Installation Instruction Step1 Step2 Step3 Separate drawer and base portion before Make sure the slides are leveled during the Place the outer member ush with the front mounting with provided lever installation process edge of cabinet Step4 Step5 Step6 Mount the screws in the permanent mounting Adjust and level the inner member. -
Page 5: Size Table
Size Table Dimension Travel Length：L±3 42.9 15.83 15.5 25.4 Slides length 15.8 45±0.2 Screws Holes Position Slide Slide Load Width Thickness Size Length(L1) Travel(L) Bearing 8’’/200mm 7.9"/200mm 7.9"/200mm 66lb/30kg 5.5"/140mm 2.5’’/64mm 10’’/250mm 9.8"/250mm 9.4"/239mm 79lb/36kg 2.5"/64mm 5"/126mm 3.4"/86mm 85lb/39kg 5.0"/128mm 4.4"/112mm 12’’/300mm 11.8"/300mm...
