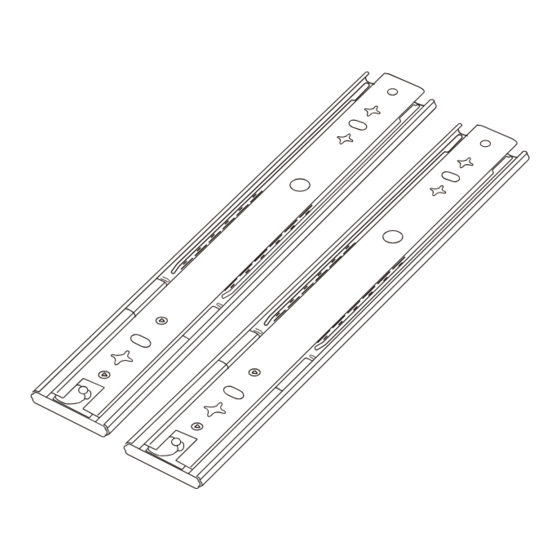

- Page 1 VK2053 Heavy Duty Soft Close Drawer Slides Manual H a r d w a r e f o r y o u r l i f e https://vadania.com/ Email: info@vadania.com Package 1 Pair of drawer slide Attention: The mounting brackets and screws are not included.
- Page 2 NAME：VADANIA Heavy Duty Soft Close Drawer Slides VK2053 MATERIAL: Cold-Rolled Steel INSTALLATION METHOD: Side Mount MAXIMUM LOAD CAPACITY: 265Lbs / 120KG MINI DEPTH OF CABINET: Drawer Length + 0.12in / 3mm SLIDE STYLE: Soft Close, 3 Folds Full Extension, Separable, Heavy duty PLATE THICKNESS: Outer slider 0.08”(2mm) / Middle Slider 0.08”(2mm)
- Page 3 Heavy Duty Soft Close Drawer Slides Stronger Solid Ball Bearing 6.5mm Steel Balls. Sliding smoothly and gently under full load. Galvanizing Treatment 3-Fold Slides Prevent oxidation and rust, Enable the slides to fully extend keep clean and durable Double Spring Design Makes it easier to pull back and smoother than single spring when bearing load.
-
Page 4: Installation Instruction
Installation Instruction Step3 Step1 Step2 Place the outer member ush with the front Separate drawer and base portion before Make sure the slides are leveled during the edge of cabinet mounting with provided lever installation process Step4 Step5 Step6 Mount the screws in the permanent mounting Adjust and level the inner member. -
Page 5: Size Table
Size Table Dimension Travel Length：L±2 Slides length 53±0.5 Inner screws Outter screws Screws Holes Position Slide Slide Width Thickness Size Length(L1) Travel(L) 11.4"(290mm) 12"(300mm) 12"(300mm) 8.8’’/224mm 5’’/128mm 14"(350mm) 14"(350mm) 13.5"(345mm) 10’’/256mm 6.2’’/160mm 16"(400mm) 16"(400mm) 15.9"(405mm) 5’’/128mm 8.8’’/224mm 6.2’’/160mm 18"(450mm) 18"(450mm) 17.9"(455mm) 6.2’’/160mm 10’’/256mm...
