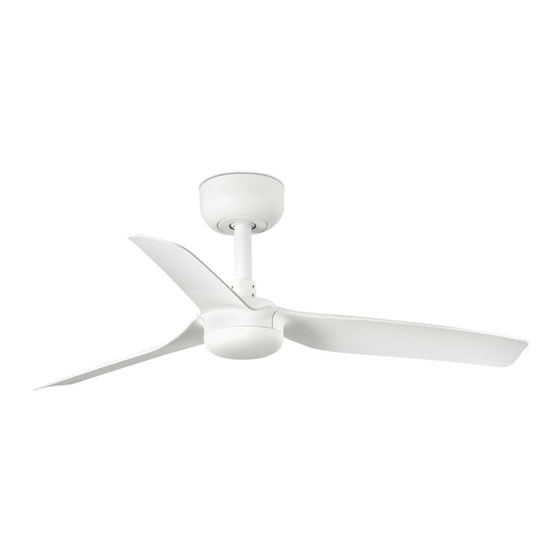

  • Page 1 33820WP-110 33821WP-110 33823WP-110 33822WP-110...

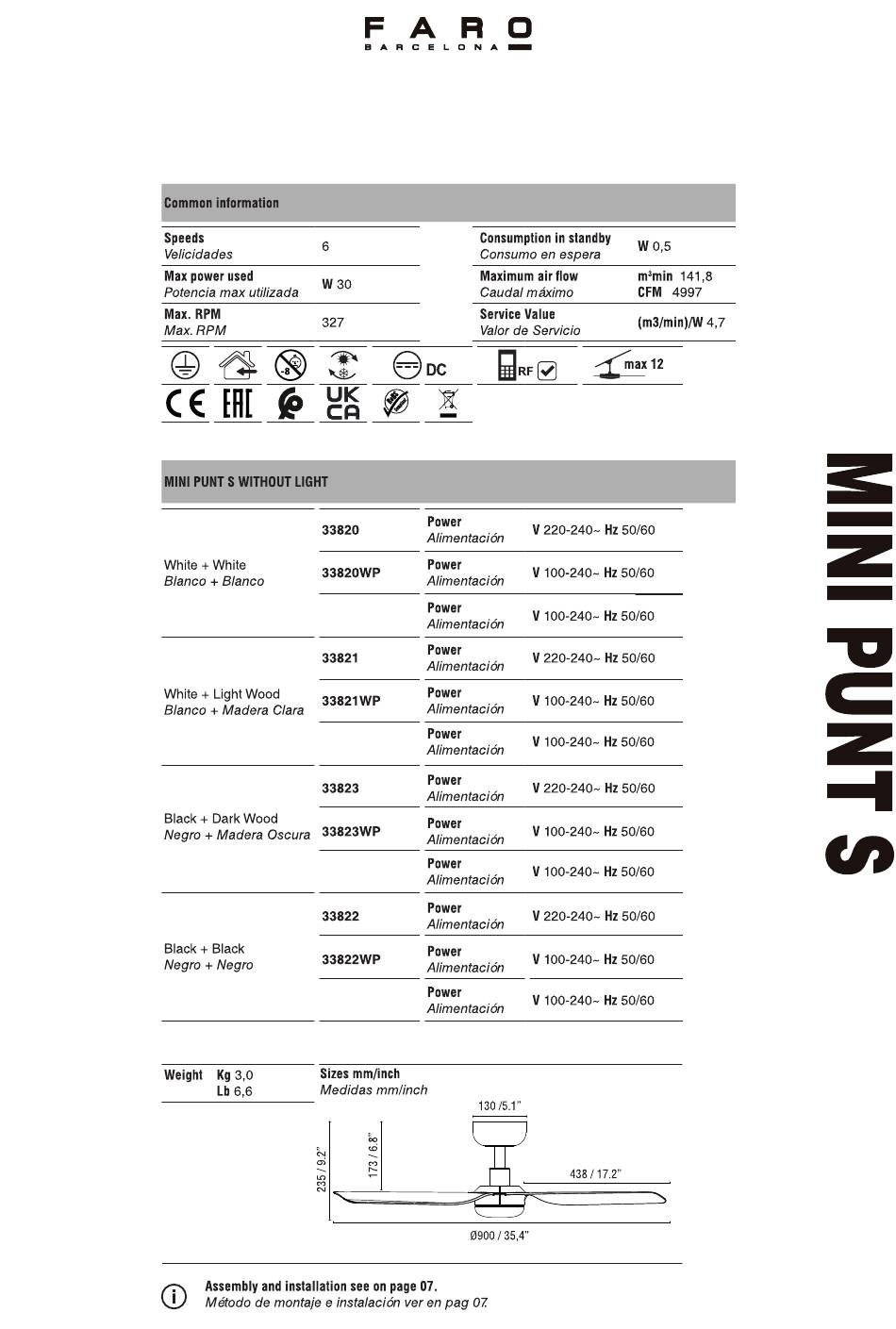

  • Page 17 Common information Speeds Consumption in standby W 0,5 Velicidades Consumo en espera Max power used Maximum air flow min 141 W 35 Potencia max utilizada Caudal máximo CFM 4980 Max. RPM Service Value (m3/min)/W 4,7 Max. RPM Valor de Servicio MINI PUNT TUB S WITHOUT LIGHT Power 33832...
  • Page 18 MINI PUNT TUB S WITH LIGHT 33832-1TW V 220-240~ Hz 50/60 White + White Power Blanco + Blanco Alimentación 33832WP-1TW V 100-240~ Hz 50/60 33833-1TW V 220-240~ Hz 50/60 White + Light Wood Power Blanco + Madera Clara Alimentación 33833WP-1TW V 100-240~ Hz 50/60 33834-1TW V 220-240~ Hz 50/60...
  • Page 19 Faro Barcelona! CATALÀ Felicitats per la compra del seu nou ventilador Faro Barcelona que li proporcionarà, disseny, qualitat i confort durant molts anys. Estem orgullosos del nostre treball i apreciem l’oportunitat de submi- Gratulujeme vám k zakoupení...
  • Page 20 ENGLISH This is why we reduce paper consumption. Please refer to the safety, maintenance and warranty ins- tructions at www.faro.es. If you cannot access it, call us at +34 937 723 965 or write to export@faro.es. ESPAÑOL Por eso reducimos el consumo de papel. Puedes consultar las instrucciones de seguridad, mantenimiento y ga- rantía en www.faro.es.
  • Page 21 Schrauben fest anzuziehen und alle Verbindungen korrekt herzustellen. NEDERLANDS De gebruikshandleiding bevat de volledige instructies voor de installatie en de veilige bediening van uw ventilator. Vergeet niet om alle schroeven stevig vast te draaien, en alle verbinding correct aan te sluiten. FARO BARCELONA...
  • Page 22 WARNINGS Locations 17-28m2 <13m2 13-17m2 >28m2 ≤Ø107cm Ø107-132cm ≤Ø165cm Ø132-165cm Security min 0,6m / 23,62” S= 4 x Kg of ceiling fan The support must support at least 4 times the weight of the fan. El soporte debe aguantar como mínimo 4 veces el peso del ventilador. + info www.faro.es +34 918 315 425...
  • Page 23 PARTS KI T ON/OFF Only for ceiling fans with light kit FARO BARCELONA...
  • Page 24 x 3 Blades Insert Mini Punt Tub S Ø900...
  • Page 25 L marrón, marró, brown, marron, marrone, cas- N azul, blau, blue, bleu, blu, azul, blau, blauw, amarillo-verde, groc-verd, yellow-green, jaune-vert, giallo-verde, verde-amarelo, gelb-grün, 07.1 07.2 Whithout light kit Whithout light kit FARO BARCELONA...
  • Page 26 Whith light kit Whith light kit Mini Punt Tub S Ø900...
  • Page 27: Remote Control

    8- Modo férias: Acende e apaga a luz do ventilador por 5 minutos a kit de llum i accessoris. cada 2 ou 3 horas. 9- “D” Dim está LIGADO. “O” Dim está DESLIGADO. Para kit de luz sem dimerização, ventila- dores de teto sem kit de luz e acessórios. FARO BARCELONA...
  • Page 28 REMOTE CONTROL DEUSTCH 1- Schalten Sie den Lüfter aus. ventilátoru na 5 minut. 2- Umgekehrte Winter-Sommer-Funktion. 9- “D“ Dim je zapnuto. 3- Geschwindigkeiten: 1 (die niedrigste) bis 6 (die höchste) 4- Breeze-Funktion: Die Lüftergeschwindigkeit ändert sich automatisch durch die sechs Geschwindigkeiten. 5- Regulierung der Lichtintensität.
  • Page 29 60” 20” Press 5” NOTE: repeat for revert the status On, Off, Dimmer Beeeeep!! 60” 20” Press 5” NOTE: repeat for revert the status CONFIRMATION ACTION SOUND Beeeeep!! 60” 20” Press 5” NOTE: repeat for revert the status FARO BARCELONA...
  • Page 30 Except (on/off fan) & (on/off light) keys Press 5” Beeeeep!! NOTE: repeat for revert the status when it doen’t work 60” 30” Press Beeeeep!! 5” 60” 30” 5” Press Beeeeep!! NOTE: repeat for revert the status Mini Punt Tub S Ø900...
  • Page 31 Steps 01 to 05 (see ** above) with Ceiling fan Steps 01 to 05 (see ** above) with Ceiling fan Only for SMART FANS (WP) Install the App and follow the steps. Instala la aplicación y sigue los pasos. FARO BARCELONA...
  • Page 32 When the luminaire reaches its end of life, take it to the nearest clean point. Recicle la luminaria en el punto verde cuando ésta llegue al final de su vida útil. v. 04/2024...
