Arm Type Blood Pressure Monitor
Model:
INSTRUCTION MANUAL
PLEASE READ THIS INSTRUCTION MANUAL COMPLETELY
BEFORE OPERATING THIS UNIT
EN
BPM824-L0
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan, China
China, AViTA(WUJIANG)
Importer
Distributor
RoHS REACH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avita BPM824-L0
Summary of Contents for Avita BPM824-L0
- Page 1 Arm Type Blood Pressure Monitor Model: BPM824-L0 INSTRUCTION MANUAL PLEASE READ THIS INSTRUCTION MANUAL COMPLETELY BEFORE OPERATING THIS UNIT RoHS REACH MDSS GmbH Schiffgraben 41 30175 Hannover Germany AViTA Corporation 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan, China...
-
Page 2: Table Of Contents
Contents Intended Use........................1 Type of Use/ Reuse ......................1 Intended User ........................1 Important Information before Use ................3 Product Identification ..................... 6 Description of LCD Display ................... 7 Battery Installation ......................8 Setting the Date and Time .................... 9 Placement of the Pressure Sleeve................ -
Page 3: Intended Use
Intended Use The product automatically measures human being‟s Systolic, Diastolic blood pressure and pulse rate by oscillometric method. The measurement results are displayed on the LCD. Measurement position is at human being‟s upper arm. The intended use of this over-the-counter device is for adults with upper arm circumference ranging from 220 mm to 420 mm (Approx.8.7 ~ 16.5 inches) and for home use. - Page 4 CAUTION: • Beware of blood flow interference and resulting harmful injury to the patient caused by continuous cuff pressure. • While using monitoring ME equipment and blood pressure monitor simultaneously being used on the same limb, pressurization of the cuff may cause monitoring ME equipment temporarily dysfunction. •...
-
Page 5: Important Information Before Use
• Do not use the cuff on people who have undergone a mastectomy. • Do not apply the cuff over a wound, as this can cause further injury. • Do not apply the cuff other then the original manufacturer provided. •... - Page 6 For Customer Service, the blood pressure monitor is calibrated when manufactured; it is recommended that the accuracy should be maintained and calibrated by manufacture triennially (every 3 years). To obtain the service please contact AViTA Corp. for the address of the...
- Page 7 repair location. Enclose with the Proof of Purchase. Include $10.00 USD for the return shipping and handling. Accompany with a letter, with your name, address, phone number, and description of the specific problem or routine check-up. Pack the device carefully with bubble wraps (if there is) to prevent damages cause during transit.
-
Page 8: Product Identification

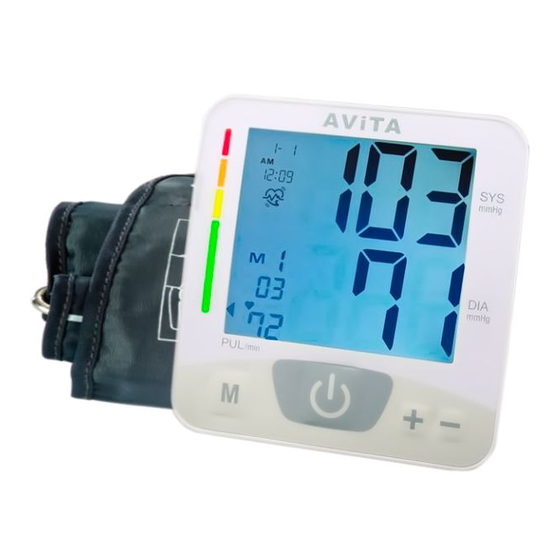

Product Identification Air socket WHO Indicator Memory button ( M key) Start/Stop button (Power key) Function button +/- (+/- key) Display Cuff Cuff connector Cuff tube... -
Page 9: Description Of Lcd Display
Description of LCD Display Low battery indicator WHO indicator Date & Time Irregular Heartbeat Symbol Memory Symbol Memory Set Heartbeat Symbol Pulse rate Release air Systolic Pressure Diastolic Pressure... -
Page 10: Battery Installation
Battery Installation Low battery warning: It is necessary to replace the batteries when the Low Battery symbol “ ” appears on the display, or when the display does not turn on after the POWER key is pressed. Replacing the Battery:: 1. -
Page 11: Setting The Date And Time
Setting the Date and Time It is necessary to set the date and time for the unit every time batteries are initially installed or replaced. To set the date and time, proceed as follows: • While in power off mode, press and hold the “+” key for at least 3 seconds to enter Date and Time setting procedure and the Year value will begin to flash. -
Page 12: Placement Of The Pressure Sleeve
Placement of the Pressure Sleeve It is important to avoid smoking, eating, taking medication, alcohol consumption or physical activity 30 minutes prior to taking a reading. If for any reason you are unable to or should not use your left arm, please modify the instructions for cuff application to your right arm. - Page 13 6. Insert your left arm into the created cuff cylinder. 7. The bottom edge of the cuff should be positioned approximately one inch above the elbow joint. 8. Reaching underneath your left arm with your right hand, pull the end of the cuff towards your body to tighten the cuff.
-
Page 14: Measurement Of Pulse Rate And Blood Pressure
Measurement of Pulse Rate and Blood Pressure To set the user and memory zone, proceed as follows: While in power off mode, press the “+” key or “-” key to select user. Confirm your selection with the Power key to turn the power on and start to measure your blood pressure. - Page 15 The unit will automatically shut-off approximately 2 minutes. Note: 1. Users are recommended to use BPM824-L0 daily at a fixed time, frequency of usage from 1 to 3 times can be suggested from physician or doctor‟s advice. 2. Base on individual body condition the typical operation time takes...
-
Page 16: Hypertension Indicator
Hypertension Indicator This unit features our unique Hypertension Indicator. The World Health Organization has established globally accepted standards for the assessment of high or low blood pressure readings. The below chart should be considered only as a guideline, always consult with your physician or health care professional to interpret your individual results. -
Page 17: Memory Function
INPORTANT INFORMATION: This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your blood pressure monitor. - Page 18 When the number of readings exceeds 100, the oldest data will be replaced with the new record. Press the Power key to turn the unit off at any time when you check the stored measurements Clearing Measurements from Memory: From the memory mode, press and hold down the M key until the display shows CLr.
-
Page 19: Error Codes
Error Codes Err Code Meaning Corrective Action No pulse or detect Take off heavy clothes and Err 00 pulses not enough. retry again. The cuff is not fastened correctly, The Arm cuff is not fastened cuff pressure leakage properly. Re- apply the cuff, Err 01 or inflation too low or and take a measurement... -
Page 20: Troubleshooting
Troubleshooting Problem Probable Cause Recommended Action Nothing appears in Batteries are drained. Replace all batteries with the display even new ones. when the power is Battery are not correctly Reinsert batteries in the turned on. aligned with terminals. correct position. Low Battery Batteries are drained. -
Page 21: Cleaning And Disinfecting
Cleaning and Disinfecting • Only use a soft, damp cloth to clean the monitor. Please do not use thinner, alcohol, detergents or solvents. • The cuff can be cleaned carefully using a slightly damp cloth and mild soap solution. Do not completely immerse the cuff in water. •... -
Page 22: Technical Specification
Technical Specification • Measuring range : Blood Pressure : 40~255 mmHg Pulse Rate : 40~199 beats/min • Calibration Accuracy: Blood Pressure : ± 3 mmHg Pulse rate : ± 4% of reading • Operating environment : 10°C~40°C 15% to 85% relative humidity (non-condensing) 700-1060 hPa ambient pressure •... -
Page 23: Emc Tables
EMC Tables BPM824-L0 is intended for use in the electromagnetic environment specified below. The customer or the user of BPM824-L0 must make sure that it is used in such an environment. Guidance and manufacturer‟s declaration - Electromagnetic emissions CISPR 11... - Page 24 RF communications equipment (transmitters) and the BPM824-L0 can be requested from supplier using the contact information provided in this manual. However, it is advisable to keep the equipment at an adequate distance of, at least, 0.5 m...
-
Page 25: Explanation Of Symbols
Explanation of Symbols Symbol Definition The CE marking with the Registration Number of the Notified Body. This denotes the compliance of Regulation (EU) 2017/745 Medical Device Manufacturer Authorized representative in the European Community Date of manufacture (YYYY-MM-DD or YYYY-MM) Batch code (YYMMWWWW) Serial number (YYMWWWXXXXX) - Page 26 Humidity limitation Atmospheric pressure limitation Caution Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS Directive RoHS 2011/65/EU.
- Page 27 You are legally required to dispose of the batteries. Importer Distributor Model Number Country of Manufacturer Unique Device Identifier Keep away from sunlight Electronic IFU available at http://www.avita.com.tw BPM824-L0P-22620AV 2022-12-22...
