- Page 1 AUX-MADI-COAX-DUAL 64x64@96k Dual-Link MADI Extension Card for FLX devices User's Manual...
-
Page 2: Table Of Contents
User's Manual Table of Contents CONNECTORS.....................3 DESCRIPTION......................3 2.1. Box Contents....................3 INSTALLATION....................3 3.1. Opening the flexiverter.................3 3.2. Flexiverter Inside View.................4 3.3. Installing the card..................4 DIP SETTINGS.....................5 SELF-TEST......................5 SPECIFICATIONS....................6 APPENDIX......................6 7.1. Available AUX cards..................6 7.2. Available FLX devices..................7 7.3. Warranty....................7 7.4. Manufacturer contact...................7 7.5. -
Page 3: Connectors

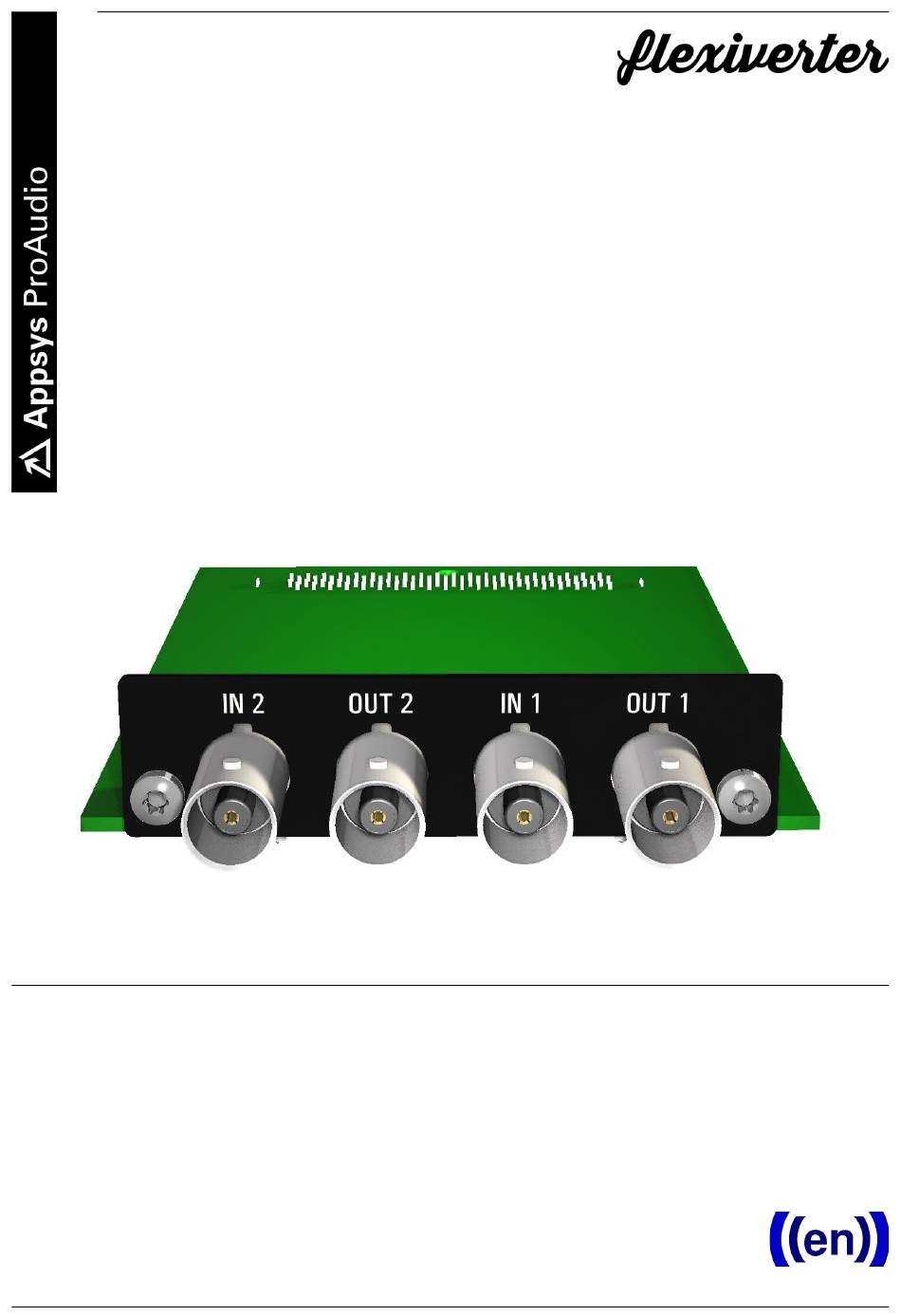

AUX-MADI-COAX-DUAL CONNECTORS ➊ MADI coaxial input/output Link 1 (channels 1-64@48k / 1-32@96k / 1-16@192k) ➋ MADI coaxial input/output Link 2 (channels 33-64@96k / 17-32@192k) DESCRIPTION The AUX-MADI-COAX card provides 64x64 channels at 96k, or 32x32ch at 192k of MADI coaxial via MADI dual link . -
Page 4: Flexiverter Inside View
User's Manual Remove the four top screws and the top cover by pulling it upwards: 3.2. Flexiverter Inside View ➊ Screws for AUX cover plate ➋ AUX card connector 3.3. Installing the card ➊ Remove the screws holding the cover plate, and the blank cover plate ... -
Page 5: Dip Settings
AUX-MADI-COAX-DUAL DIP SETTINGS The behavior of the card can be controlled by DIP switches 4..6 on the FLX device. Changing the DIP settings will come immediately into effect. AUX-MADI-COAX 96k frame* 3 64ch output* 3 ▀ ▀ ▀ AUX-MADI-COAX-DUAL 5 6 48k frame 3 57ch (use for DiGiCo stagebox ▃... -
Page 6: Specifications
User's Manual SPECIFICATIONS Parameter Value Dimensions 118x80mm (WxH) Weight Operating temperature 0..+55°C, non-condensing Storage temperature -40..+85°C, non-condensing Cable lengths Max. 70m. Use only 75Ω impedance coaxial cable Channel count 64x64 @ 48kHz (56/57ch modes can be configured) NOTE: Dual-Link 128x128 @ 48kHz is not yet supported by any FLX firmware. -
Page 7: Available Flx Devices
* Not covered by the warranty are any damages resulting out of improper use, willful damage, normal wear-out (especially of the connectors) or connection with incompatible devices. 7.4. Manufacturer contact Appsys ProAudio www.appsys.ch Rolf Eichenseher info@appsys.ch Bullingerstr. 63 / BK241 Phone: +41 43 537 28 51 CH-8004 Zürich... -
Page 8: About This Document
About this document All trademarks mentioned in this document are property of the respective owners. All information provided here is subject to change without prior notice. Document Revision: 1 · 2025-02-25 Copyright © 2025 Appsys ProAudio · Printed in Germany IDENT 9.00.17476.00...
