Office Star Products WorkSmart NAP97 Assembly Instructions

••work smart
STEP 1
STEP3
Remove all the parts from carton, separate them into part numbers
indicated on the list and make sure part quantities are correct.
STE P 1 I n sert three Wooden Dowels ( 9) into Chair Back (1 ) . Attach Seat Frame (2) to
_
Chair Back (1) c!nd secur� using two Large Flat Washers (8) , and two Short Bolts (5) .
FULLY TIGHTEN BOLTS USING ALLEN WRENCH (12).
STEP 2 Secure Arms (4L & 4R) to Seat Frame (2) using two Large Flat Washer (8) ,
and two Long Bolt (6) for each Arm (4) .
S ! EP 3 Place Seat Cushion (3) onto Seat Frame (2) , secure Seat Cushion (3) to Seat Frame (2) using
nine Wood Screws (10) . DO NOT FULLY TIGHTEN SCREWS.
STEP 4 Turn chair to the upright position, secure Arms (4L & 4R) to Chair Back (1) using one
Small Flat Washer (7) and one Short Bolt (5) for each Arm (4) .
ALIGN & FULLY TIGHTEN ALL BOLTS
Covers
(11) for each Arm (4) .
ATTENTION: MAKE SURE ALL BOLTS & SCREWS ARE FULLY TIGHTENED BEFORE
USING CHAIR.
®
8,5
DO NOT FULLY TIGHTEN BOLTS.
APPLY FIRM PRESSURE TO
& SCREWS. Cover holes in Arms (4L & 4R) using one
NAP97

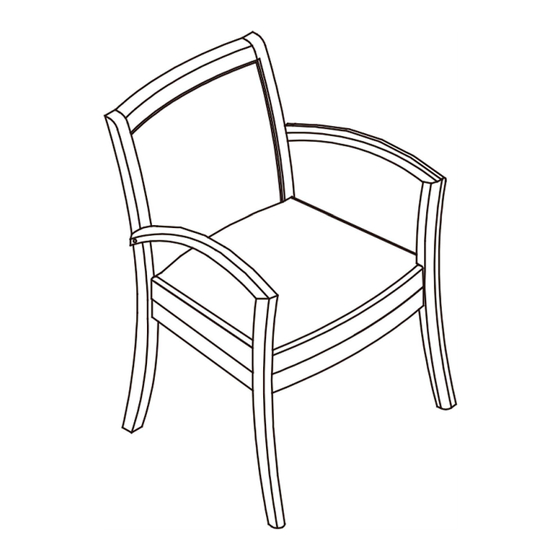

WOOD GUEST CHAIR
ASSEMBLY INSTRUCTIONS
STEP 2
STEP4
PART
1. Chair Back .......................... 1
2. Seat Frame ......................... 1
3.
Seat Cushion ........................ 1
4. Arms (4L & 4R) ...................... 2
5. Short Bolt(M8x40mm) ................. 4
6. Long Bolt (M8x60mm) ................ .4
7. Small Flat Washer .................... 2
8. Large Flat Washer .................... 6
9. Wooden Dowel ...................... 3
10. Wood Screw (4x50mm) ............... 9
11. Covers .......................... 2
12. Allen Wrend (6mm) ................. 1
Phillips Screwdriver also needed
for assembly (not provided)
© Office Star Products December 2023
QTY
