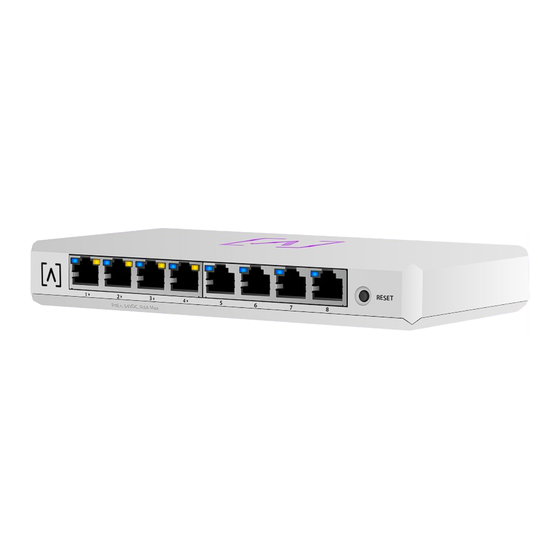

ALTA LABS S8-POE8 Quick Start Manual
  1. Manuals
  2. Brands
  3. ALTA LABS Manuals
  4. Switch
  5. S8-POE8
  6. Quick start manual

ALTA LABS S8-POE8 Quick Start Manual

Hide thumbs

Advertisement

Table of Contents

QUICK START GUIDE
1
2
3
4
5
6
7
8
MODEL: S8-POE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S8-POE8 and is the answer not in the manual?

Questions and answers

Related Manuals for ALTA LABS S8-POE8

Summary of Contents for ALTA LABS S8-POE8

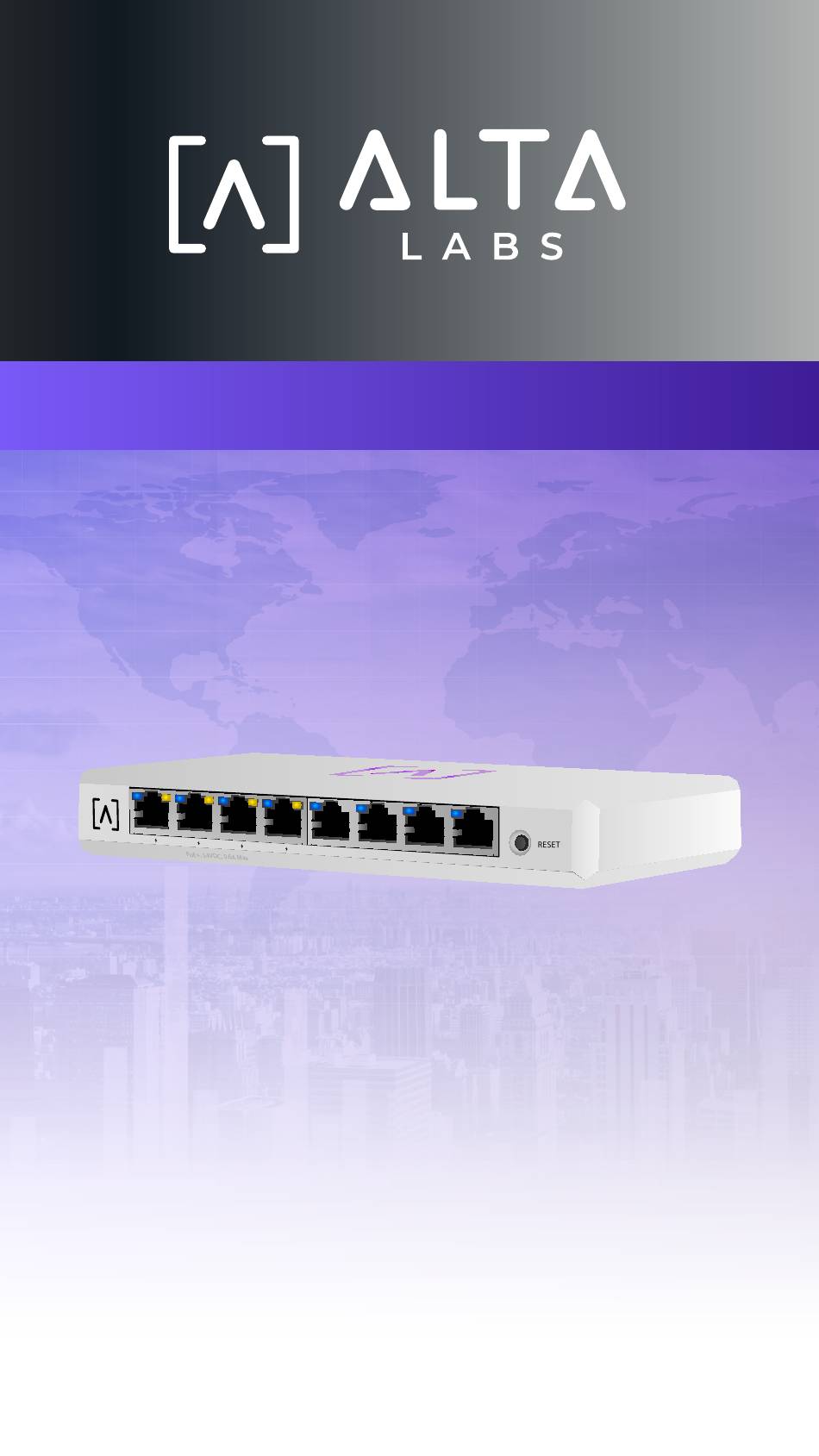

  • Page 1 QUICK START GUIDE MODEL: S8-POE...

  • Page 2: Before You Begin

    Before You Begin Create your free Alta account to manage your Alta devices. Visit manage.alta.inc or download the Alta Networks app. Corp Office Columns AP6-main Devices 50.5 kb/s 38.1 Mb/s AP6-main 192.168.1.17 bcb923123426 1.97 Mb/s 0 b/s 391 kb/s AP6-lobby 192.168.1.22 bcb923774886 119 kb/s...

  • Page 3: Package Contents

    Package Contents RESET PoE+, 54VDC, 0.6A Max S8-POE Mounting Bracket Mounting Screws Anchors (M3x20mm, Qty. 2) (Qty. 2) Power Supply Note: We recommend using the included mounting hardware for product installation. Installation Requirements • Ethernet cabling (CAT 5 or above) •...

  • Page 4: Hardware Overview

    Hardware Overview The Alta Labs LED on top of the switch flashes as the unit is powered up. Once fully booted, the LED will remain lit unless turned off in the UI. The LED color can also be changed in the management interface.
  • Page 5 Back Input : 1.3A 5 4 V 1 . 3 A I n p u t : Be sure to use the included power cord to connect power. Front RESET PoE+, 54VDC, 0.6A Max P o E + , 5 4 V D C , 0 . 6 A M a x R E S E T Reset Button Press down for 10 seconds until the LED begins flashing to reset the switch to...
  • Page 6 Ports and LEDs RESET PoE+, 54VDC, 0.6A Max P o E + , 5 4 V D C , 0 . 6 A M a x R E S E T Ports 1-4 support 802.3at PoE+ with up to 30W per port and a PoE budget of 60 Watts.
  • Page 7 Hardware Installation Mounting On A Wall 1. Locate the template included with the Quick Start Guide and Safety document. Community Forum forum. alta.inc Technical Support S8-PoE Wall-Mount Template Template...
  • Page 8 2. Position the template in the desired location and use a pencil to mark the holes. S8-PoE Wall-Mount Template 60 mm Vertical Mount Horizontal Mount 3. Secure the Mounting Bracket to the wall using the Mounting Screws and a Phillips screwdriver.
  • Page 9 4. Align the switch with the Mounting Bracket. Note: the Alta Labs A logo should be facing the same position on the mount and the switch. Slide the notches over the tabs to lock the switch into place. 5. Connect the Power Supply to the switch and...

  • Page 10: Connecting Devices

    Connecting Devices Connect devices that need Power over Ethernet to any of the first four ports. The ports are autosensing. Devices that do not require power can be connected to any port. Set Up Your Device Follow the instructions in the Alta app or management interface to set up your switch.
  • Page 11 S8-POE Specifications Mechanical Dimensions 25.7 x 91 x 180 mm (1 x 3.6 x 7.1") Weight .38 kg (.83 lbs) Material Type Injection Molded Plastic Material Finish Matte Color White Ports Interface ports (8) 10/100/1000 Mbps SFP/SFP+ None Switching Capacity 16 Gbps Non-blocking Throughput 8 Gbps Forwarding Rate...
  • Page 12 Hardware Energy Efficient Ethernet Management Factory reset button Bluetooth Yes, Setup Power Max Power Consumption 8 Watts w/o PoE Max Power Consumption 68 Watts Full PoE Universal AC, 100 - 240VAC Power Supply 50/60Hz External RJ45 Port Surge 12kV for ESD - contact, 25kV Protection for ESD - Air Environmental...
  • Page 13 Compliance Federal Communication Commission Interference Statement This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 14 FCC Radiation Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. CAN ICES-003(B) / NMB-003(B) This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).

  • Page 15: Community Forum

    Community Forum forum.alta.inc Technical Support help.alta.inc All specifications are subject to change without notice. Alta Labs products are sold with a limited warranty: alta.inc/warranty © 2023 Soundvision Technologies. All rights reserved. Alta Labs is a trademark of Soundvision Technologies.
