- Page 1 QUICK START GUIDE MODEL: Injector-POE+ SCAN FOR OTHER LANGUAGES...
-
Page 2: Package Contents
Package Contents Injector-POE+ Power Cord Note: Be sure to read all of the instructions before installation. Installation Requirements • 2 Ethernet cables (CAT 5 or above) • Phillips screwdriver for mounting • Drill and drill bit for mounting • Screws and anchors for mounting... -
Page 3: Hardware Overview

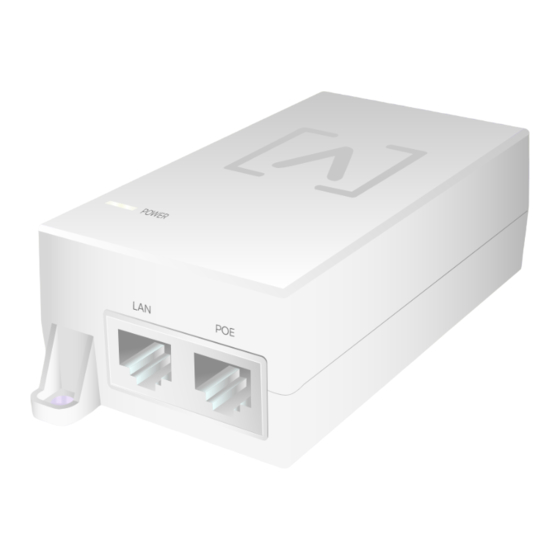

Hardware Overview Front LAN This port is used to connect to your wired network. You're not required to use this connection as you can use the powered AP in mesh mode. While this is an optional connection, it is highly recommended for optimal performance. - Page 4 Back POWER This port is where the included power cord connects. The other end is connected to a power source such as a power outlet or power strip. POWER POWER LED The LED will illuminate white when the Injector-POE+ is properly connected to a power source.
- Page 5 Connecting the Injector 1. Plug the power cord into the Injector-POE+ and the other end into a power strip or power outlet. 2. Plug an Ethernet cable from the POE port on the Injector-POE+ to the Ethernet port on your AP. 3.
-
Page 6: Specifications
Specifications Model: Injector-POE+ 4.5 x 2.1 x 1.3" Dimensions (113.6 x 53.5 x 33.5 mm) 0.3 lbs Weight (145 g) Network Interface Ethernet Ports (2) GbE RJ45 Port White Input Voltage 100V~240Vac AC Input Voltage 50~60Hz Frequency Range AC Input Current 0.7A(Max) Output Voltage Output Current... -
Page 7: Safety Notice
Declaration of Conformity Soundvision Technologies, dba Alta Labs, hereby declares that this device conforms with the essential requirements and provisions of Directives 2014/53/EU, 2014/30/EU and 2014/35/EU. To see the full EU declaration... - Page 8 Compliance Federal Communication Commission Interference Statement This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 9 (2) This device must accept any interference received, including interference that may cause undesired operation. This device is restricted to indoor use. Non-Modification Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 10 Community Forum forum.alta.inc Technical Support help.alta.inc All specifications are subject to change without notice. Alta Labs products are sold with a limited warranty: alta.inc/warranty © 2023 Soundvision Technologies. All rights reserved. Alta Labs is a trademark of Soundvision Technologies.
