Summary of Contents for Iridium LED WASH 1940Z IP

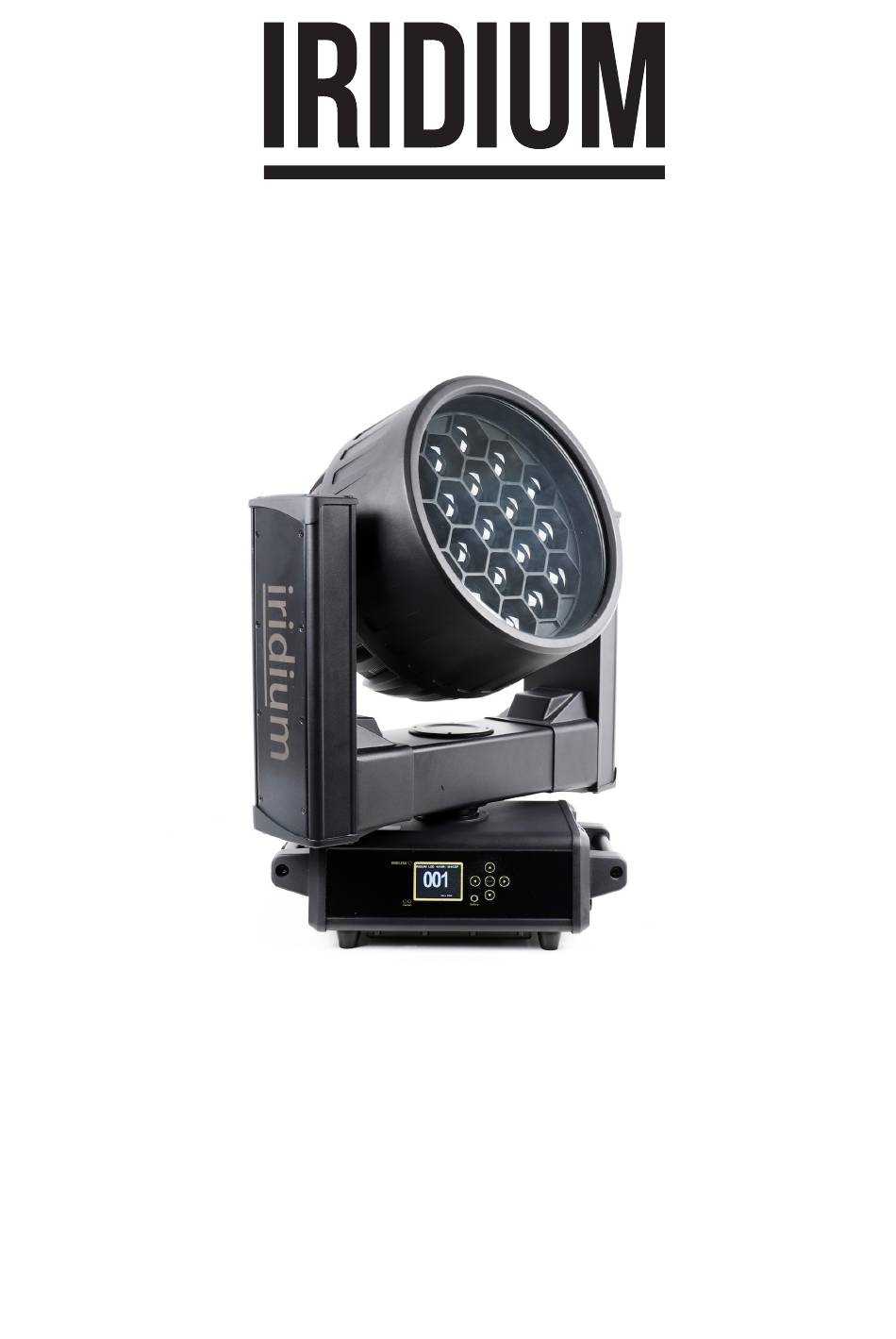

- Page 1 LED WASH 1940Z IP Art. No. : 108480...
-
Page 2: Table Of Contents
SUMMARY 1. Product introduction 2. Safety and maintenance Information 3. Installation 4. Control menu 5. DMX connection and DMX protocol 6. Unique Features 7. Dimensions Drawing 8. Technical specifications... -
Page 3: Product Introduction
1. Product Introduction: 1.1 Before unpack the fixture, pls make sure that the packing is in good condition, following items will be found in the box: • The fixture • This users guide • 3m DMX cable • 1.5m power cable with True 1 •... - Page 4 1.3. Description of the Device...
-
Page 5: Safety And Maintenance Information
2. Safety and maintenance Information 2.1 Safety Info... - Page 6 Maintenance 2.2. 2.2.1. Operation only allowed to qualified person, damages due to unprofessional operation or remove of any parts inside will not be considered in warranty service. There are no serviceable parts inside the device or package, service only leaves to authorized dealers. 2.2.2.
-
Page 7: Installation
3. Installation 3.1. The device could be either put on a solid and even Surface, or mounted upside down or sideways like left picture. 3.2. The mounting place must be sufficient stable and be able to support a weight of 10 times of the unit’s weight. - Page 8 4.2. Menu tree Default setting shadowed. mark with can be basic reloaded, be program reloaded, can be private reloaded.
-
Page 10: Dmx Connection And Dmx Protocol
5. DMX connection and DMX protocol 5.1. DMX addressing: 5.1.1. The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. For example, this device has four channel modes: 20/22/23/100, if we set the mode at standard 23 channels mode, and there are several models need to be independently controlled, we just simply address first fixture at 1, and second fixture at 24, third one at 47, etc. -
Page 13: Unique Features
6. Unique Features 6.1. RDM, stand for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as tempera- ture, power consumption, fan speed. Etc. Every single device has a unique RDM code before left factory to distinguish from each other, usually not suggest users change this code freely. -
Page 14: Dimensions Drawing
Dimensions Drawing 8. Technical specification 20/22/23/100... - Page 15 LED WASH 1940Z IP Art. No. : 108480 IMPORTEUR B&K LUMITEC ZI – 2 Rue Alfred Kastler – 67850 Herrlisheim – France www.bklumitec.com...
