SUMMARY 1. Product introduction 2. Safety and maintenance Information 3. Installation 4. Control menu 5. DMX connection and DMX protocol 6. Unique Features 7. Dimensions Drawing 8. Technical specifications...
1. Product Introduction: 1.1 Before unpack the fixture, pls make sure that the packing is in good condition, following items will be found in the box: • The fixture • This users guide • 3m DMX cable • 1.5m power cable with True 1 •...
Page 4

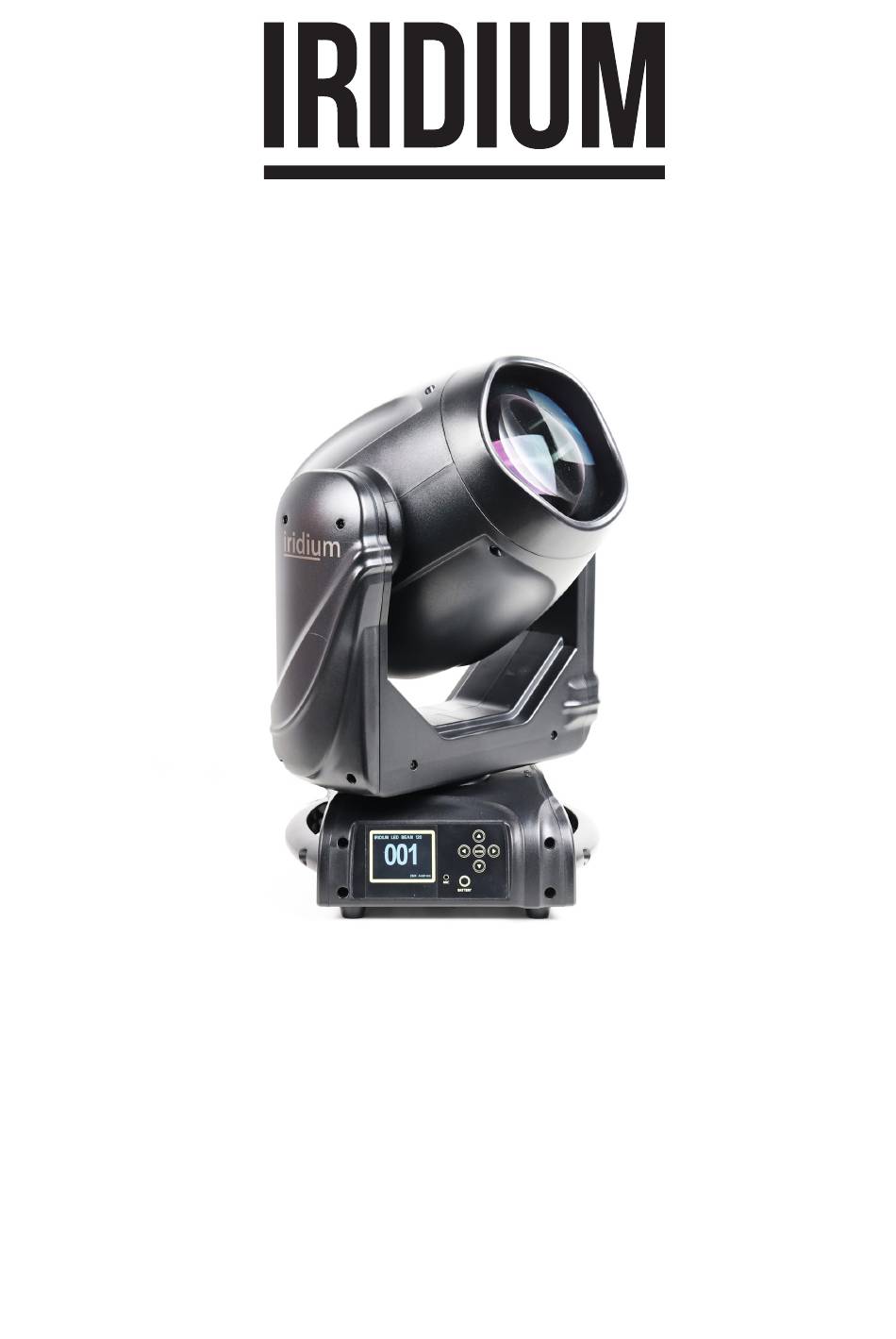

1.3 Description of the Device 1. Project lens 2. Head 3. Arm 4. Base 5. Display 6. Foot stand 7. Operation button 8. Handel 20. USB-C 22. True 1 out 23. True 1 in...
2. Safety and maintenance Information 2.1. Safety Info Before operate this unit, please carefully read this users guide and keep if needed in future. It’s necessary to respect following rules. The disposal of the device after lifecycle could damage the environment, need to take it to spe- cial company for recycling or return to authorized dealer.
Page 7
2.2. Maintenance 2.2.1. Operation only allowed to qualified person, damages due to unprofessional operation or remove of any parts inside will not be considered in warranty service. There are no serviceable parts inside the device or package, service only leaves to authorized dealers. 2.2.3.
3. Installation The device could be either put on a solid and even Surface, or mounted upside down or sideways like left picture. The mounting place must be sufficient stable and be able to support a weight of 10 times of the unit’s weight.
Page 9
CONNECT ADDRESS VALUE (1-512)(001) WDMX ON/OFF ON/OFF WDMX MODE TRANSMITTER/RECEIVER TX LINK ON/OFF TX UNLINK ON/OFF RX RESET ON/OFF WIRELESS DMX TO WDMX (TX) ON/OFF WDMX TO DMX (RX) ON/OFF IP ADDRESS ARTNET SETTINGS SUBNET UNIVERSE IP ADDRESS ETHERNET sACN SETTINGS SETTING UNIVERSE MERGE MODE...
Page 10
CONNECT ADDRESS VALUE (1-512)(001) BACKLIGHT ON/10S/20S/30S FLIP DISPLAY ON/OFF/AUTO SETUP SCREEN STATUS LED ON/OFF KEY LOCK ON/OFF TOTAL ( ONLY READ) FIXTURE HOURS PARTIAL (READ AND RESET) TOTAL ( ONLY READ) CURRENT HOURS PARTIAL (READ AND RESET) FIXTURE TIME TOTAL ( ONLY READ) LED HOURS PARTIAL...
CONNECT ADDRESS VALUE (1-512)(001) MANUAL CONTROL BASIC RELOAD ON/OFF PROGRAM RELOAD ON/OFF RELOAD Password DEFAULT FACTORY RELOAD ON/OFF TRANSFER SOFTWARE RDM PID CODE PASSWORD xxxHOURS LOCKING unlocking CODE PASSWORD ZOOM FOCUS GOBO 1 FOCUS FOCUS CALIBRATION … GOBO 8 FOCUS FOCUS GOBO 1 INDEX INDEX...
Page 12
5.1.4 Connection: use DMX cable with 3+5 pin XLR-plugs to connect the controller with the fixture or one fixture with another. 5.2 DMX chart Channel Name Function Min DMX Max DMX Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine XY Speed...
Page 13
Channel Name Function Min DMX Max DMX Indexed Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Position 9 Position 10 Position 11 Position 12 Position 13 Position 14 Position 15 Position 16 Position 17 Position 18 Position 19...
Page 14
Channel Name Function Min DMX Max DMX Position 16 to 18 (Slow To Fast) Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Position 9 Position 10 Position 11 Position 12 Position 13 Position 14 Position 15 Position 16...
Page 15
Channel Name Function Min DMX Max DMX Position 16 to 18 (Slow To Fast) Position 17 to 19 (Slow To Fast) Position 18 to 20 (Slow To Fast) Position 19 to 21 (Slow To Fast) Position 20 to 22 ( Slow To Fast) Position 21 to 23 (Slow To Fast) Position 22 to 24 (Slow To Fast) Position 23 to 25 (Slow To Fast)
Page 16
Channel Name Function Min DMX Max DMX Gobo 10 (From Slow To Fast) Gobo 11 (From Slow To Fast) Gobo 12 (From Slow To Fast) Gobo 13 (From Slow To Fast) Gobo 14 (From Slow To Fast) Gobo 15 (From Slow To Fast) Gobo 16 (From Slow To Fast) Gobo 17 (From Slow To Fast) Gobo 18 (From Slow To Fast)
Channel Name Function Min DMX Max DMX Status Led Off Reset All Reset Pan/Tilt Reset Color Control Reset Gobo Reset Other Reserved FACTORY DEFAULT OF CONTROL FUNCTIONS 6. Unique Features RDM, stand for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as tempera- ture, power consumption, fan speed.
7. Dimensions Drawing 8. Technical specification Power supply 100-240 V AC, 50/60 Hz ~ Power consumption 172W 120w white led DMX channels 14/16 ch Beam angle 1° Luminous flux 2170lumen,150000lux@5m Fuse T 3.15 A, 250 V Device dimensions 332x309x480mm Net Weight 12.75KG...
Page 19
IMPORTER B&K LUMITEC ZI – 2 Rue Alfred Kastler – 67850 Herrlisheim – France www.bklumitec.com...
