GEOHOME I200-43 Assembly Instruction

PARTS LIST
NO COMPONENT
A TOP PANEL
B LEFT SIDE PANEL
C RIGHT SIDE PANEL
D BOTTOM PANEL
E LEG PANEL
F BACK PANEL
G DRAWER FACE PANEL
H DRAWER LEFT PANEL
I DRAWER RIGHT PANEL
J DRAWER BACK PANEL
K DRAWER BASE PANEL
STEP 1
2
C
MADE IN MALAYSIA
ASSEMBLY INSTRUCTION
Item No: I200-43

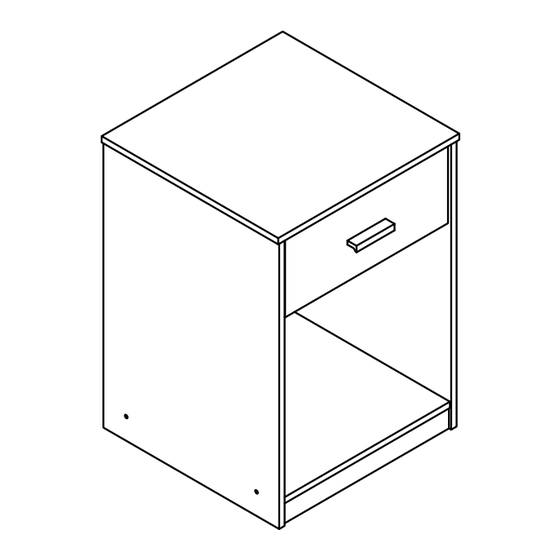

Description: NIGHTSTAND
IMPORTANT NOTE:
· Place all wooden parts on a clean and smooth surface such
as a rug or carpet to avoid the parts from being scratched.
· Check to be sure that you have all parts and hardware.
· Remove all wrapping materials, including staples & packing
straps before you start to assemble.
·
Do not tighten all screws/bolts until all completely
assembled.
· Keep all hardware parts out of reach of children!
· Tighten screws periodically! With the use of this product
bolts and screws may become loose over time!
· Don't attempt to modify parts!
QTY
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
B
5
6A
W / DRAWER
Each Item
NO
1 CAM- SCREW
2 CAM-LOCK
3 38MM C/B SCREW
4 25MM WOODEN DOWEL
5 12MM C/B SCREW
6 DRAWER SLIDE
7 DOOR HANDLE
8 3/4" PH TAPPING SCREW
9 NAIL LEG
10 NAIL
11 STICKER
G
1
H
I
1
HARDWARE LIST
DESCRIPTION
6A
6B
A
E
QTY
6 PCS
6 PCS
8 PCS
8 PCS
10 PCS
1 SET
1 PC
2 PCS
4 PCS
14 PCS
6 PCS
4
