GEOHOME Madden B118-25 Assembly Instructions

MODEL : B118-25 / B118-32
REVISION : C

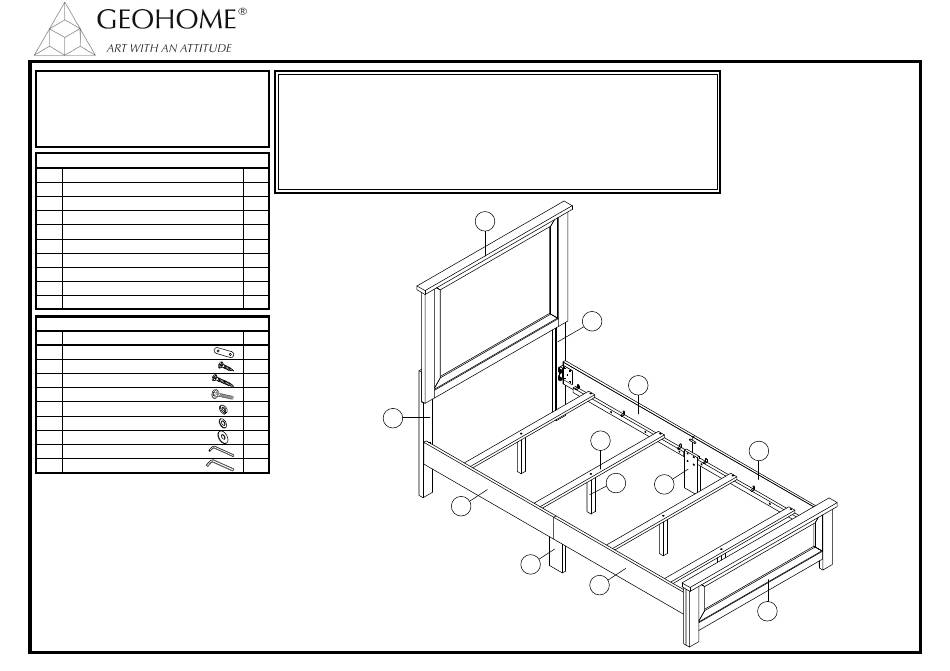

Component List

No Descriptions
A Headboard Panel
B Headboard Leg Right (R)
C Headboard Leg Left (L)
D Footboard
E Bed Slat
F Slat Support
G Side Rail (Left)
H Side Rail (Right)
I Side Rail Support

Hardware List

No Descriptions
1 I Bracket
2 CSK M4 x 16mm
3 CSK M4 x 32mm
4 JCBC Screw M6 x 30mm
5 Spring Washer Ø1/4"
6 Flat Washer Ø1/4" x 13mm
7 Flat Washer Ø1/4" x 20mm
8 L Key M4 x 65mm
9 L Key M5
I M P O R T A N T N O T E :
· Place all wooden parts on a clean and smooth surface such as a rug or
carpet to avoid the parts from being scratched.
· Check to be sure that you have all parts and hardware.
· Remove all wrapping materials, including staples & packing straps
before you start to assemble.
· Do not tighten all screws/bolts until all completely assembled.
· Keep all hardware parts out of reach of children !
· Tighten screws periodically ! With the use of this product bolts and
screws may become loose over time !
· Don't attempt to modify parts !
ASSEMBLY INSTRUCTIONS

ASSEMBLY TIPS :

1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast and easy assembly.
NOTES :
1. Mattress Twin 38 x 75 thickness 8 inches / Foundation 38 x 74 thickness 8 inches
2. Mattress Twin 38 x 75 thickness 10 inches / Foundation 38 x 74 thickness 6 inches
3. Mattress Full 54 x 75 thickness 8 inches / Foundation 54 x 75 thickness 8 inches.
Qty
4. Mattress Full 54 x 75 thickness 10 inches / Foundation 54 x 75 thickness 6 inches.
1
1
1
1
4
4
2
2
2
Qty
2
4
8
14
14
C
6
8
1
1
.
.
A
B
E
F
H
I
G
Page 1 of 5
Item No : B118-25 / B118-32
Description : 3/3 COMPLETE TWIN BED /
4/6 COMPLETE FULL BED
G
H
I
D
